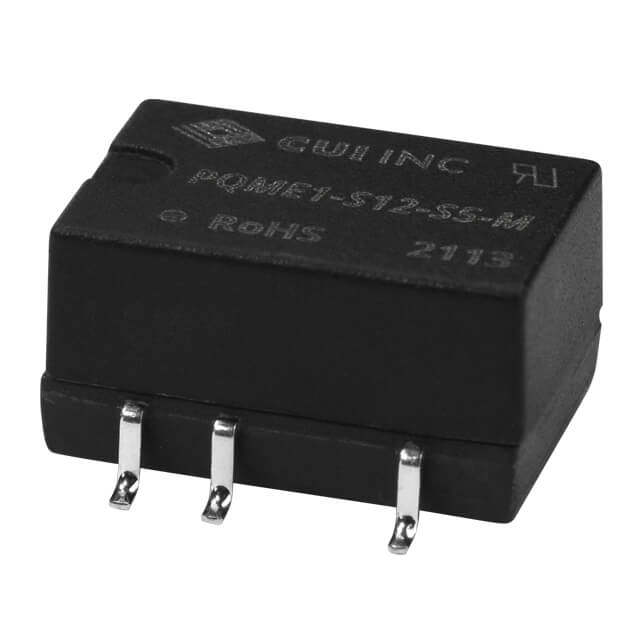

PQME1 Series

Manufacturer: CUI Inc.

Catalog

DC DC CONVERTER 5V 750MW

Part	Power (Watts)	Package / Case	Standard Number	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Type	Voltage - Output 1	Number of Outputs	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Isolation	Features	Approval Agency	Applications	Mounting Type	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]
CUI Inc. PQME1-S5-S5-M	0.75 W	8-SMD Module 5 Leads	55024 55032	-40 °C	85 °C	72 %	Isolated Module	5 V	1	7.3 mm	0.33 "	0.52 in	8.5 mm	0.29 in	13.2 mm	3000 V	SCP	EN	ITE (Commercial)	Surface Mount	150 mA	5.25 V	4.75 V
CUI Inc. PQME1-S5-S3-M-TR	660 mW	8-SMD Module 5 Leads	55024 55032	-40 °C	85 °C	68 %	Isolated Module	3.3 V	1	7.3 mm	0.33 "	0.52 in	8.5 mm	0.29 in	13.2 mm	3000 V	SCP	EN	ITE (Commercial)	Surface Mount	200 mA	5.25 V	4.75 V
CUI Inc. PQME1-S5-S12-M-TR	744 mW	8-SMD Module 5 Leads	55024 55032	-40 °C	85 °C	73 %	Isolated Module	12 V	1	7.3 mm	0.33 "	0.52 in	8.5 mm	0.29 in	13.2 mm	3000 V	SCP	EN	ITE (Commercial)	Surface Mount	62 mA	5.25 V	4.75 V
CUI Inc. PQME1-S5-S5-M-TR	0.75 W	8-SMD Module 5 Leads	55024 55032	-40 °C	85 °C	72 %	Isolated Module	5 V	1	7.3 mm	0.33 "	0.52 in	8.5 mm	0.29 in	13.2 mm	3000 V	SCP	EN	ITE (Commercial)	Surface Mount	150 mA	5.25 V	4.75 V
CUI Inc. PQME1-S5-S9-M	747 mW	8-SMD Module 5 Leads	55024 55032	-40 °C	85 °C	72 %	Isolated Module	9 V	1	7.3 mm	0.33 "	0.52 in	8.5 mm	0.29 in	13.2 mm	3000 V	SCP	EN	ITE (Commercial)	Surface Mount	83 mA	5.25 V	4.75 V
CUI Inc. PQME1-S5-S12-M	744 mW	8-SMD Module 5 Leads	55024 55032	-40 °C	85 °C	73 %	Isolated Module	12 V	1	7.3 mm	0.33 "	0.52 in	8.5 mm	0.29 in	13.2 mm	3000 V	SCP	EN	ITE (Commercial)	Surface Mount	62 mA	5.25 V	4.75 V
CUI Inc. PQME1-S5-S9-M-TR	747 mW	8-SMD Module 5 Leads	55024 55032	-40 °C	85 °C	72 %	Isolated Module	9 V	1	7.3 mm	0.33 "	0.52 in	8.5 mm	0.29 in	13.2 mm	3000 V	SCP	EN	ITE (Commercial)	Surface Mount	83 mA	5.25 V	4.75 V
CUI Inc. PQME1-S5-S15-M	0.75 W	8-SMD Module 5 Leads	55024 55032	-40 °C	85 °C	74 %	Isolated Module	15 V	1	7.3 mm	0.33 "	0.52 in	8.5 mm	0.29 in	13.2 mm	3000 V	SCP	EN	ITE (Commercial)	Surface Mount	50 mA	5.25 V	4.75 V
