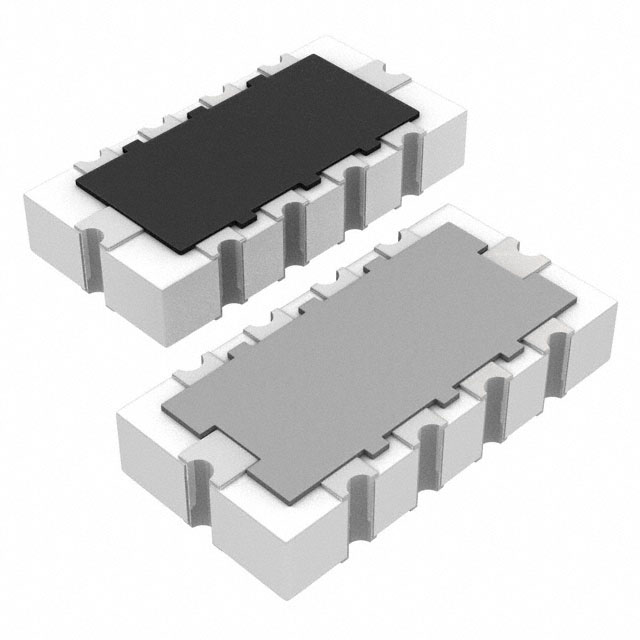

EZA-DT Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
FILTER RC(PI) 220 OHM/22PF SMD
| Part | ESD Protection | Values | Filter Order | Applications | Technology | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Number of Channels | Type | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Resistance - Channel (Ohms) | Package / Case | Voltage - Rated | Height [z] | Height [z] | Resistance - Channel (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | 22 pF 220 Ohms | 1st | Data Lines for Mobile Devices | RC (Pi) | -25 °C | 85 °C | Surface Mount | 4 | Low Pass | 0.063 in | 1.6 mm | 0.126 " | 3.2 mm | 220 Ohms | 1206 (3216 Metric) Concave Long Side Terminals | 12 VDC | 0.033 in | 0.85 mm | ||
Panasonic Industrial Automation Sales | 47 Ohms 100 pF | 1st | Data Lines for Mobile Devices | RC (Pi) | -25 °C | 85 °C | Surface Mount | 4 | Low Pass | 0.063 in | 1.6 mm | 0.126 " | 3.2 mm | 47 Ohms | 1206 (3216 Metric) Concave Long Side Terminals | 12 VDC | 0.033 in | 0.85 mm | ||
Panasonic Industrial Automation Sales | 1 kOhms 100 pF | 1st | Data Lines for Mobile Devices | RC (Pi) | -25 °C | 85 °C | Surface Mount | 4 | Low Pass | 0.063 in | 1.6 mm | 0.126 " | 3.2 mm | 1206 (3216 Metric) Concave Long Side Terminals | 12 VDC | 0.033 in | 0.85 mm | 1k | ||
Panasonic Industrial Automation Sales | 47 pF 470 Ohms | 1st | Data Lines for Mobile Devices | RC (Pi) | -25 °C | 85 °C | Surface Mount | 4 | Low Pass | 0.063 in | 1.6 mm | 0.126 " | 3.2 mm | 470 Ohms | 1206 (3216 Metric) Concave Long Side Terminals | 12 VDC | 0.033 in | 0.85 mm | ||
Panasonic Industrial Automation Sales | 47 pF 100 Ohms | 1st | Data Lines for Mobile Devices | RC (Pi) | -25 °C | 85 °C | Surface Mount | 4 | Low Pass | 0.063 in | 1.6 mm | 0.126 " | 3.2 mm | 100 Ohms | 1206 (3216 Metric) Concave Long Side Terminals | 12 VDC | 0.033 in | 0.85 mm | ||
Panasonic Industrial Automation Sales | 22 pF 47 Ohms | 1st | Data Lines for Mobile Devices | RC (Pi) | -25 °C | 85 °C | Surface Mount | 4 | Low Pass | 0.063 in | 1.6 mm | 0.126 " | 3.2 mm | 47 Ohms | 1206 (3216 Metric) Concave Long Side Terminals | 12 VDC | 0.033 in | 0.85 mm | ||
Panasonic Industrial Automation Sales | 47 pF 47 Ohms | 1st | Data Lines for Mobile Devices | RC (Pi) | -25 °C | 85 °C | Surface Mount | 4 | Low Pass | 0.063 in | 1.6 mm | 0.126 " | 3.2 mm | 47 Ohms | 1206 (3216 Metric) Concave Long Side Terminals | 12 VDC | 0.033 in | 0.85 mm | ||
Panasonic Industrial Automation Sales | 22 Ohms 100 pF | 1st | Data Lines for Mobile Devices | RC (Pi) | -25 °C | 85 °C | Surface Mount | 4 | Low Pass | 0.063 in | 1.6 mm | 0.126 " | 3.2 mm | 22 Ohms | 1206 (3216 Metric) Concave Long Side Terminals | 12 VDC | 0.033 in | 0.85 mm | ||
Panasonic Industrial Automation Sales | 1 kOhms 22 pF | 1st | Data Lines for Mobile Devices | RC (Pi) | -25 °C | 85 °C | Surface Mount | 4 | Low Pass | 0.063 in | 1.6 mm | 0.126 " | 3.2 mm | 1206 (3216 Metric) Concave Long Side Terminals | 12 VDC | 0.033 in | 0.85 mm | 1k | ||
Panasonic Industrial Automation Sales | 1 kOhms 47 pF | 1st | Data Lines for Mobile Devices | RC (Pi) | -25 °C | 85 °C | Surface Mount | 4 | Low Pass | 0.063 in | 1.6 mm | 0.126 " | 3.2 mm | 1206 (3216 Metric) Concave Long Side Terminals | 12 VDC | 0.033 in | 0.85 mm | 1k |
