Joysticks ASM,JOYSTICK,4WAY,SL
Joysticks ASM,JOYSTICK,4WAY,SL
| Part | Current Rating (Amps) | Type | Type | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Operating Force | Electrical Life | Actuator Type | Switch Function | Output | Voltage Rating - DC | Contact Material | Contact Finish | Mechanical Life | Ingress Protection | Features | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

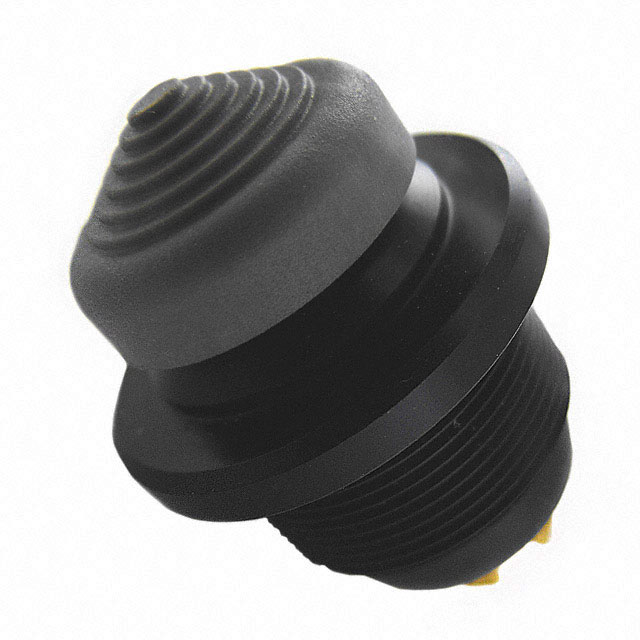

 Grayhill Inc. | 10 mA | 2 Axis | Navigation Switch | 85 °C | -55 °C | PC Pin | 454 gf | 100000 Cycles | Conical | 4-Way Directional Center Select | Digital (Mechanical Switch) | 5 V | Nickel | Gold | 100000 Cycles | IP68 - Dust Tight Waterproof | ||
Grayhill Inc. | 10 mA | 2 Axis | Navigation Switch | 85 °C | -55 °C | PC Pin | 454 gf | 100000 Cycles | Conical | 4-Way Directional Center Select | Digital (Mechanical Switch) | 5 V | Nickel | Gold | 100000 Cycles | IP68 - Dust Tight Waterproof | Gray Actuator | |

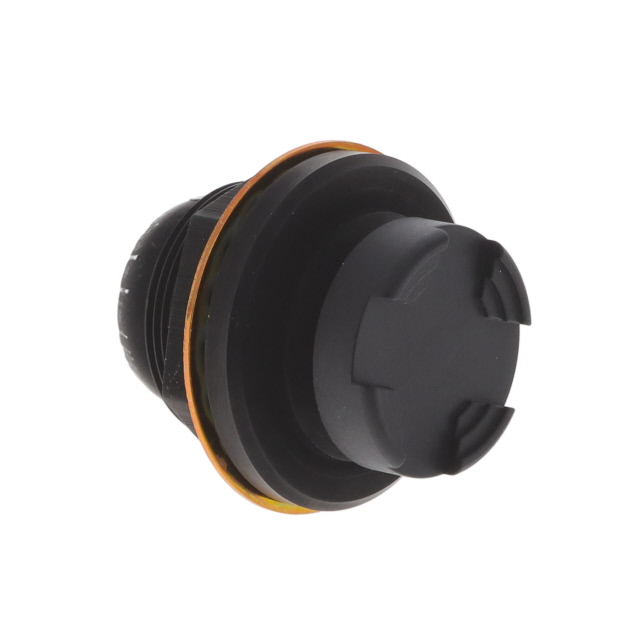

 Grayhill Inc. | 2 A | 2 Axis | Navigation Switch | 85 °C | -55 °C | PC Pin | 454 gf | 100000 Cycles | Castle | 4-Way Directional Center Select | Digital (Mechanical Switch) | 28 V | Nickel | Gold | 100000 Cycles | IP68 - Dust Tight Waterproof | 115 V |
