Z0402C Series

Manufacturer: KEMET

Catalog

FERRITE BEAD 120 OHM 0402 1LN

Part	Mounting Type	Filter Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Impedance @ Frequency	DC Resistance (DCR) (Max) [Max]	Number of Lines	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Height (Max) [z]	Height (Max) [z]	Current Rating (Max) [Max]	DC Resistance (DCR) (Max)
KEMET Z0402C121APMST	Surface Mount	Power Line	0.02 in	0.5 mm	0.039 "	1 mm	120 Ohms	140 mOhm	1	-55 C	85 °C	0402 (1005 Metric)	0.55 mm	0.022 in	1 A
KEMET Z0402C102BSMST	Surface Mount	Signal Line	0.02 in	0.5 mm	0.039 "	1 mm	1 kOhms	800 mOhm	1	-55 C	125 °C	0402 (1005 Metric)	0.55 mm	0.022 in	150 mA

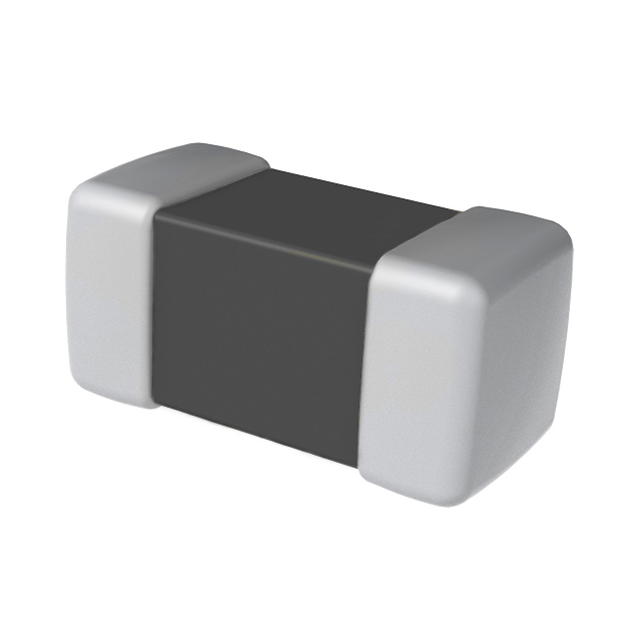

KEMET Z0402C182GSMST	Surface Mount	Signal Line	0.02 in	0.5 mm	0.039 "	1 mm	1.8 kOhms		1	-55 C	125 °C	0402 (1005 Metric)	0.55 mm	0.022 in
KEMET Z0402C601ESMST	Surface Mount	Signal Line	0.02 in	0.5 mm	0.039 "	1 mm	600 Ohms		1	-55 C	125 °C	0402 (1005 Metric)	0.55 mm	0.022 in	300 mA	600 mOhm
KEMET Z0402C100APMST	Surface Mount	Power Line	0.02 in	0.5 mm	0.039 "	1 mm	10 Ohms	30 mOhm	1	-55 C	125 °C	0402 (1005 Metric)	0.55 mm	0.022 in
KEMET Z0402C152GSMST	Surface Mount	Signal Line	0.02 in	0.5 mm	0.039 "	1 mm	1.5 kOhms		1	-55 C	125 °C	0402 (1005 Metric)	0.55 mm	0.022 in
KEMET Z0402C241ESMST	Surface Mount	Signal Line	0.02 in	0.5 mm	0.039 "	1 mm	240 Ohms	310 mOhm	1	-55 C	125 °C	0402 (1005 Metric)	0.55 mm	0.022 in	400 mA
KEMET Z0402C330ASMST	Surface Mount	Signal Line	0.02 in	0.5 mm	0.039 "	1 mm	33 Ohms	100 mOhm	1	-55 C	125 °C	0402 (1005 Metric)	0.55 mm	0.022 in	700 mA
KEMET Z0402C121FPMST	Surface Mount	Power Line	0.02 in	0.5 mm	0.039 "	1 mm	120 Ohms		1	-55 C	125 °C	0402 (1005 Metric)	0.55 mm	0.022 in
KEMET Z0402C330FPMST	Surface Mount	Power Line	0.02 in	0.5 mm	0.039 "	1 mm	33 Ohms		1	-55 C	125 °C	0402 (1005 Metric)	0.55 mm	0.022 in
