HM2P80 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

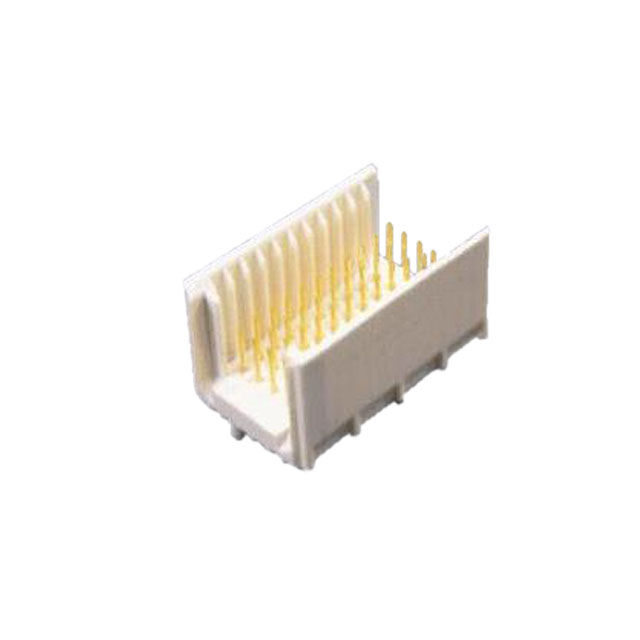

CONN HEADER 77POS 2MM PRESS-FIT
| Part | Voltage Rating | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Features | Contact Finish | Number of Positions [custom] | Number of Positions [custom] | Pitch [x] | Pitch [x] | Connector Type | Number of Positions Loaded | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Connector Style | Termination | Number of Rows | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | 750 Vrms | 1.5 A | -55 C | 125 °C | Board Guide | Gold | 55 | 22 | 0.079 in | 2 mm | Header Male Pins | All | 30 Áin | 0.76 Ám | Through Hole | CR 11 | Press-Fit | 5 + 2 | |
Amphenol ICC (FCI) | 750 Vrms | 1.5 A | -55 C | 125 °C | Board Guide | Gold | 55 | 22 | 0.079 in | 2 mm | Header Male Pins | All | Through Hole | CR 11 | Press-Fit | 5 + 2 | |||
Amphenol ICC (FCI) | 750 Vrms | 1.5 A | -55 C | 125 °C | Board Guide | Gold | 55 | 22 | 0.079 in | 2 mm | Header Male Pins | All | 30 Áin | 0.76 Ám | Through Hole | CR 11 | Press-Fit | 5 + 2 | |
Amphenol ICC (FCI) | 750 Vrms | 1.5 A | -55 C | 125 °C | Board Guide | Gold | 55 | 22 | 0.079 in | 2 mm | Header Male Pins | All | Through Hole | CR 11 | Press-Fit | 5 + 2 | Flash | ||
Amphenol ICC (FCI) | 750 Vrms | 1.5 A | -55 C | 125 °C | Board Guide | Gold | 55 | 22 | 0.079 in | 2 mm | Header Male Pins | All | 15 µin | 0.38 µm | Through Hole | CR 11 | Press-Fit | 5 + 2 | |
Amphenol ICC (FCI) | 750 Vrms | 1.5 A | -55 C | 125 °C | Board Guide | Gold | 55 | 22 | 0.079 in | 2 mm | Header Male Pins | All | 30 Áin | 0.76 Ám | Through Hole | CR 11 | Press-Fit | 5 + 2 | |
Amphenol ICC (FCI) | 750 Vrms | 1.5 A | -55 C | 125 °C | Board Guide | Gold | 55 | 22 | 0.079 in | 2 mm | Header Male Pins | All | Through Hole | CR 11 | Press-Fit | 5 + 2 | |||
 Amphenol ICC (FCI) | 750 Vrms | 1.5 A | -55 C | 125 °C | Board Guide | Gold | 55 | 22 | 0.079 in | 2 mm | Header Male Pins | All | 15 µin | 0.38 µm | Through Hole | CR 11 | Press-Fit | 5 + 2 | |
 Amphenol ICC (FCI) | 750 Vrms | 1.5 A | -55 C | 125 °C | Board Guide | Gold | 55 | 22 | 0.079 in | 2 mm | Header Male Pins | All | 15 µin | 0.38 µm | Through Hole | CR 11 | Press-Fit | 5 + 2 | |
Amphenol ICC (FCI) | 750 Vrms | 1.5 A | -55 C | 125 °C | Board Guide | Gold | 55 | 22 | 0.079 in | 2 mm | Header Male Pins | All | 30 Áin | 0.76 Ám | Through Hole | CR 11 | Press-Fit | 5 + 2 |
