D4F-302 Series

Manufacturer: Omron Automation and Safety

Catalog

SWITCH SNAP ACTION 4PST 15A 120V

Part	Features	Overtravel [custom]	Overtravel [custom]	Operating Force	Operating Temperature [Min]	Operating Temperature [Max]	Release Force	Electrical Life	Mechanical Life	Voltage Rating - DC	Circuit	Switch Function	Current Rating (Amps)	Operating Position	Operating Position	Mounting Type	Ingress Protection	Voltage Rating - AC	Pretravel	Pretravel	Termination Style	Actuator Type

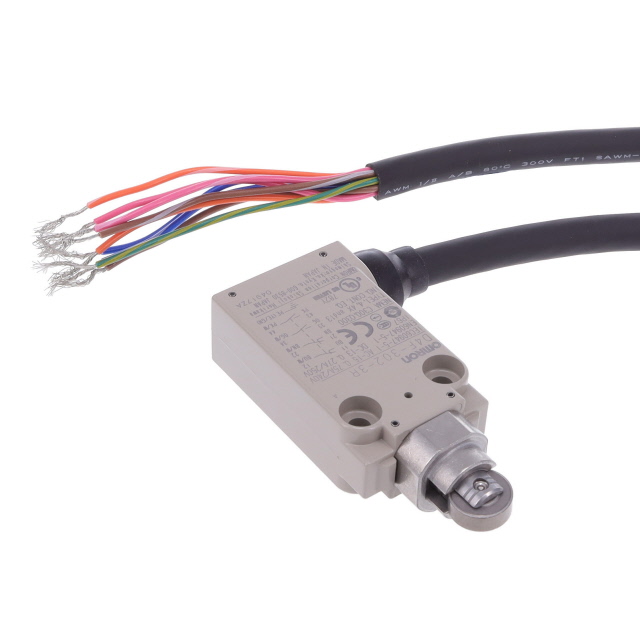

Omron Automation and Safety D4F-302-3R	Cable Length 3m	0.125 in	3.2 mm	1224 gf	-30 ░C	70 °C	153 gf	1000000 Cycles	10000000 Cycles	125 VDC	4PST-2NO/2NC	Off-Mom On-Mom	15 A 550 mA	1.156 in	29.4 mm	Chassis Mount	IP67 - Dust Tight Waterproof	120 V	1.2 mm	0.047 in	Cable Leads	Roller Plunger

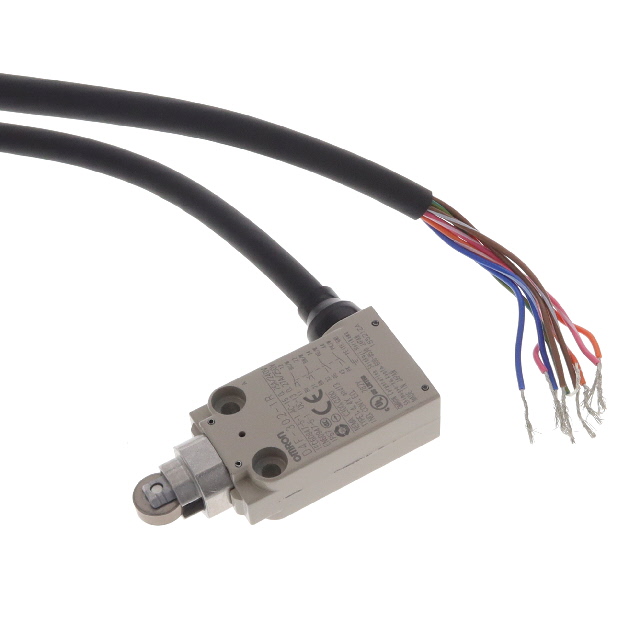

Omron Automation and Safety D4F-302-1R	Cable Length 1m	0.125 in	3.2 mm	1224 gf	-30 ░C	70 °C	153 gf	1000000 Cycles	10000000 Cycles	125 VDC	4PST-2NO/2NC	Off-Mom On-Mom	15 A 550 mA	1.156 in	29.4 mm	Chassis Mount	IP67 - Dust Tight Waterproof	120 V	1.2 mm	0.047 in	Cable Leads	Roller Plunger

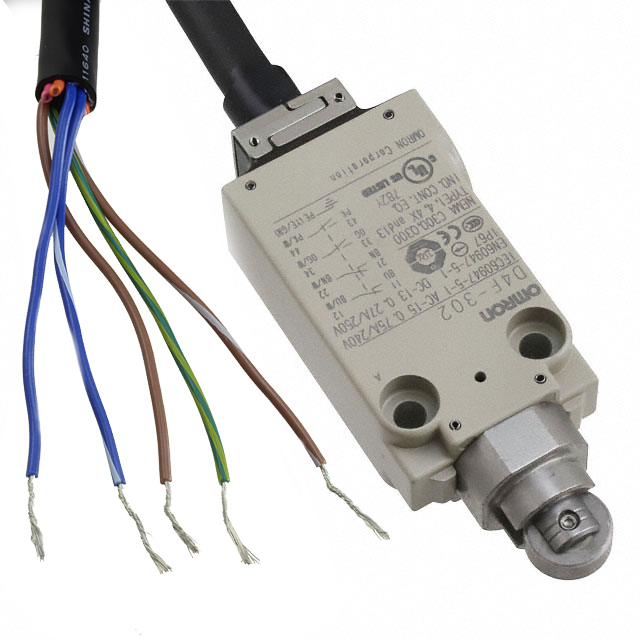

Omron Automation and Safety D4F-302-5D	Cable Length 5m	0.125 in	3.2 mm	1224 gf	-30 ░C	70 °C	153 gf	1000000 Cycles	10000000 Cycles	125 VDC	4PST-2NO/2NC	Off-Mom On-Mom	15 A 550 mA	1.156 in	29.4 mm	Chassis Mount	IP67 - Dust Tight Waterproof	120 V	1.2 mm	0.047 in	Cable Leads	Roller Plunger
Omron Automation and Safety D4F-302-3D	Cable Length 3m	0.125 in	3.2 mm	1224 gf	-30 ░C	70 °C	153 gf	1000000 Cycles	10000000 Cycles	125 VDC	4PST-2NO/2NC	Off-Mom On-Mom	15 A 550 mA	1.156 in	29.4 mm	Chassis Mount	IP67 - Dust Tight Waterproof	120 V	1.2 mm	0.047 in	Cable Leads	Roller Plunger
Omron Automation and Safety D4F-302-1D	Cable Length 1m	0.125 in	3.2 mm	1224 gf	-30 ░C	70 °C	153 gf	1000000 Cycles	10000000 Cycles	125 VDC	4PST-2NO/2NC	Off-Mom On-Mom	15 A 550 mA	1.156 in	29.4 mm	Chassis Mount	IP67 - Dust Tight Waterproof	120 V	1.2 mm	0.047 in	Cable Leads	Roller Plunger
