WM073 Series

Manufacturer: Serpac

Catalog

BOX ABS ALMOND 6.88"L X 4.88"W

Part	Weight	Weight	Design	Thickness	Thickness	Material Flammability Rating	Color	Container Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height	Height [z]	Area (L x W)	Area (L x W)	Features	Ratings	Material

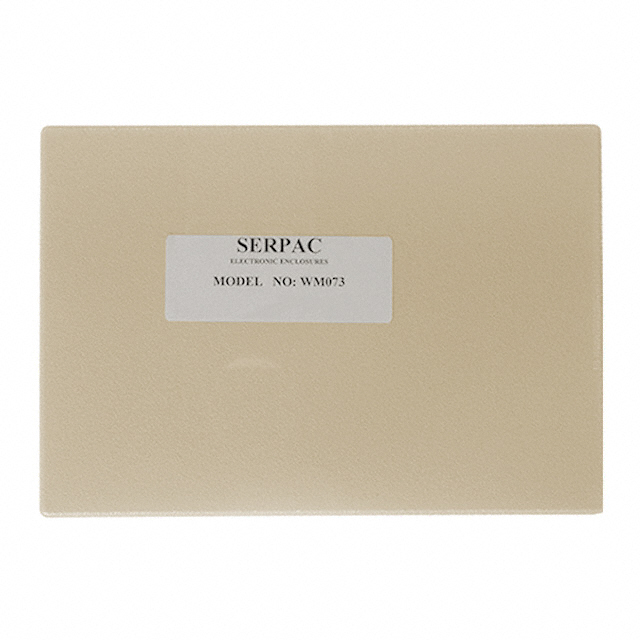

Serpac WM073,AL	197.77 g	0.436 lb	Cover Included	2.54 mm	0.1 in	UL94 HB	Almond	Box	6.88 in	123.95 mm	174.75 mm	4.88 in	53.34 mm	2.1 in	217 cm²	33.6 in²	Mounting Flange PCB Supports Wall Mount	IP40 NEMA 1	ABS Plastic

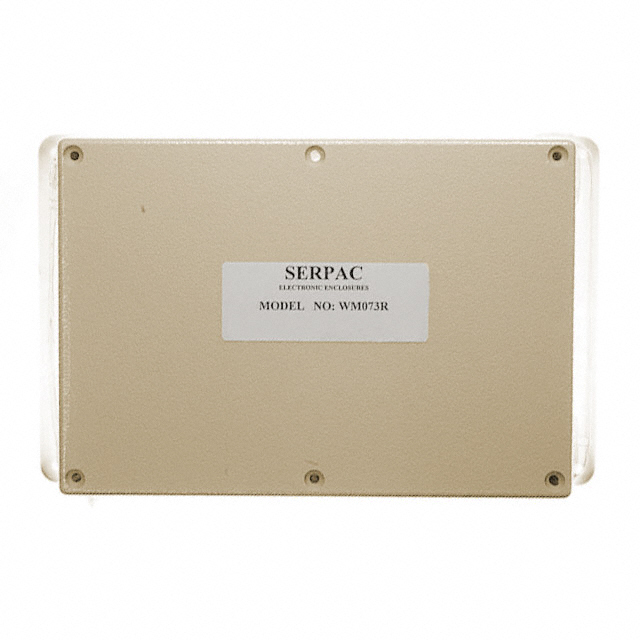

Serpac WM073R,AL	197.77 g	0.436 lb	Cover Included	2.54 mm	0.1 in	UL94 HB	Almond	Box	6.88 in	123.95 mm	174.75 mm	4.88 in	53.34 mm	2.1 in	217 cm²	33.6 in²	Front Access Mounting Flange PCB Supports Wall Mount	IP40 NEMA 1	ABS Plastic
Serpac WM073,BK	197.77 g	0.436 lb	Cover Included	2.54 mm	0.1 in	UL94 HB	Black	Box	6.88 in	123.95 mm	174.75 mm	4.88 in	53.34 mm	2.1 in	217 cm²	33.6 in²	Mounting Flange PCB Supports Wall Mount	IP40 NEMA 1	ABS Plastic
Serpac WM073I,BK	197.77 g	0.436 lb	Cover Included	2.54 mm	0.1 in	UL94 HB	Black	Box	6.88 in	123.95 mm	174.75 mm	4.88 in	53.34 mm	2.1 in	217 cm²	33.6 in²	Mounting Flange PCB Supports Wall Mount	IP40 NEMA 1	ABS Plastic

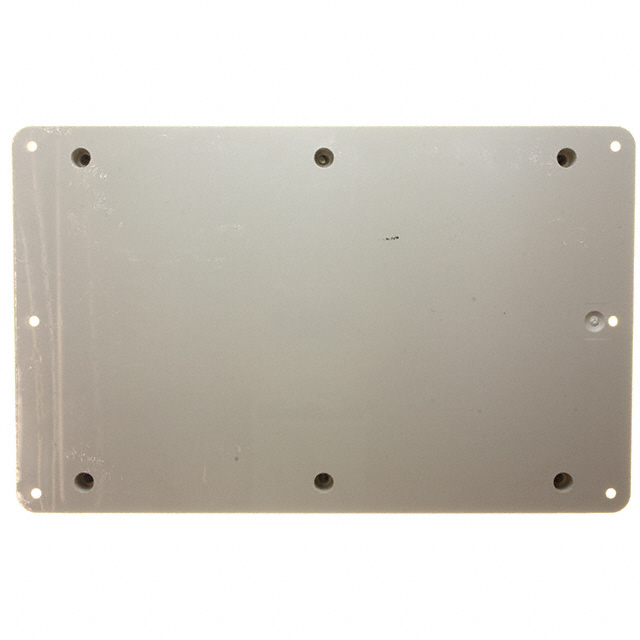

Serpac WM073RI,AL	197.77 g	0.436 lb	Cover Included	2.54 mm	0.1 in	UL94 HB	Almond	Box	6.88 in	123.95 mm	174.75 mm	4.88 in	53.34 mm	2.1 in	217 cm²	33.6 in²	Front Access Mounting Flange PCB Supports Wall Mount	IP40 NEMA 1	ABS Plastic

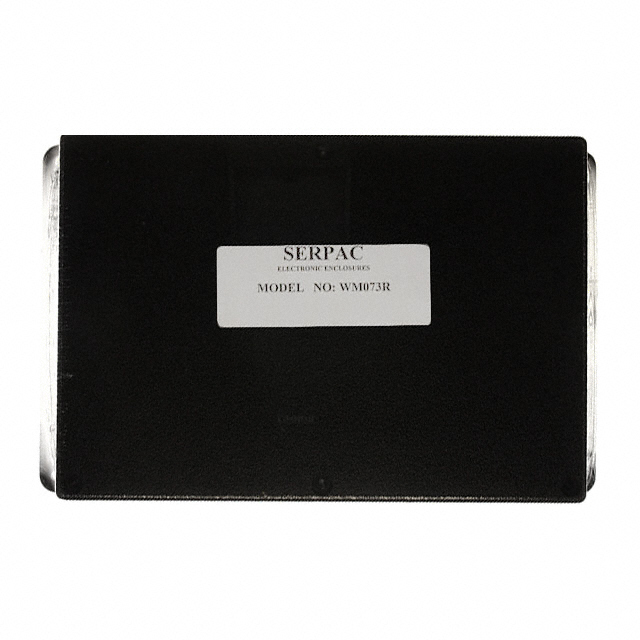

Serpac WM073R,BK	197.77 g	0.436 lb	Cover Included	2.54 mm	0.1 in	UL94 HB	Black	Box	6.88 in	123.95 mm	174.75 mm	4.88 in	53.34 mm	2.1 in	217 cm²	33.6 in²	Front Access Mounting Flange PCB Supports Wall Mount	IP40 NEMA 1	ABS Plastic

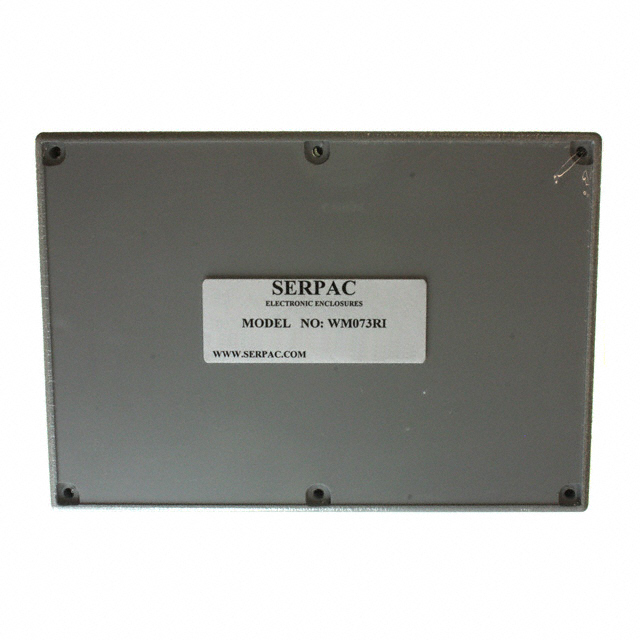

Serpac WM073RI,GY	197.77 g	0.436 lb	Cover Included	2.54 mm	0.1 in	UL94 HB	Gray	Box	6.88 in	123.95 mm	174.75 mm	4.88 in	53.34 mm	2.1 in	217 cm²	33.6 in²	Front Access Mounting Flange PCB Supports Wall Mount	IP40 NEMA 1	ABS Plastic

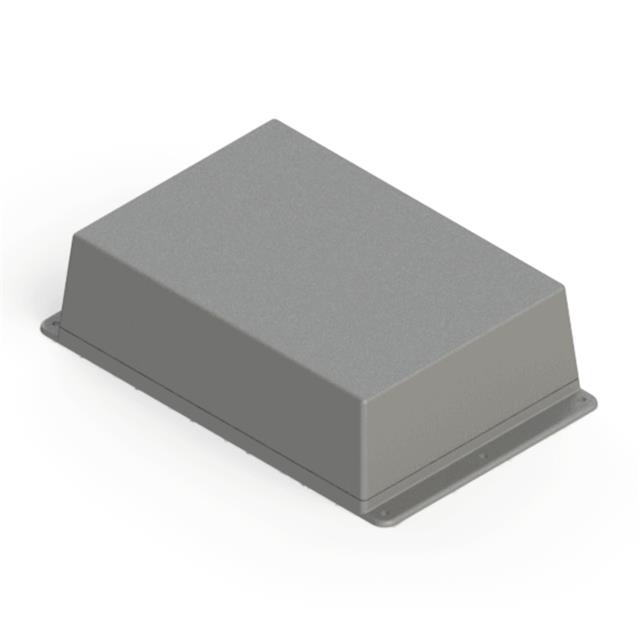

Serpac WM073,GY	197.77 g	0.436 lb	Cover Included	2.54 mm	0.1 in	UL94 HB	Gray	Box	6.88 in	123.95 mm	174.75 mm	4.88 in	53.34 mm	2.1 in	217 cm²	33.6 in²	Mounting Flange PCB Supports Wall Mount	IP40 NEMA 1	ABS Plastic

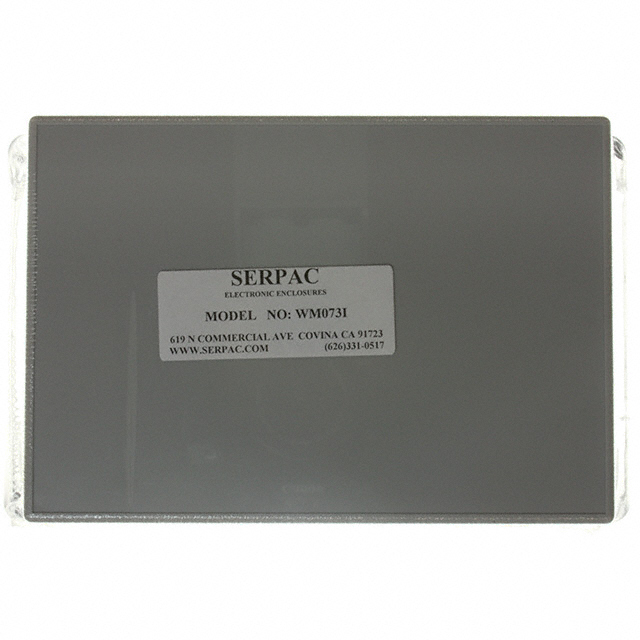

Serpac WM073I,GY	197.77 g	0.436 lb	Cover Included	2.54 mm	0.1 in	UL94 HB	Gray	Box	6.88 in	123.95 mm	174.75 mm	4.88 in	53.34 mm	2.1 in	217 cm²	33.6 in²	Mounting Flange PCB Supports Wall Mount	IP40 NEMA 1	ABS Plastic

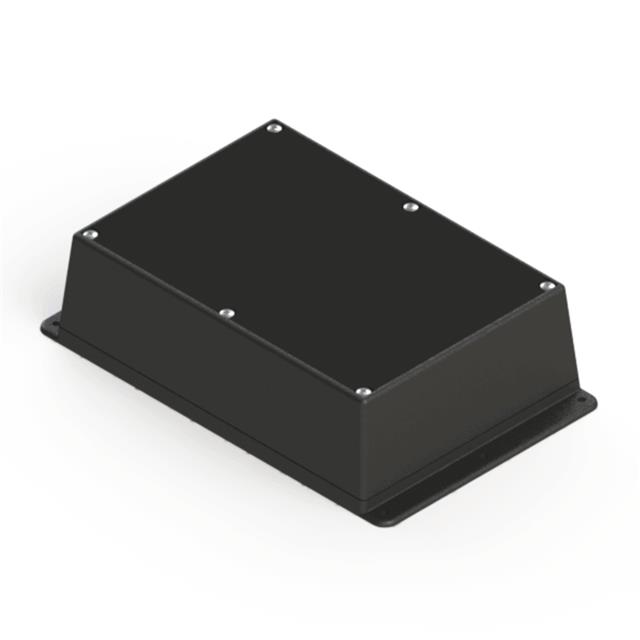

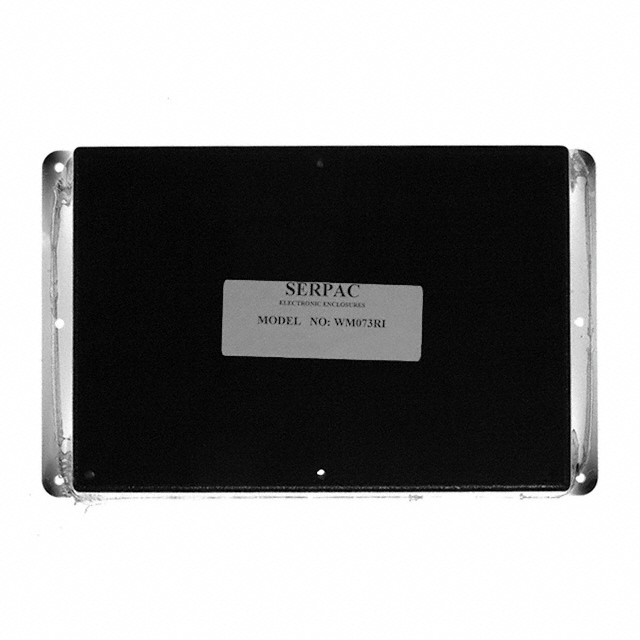

Serpac WM073RI,BK	197.77 g	0.436 lb	Cover Included	2.54 mm	0.1 in	UL94 HB	Black	Box	6.88 in	123.95 mm	174.75 mm	4.88 in	53.34 mm	2.1 in	217 cm²	33.6 in²	Front Access Mounting Flange PCB Supports Wall Mount	IP40 NEMA 1	ABS Plastic
