73347 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

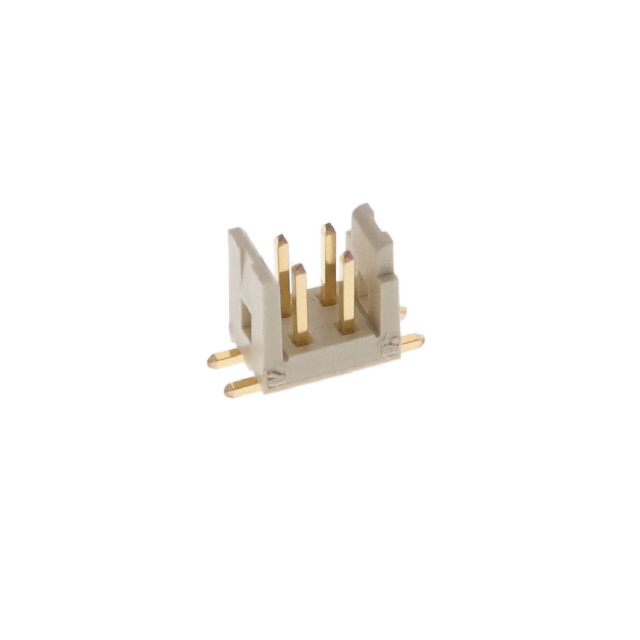

CONN HEADER SMD 4POS 2MM
| Part | Contact Material | Number of Rows | Connector Type | Contact Shape | Contact Finish - Mating | Contact Type | Insulation Color | Current Rating (Amps) | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Material Flammability Rating | Row Spacing - Mating | Row Spacing - Mating | Insulation Material | Fastening Type | Voltage Rating | Termination | Insulation Height | Insulation Height | Shrouding | Number of Positions | Mounting Type | Number of Positions Loaded | Style | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Pitch - Mating [x] | Pitch - Mating [x] | Contact Length - Mating | Contact Length - Mating | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Copper Alloy | 2 | Header | Square | Gold GXT™ | Male Pin | Cream | 2 A | 78.7 çin | 2 çm | UL94 V-0 | 0.079 in | 2 mm | Thermoplastic | Push-Pull | 200 V | Solder | 0.244 in | 6.2 mm | Shrouded - 2 Wall | 4 | Surface Mount | All | Board to Cable/Wire | 30 Áin | 0.76 Ám | 0.079 in | 2 mm | 4 mm | 0.157 in | Tin |
