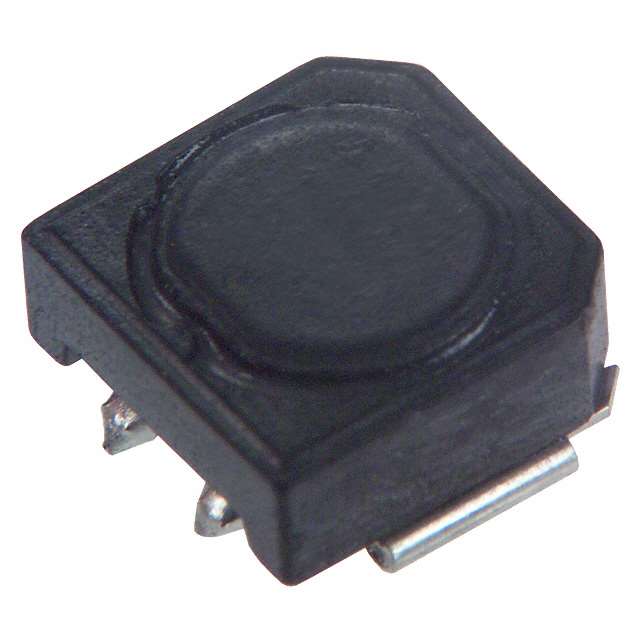

ELL-6SH Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
FIXED IND 82UH 450MA 600MOHM SMD
| Part | Inductance | DC Resistance (DCR) | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Type | Mounting Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Current Rating (Amps) | Inductance Frequency - Test | Tolerance | Shielding | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | 82 µH | 600 mOhm | 0.13 " | 3.3 mm | Wirewound | Surface Mount | 0.236 " | 0.252 " | 6 mm | 6.4 mm | 450 mA | 100 kHz | 20 % | Shielded | Nonstandard |
Panasonic Industrial Automation Sales | 390 µH | 2.8 Ohm | 0.13 " | 3.3 mm | Wirewound | Surface Mount | 0.236 " | 0.252 " | 6 mm | 6.4 mm | 0.21 A | 100 kHz | 20 % | Shielded | Nonstandard |
Panasonic Industrial Automation Sales | 330 µH | 2.7 Ohm | 0.13 " | 3.3 mm | Wirewound | Surface Mount | 0.236 " | 0.252 " | 6 mm | 6.4 mm | 0.24 A | 100 kHz | 20 % | Shielded | Nonstandard |
Panasonic Industrial Automation Sales | 68 µH | 520 mOhm | 0.13 " | 3.3 mm | Wirewound | Surface Mount | 0.236 " | 0.252 " | 6 mm | 6.4 mm | 0.5 A | 100 kHz | 20 % | Shielded | Nonstandard |
Panasonic Industrial Automation Sales | 8.2 µH | 61 mOhm | 0.13 " | 3.3 mm | Wirewound | Surface Mount | 0.236 " | 0.252 " | 6 mm | 6.4 mm | 1.4 A | 100 kHz | 20 % | Shielded | Nonstandard |
Panasonic Industrial Automation Sales | 270 µH | 2.4 Ohm | 0.13 " | 3.3 mm | Wirewound | Surface Mount | 0.236 " | 0.252 " | 6 mm | 6.4 mm | 0.26 A | 100 kHz | 20 % | Shielded | Nonstandard |
Panasonic Industrial Automation Sales | 18 µH | 130 mOhm | 0.13 " | 3.3 mm | Wirewound | Surface Mount | 0.236 " | 0.252 " | 6 mm | 6.4 mm | 1 A | 100 kHz | 20 % | Shielded | Nonstandard |
Panasonic Industrial Automation Sales | 47 µH | 270 mOhm | 0.13 " | 3.3 mm | Wirewound | Surface Mount | 0.236 " | 0.252 " | 6 mm | 6.4 mm | 600 mA | 100 kHz | 20 % | Shielded | Nonstandard |
Panasonic Industrial Automation Sales | 680 µH | 4.3 Ohm | 0.13 " | 3.3 mm | Wirewound | Surface Mount | 0.236 " | 0.252 " | 6 mm | 6.4 mm | 160 mA | 100 kHz | 20 % | Shielded | Nonstandard |
Panasonic Industrial Automation Sales | 180 µH | 1.3 Ohm | 0.13 " | 3.3 mm | Wirewound | Surface Mount | 0.236 " | 0.252 " | 6 mm | 6.4 mm | 300 mA | 100 kHz | 20 % | Shielded | Nonstandard |
