Q-150K Series

Manufacturer: Qualtek

Catalog

HEATSHRINK 1/8"-6" CLEAR

Part	Color	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shrink Temperature	Recovered Wall Thickness	Recovered Wall Thickness	Shelf Life	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Features	Type	Length	Length	Length	Material	Operating Temperature [Min]	Operating Temperature [Max]	Inner Diameter - Recovered	Length [x]	Length [x]
Qualtek Q-150K-1/8-02-QB6IN-20	Clear	1	2	3.18 mm	0.125 in	135 C	0.01 in	0.25 mm	144 Months	0.062 in	1.57 mm	40 °C	14 °F	-50 °F	40 °C	Abrasion Resistant Chemical Resistant Cut-Through Resistant Flame Retardant Solvent Resistant	Tubing Flexible	152.4 mm	0.5 '	6 "	Polyvinylidene Fluoride (PVDF)	-55 C	150 °C
Qualtek Q-150K-1/8-01-SS200M	Black	1	2	3.18 mm	0.125 in	135 C	0.01 in	0.25 mm	144 Months	0.062 in	1.57 mm	40 °C	14 °F	-50 °F	40 °C	Abrasion Resistant Chemical Resistant Cut-Through Resistant Flame Retardant Solvent Resistant	Tubing Flexible	200 m	656.2 ft		Polyvinylidene Fluoride (PVDF)	-55 C	150 °C
Qualtek Q-150K-3/32-02-QB6IN-24	Clear	1	2	2.36 mm	0.093 "	135 C	0.01 in	0.25 mm	144 Months	0.049 "		40 °C	14 °F	-50 °F	40 °C	Abrasion Resistant Chemical Resistant Cut-Through Resistant Flame Retardant Solvent Resistant	Tubing Flexible	152.4 mm	0.5 '	6 "	Polyvinylidene Fluoride (PVDF)	-55 C	150 °C	1.24 mm
Qualtek Q-150K-1/2-01-QB48IN-5	Black	1	2	12.7 mm	0.5 "	135 C	0.012 in	0.3 mm	144 Months	0.25 in	6.35 mm	40 °C	14 °F	-50 °F	40 °C	Abrasion Resistant Chemical Resistant Cut-Through Resistant Flame Retardant Solvent Resistant	Tubing Flexible				Polyvinylidene Fluoride (PVDF)	-55 C	150 °C		4 ft	1.22 m
Qualtek Q-150K-3/64-01-QB6IN-32	Black	1	2	1.17 mm	0.046 "	135 C	0.01 in	0.25 mm	144 Months	0.023 in	0.58 mm	40 °C	14 °F	-50 °F	40 °C	Abrasion Resistant Chemical Resistant Cut-Through Resistant Flame Retardant Solvent Resistant	Tubing Flexible	152.4 mm	0.5 '	6 "	Polyvinylidene Fluoride (PVDF)	-55 C	150 °C

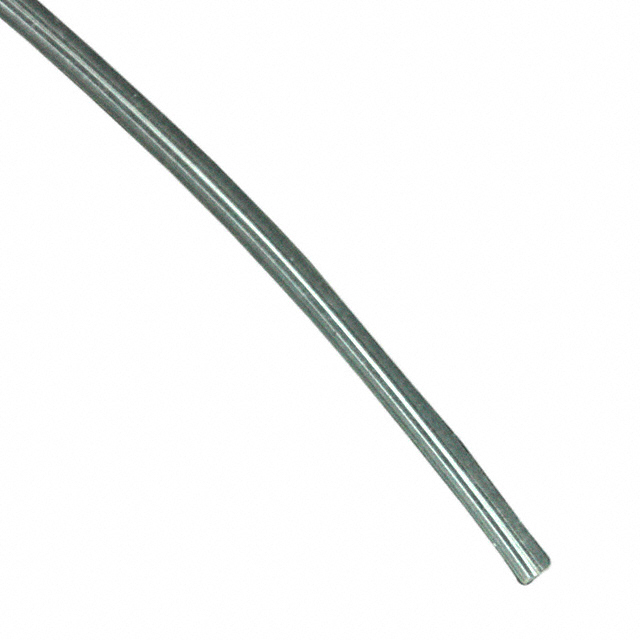

Qualtek Q-150K-3/64-02-QB48IN-25	Clear	1	2	1.17 mm	0.046 "	135 C	0.01 in	0.25 mm	144 Months	0.023 in	0.58 mm	40 °C	14 °F	-50 °F	40 °C	Abrasion Resistant Chemical Resistant Cut-Through Resistant Flame Retardant Solvent Resistant	Tubing Flexible				Polyvinylidene Fluoride (PVDF)	-55 C	150 °C		4 ft	1.22 m
Qualtek Q-150K-3/8-01-SS50M	Black	1	2	9.53 mm	0.375 in	135 C	0.012 in	0.3 mm	144 Months	0.187 in	4.75 mm	40 °C	14 °F	-50 °F	40 °C	Abrasion Resistant Chemical Resistant Cut-Through Resistant Flame Retardant Solvent Resistant	Tubing Flexible	50 m	164 ft		Polyvinylidene Fluoride (PVDF)	-55 C	150 °C
Qualtek Q-150K-3/8-02-SS50M	Clear	1	2	9.53 mm	0.375 in	135 C	0.012 in	0.3 mm	144 Months	0.187 in	4.75 mm	40 °C	14 °F	-50 °F	40 °C	Abrasion Resistant Chemical Resistant Cut-Through Resistant Flame Retardant Solvent Resistant	Tubing Flexible	50 m	164 ft		Polyvinylidene Fluoride (PVDF)	-55 C	150 °C
Qualtek Q-150K-1/16-01-SS200M	Black	1	2	1.6 mm	0.063 in	135 C	0.01 in	0.25 mm	144 Months	0.031 in	0.79 mm	40 °C	14 °F	-50 °F	40 °C	Abrasion Resistant Chemical Resistant Cut-Through Resistant Flame Retardant Solvent Resistant	Tubing Flexible	200 m	656.2 ft		Polyvinylidene Fluoride (PVDF)	-55 C	150 °C

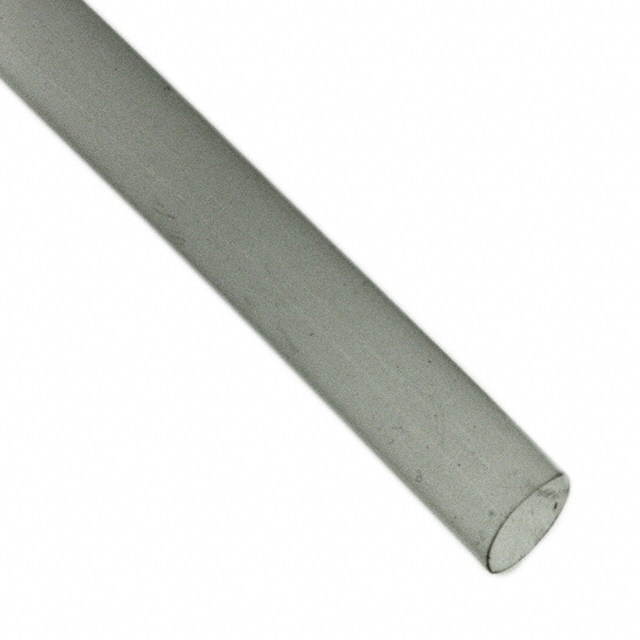

Qualtek Q-150K-3/16-02-QB48IN-25	Clear	1	2	4.75 mm	0.187 "	135 C	0.01 in	0.25 mm	144 Months	0.095 "	2.41 mm	40 °C	14 °F	-50 °F	40 °C	Abrasion Resistant Chemical Resistant Cut-Through Resistant Flame Retardant Solvent Resistant	Tubing Flexible				Polyvinylidene Fluoride (PVDF)	-55 C	150 °C		4 ft	1.22 m
