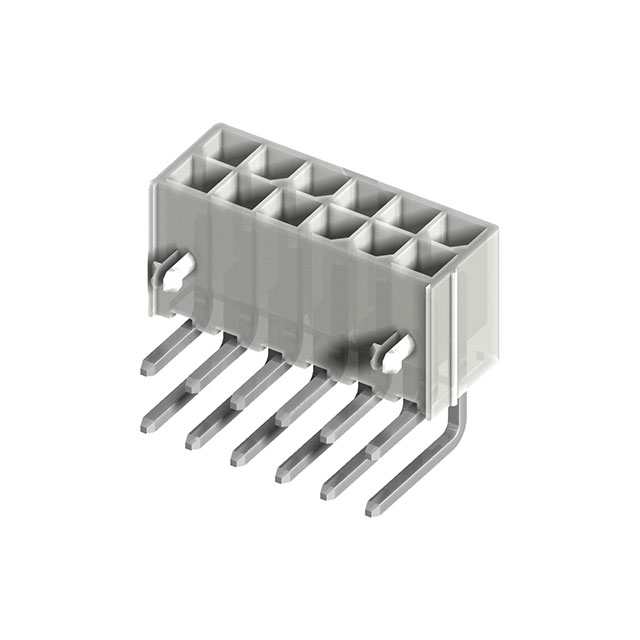

CP-01416 Series
Manufacturer: Cvilux USA
Beta
⌘K
4.20MM 16 POS DUAL ROWS RIGHT AN
| Part | Number of Positions Loaded | Number of Positions | Contact Shape | Current Rating (Amps) | Contact Type | Insulation Material | Material Flammability Rating | Row Spacing - Mating | Row Spacing - Mating | Voltage Rating | Insulation Color | Fastening Type | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Contact Finish - Post | Insulation Height | Insulation Height | Contact Length - Post | Contact Length - Post | Features | Contact Material | Connector Type | Number of Rows [custom] | Shrouding | Pitch - Mating | Pitch - Mating | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cvilux USA | All | 16 | Square | 9 A | Male Pin | Nylon 6/6 Polyamide (PA66) | UL94 V-2 | 0.165 in | 4.2 mm | 600 VAC | Natural | Locking Ramp | Right Angle Through Hole | 85 °C | -25 °C | Solder | Tin | 10 mm | 0.394 " | 0.138 in | 3.5 mm | Board Lock | Brass | Header | 2 | Shrouded - 4 Wall | 0.165 in | 4.2 mm | Board to Cable/Wire |
