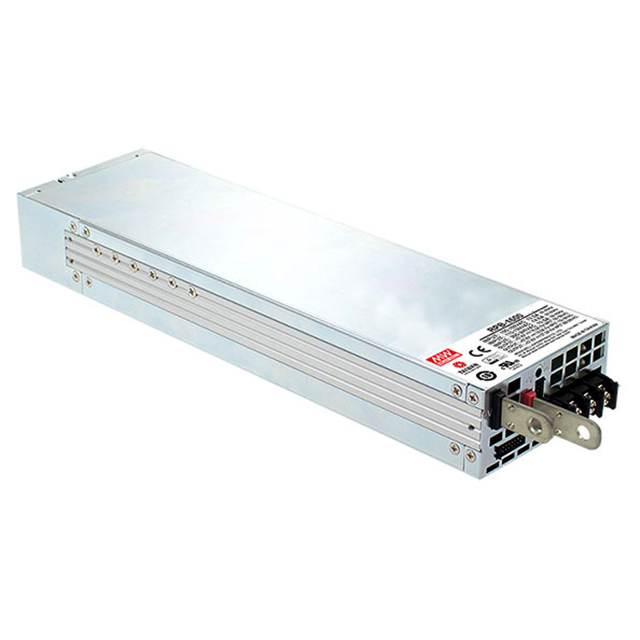

RPB-1600 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
BATT CHARGER ENCLOSED 28.8V 55A
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Weight | Approval Agency | Voltage - Input [Max] | Voltage - Input [Min] | Features | Battery Chemistry [custom] | Number of Cells | Termination Style | Battery Cell Size | Power - Max [Max] | Mounting Type | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Voltage - Nominal | Charge Current - Max [Max] | Type | Charge Current - Max |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | -30 ░C | 70 °C | 1870 g | CB CE cURus TUV | 264 VAC 370 VDC | 90 VAC 127 VDC | LED Indicator | Lead Acid Lithium-Ion | 1 | Rectangular Connector | 24 V | 1600 W | Rack Mount | 3.35 in | 85 mm | 41 mm | 300 mm | 1.61 " | 11.81 in | 28.8 V | 55 A | Enclosed | |
MEAN WELL USA Inc. | -30 ░C | 70 °C | 1870 g | CB CE cURus TUV | 264 VAC 370 VDC | 90 VAC 127 VDC | LED Indicator | Lead Acid Lithium-Ion | 1 | Rectangular Connector | 48 V | 1600 W | Rack Mount | 3.35 in | 85 mm | 41 mm | 300 mm | 1.61 " | 11.81 in | 57.6 V | Enclosed | 27.5 A | |
MEAN WELL USA Inc. | -30 ░C | 70 °C | 1870 g | CB CE cURus TUV | 264 VAC 370 VDC | 90 VAC 127 VDC | LED Indicator | Lead Acid Lithium-Ion | 1 | Rectangular Connector | 12 V | 1600 W | Rack Mount | 3.35 in | 85 mm | 41 mm | 300 mm | 1.61 " | 11.81 in | 14.4 V | 100 A | Enclosed |
