9340001 Series

Catalog

PELTIR MS2,049,10,10,15,15,00,W8

Part	Size / Dimension [x]	Size / Dimension [y]	Number of Stages	Features	Operating Temperature	Qmax @ Th	Delta Tmax @ Th	Current - Max [Max]	Voltage - Max [Max]	Height [z]

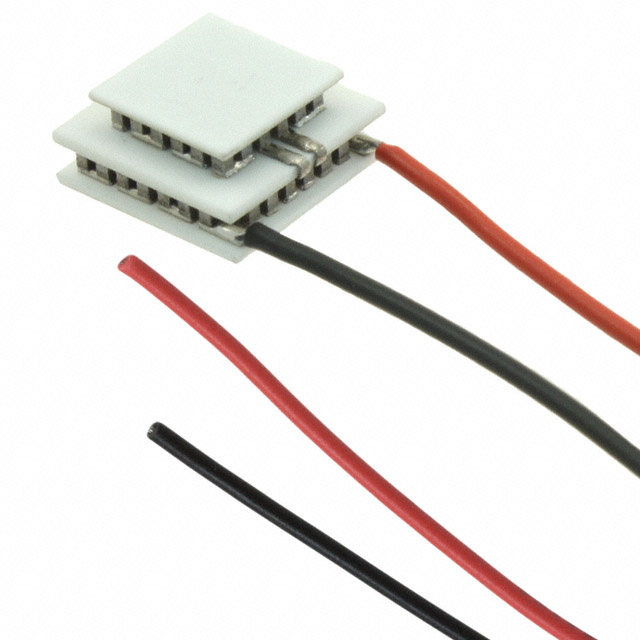

Laird Thermal Systems, Inc. 9340001-304	15 mm	15 mm	2	Lead Wires Non-Sealed	80 °C	3.5 W	87 °C	2.2 A	3.7 V	6.81 mm
Laird Thermal Systems, Inc. 9340001-301	15 mm	15 mm	2	Lead Wires Non-Sealed	80 °C	3.5 W	87 °C	2.2 A	3.7 V	6.5 mm

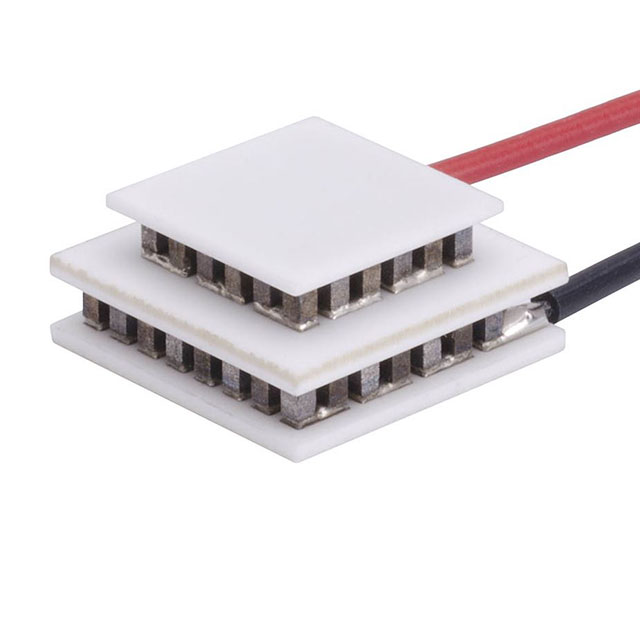

Laird Thermal Systems, Inc. 9340001-319	15 mm	15 mm	2	Lead Wires Non-Sealed	80 °C	3.4 W	87 °C	2.1 A	3.8 V	6.5 mm
