T41440 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

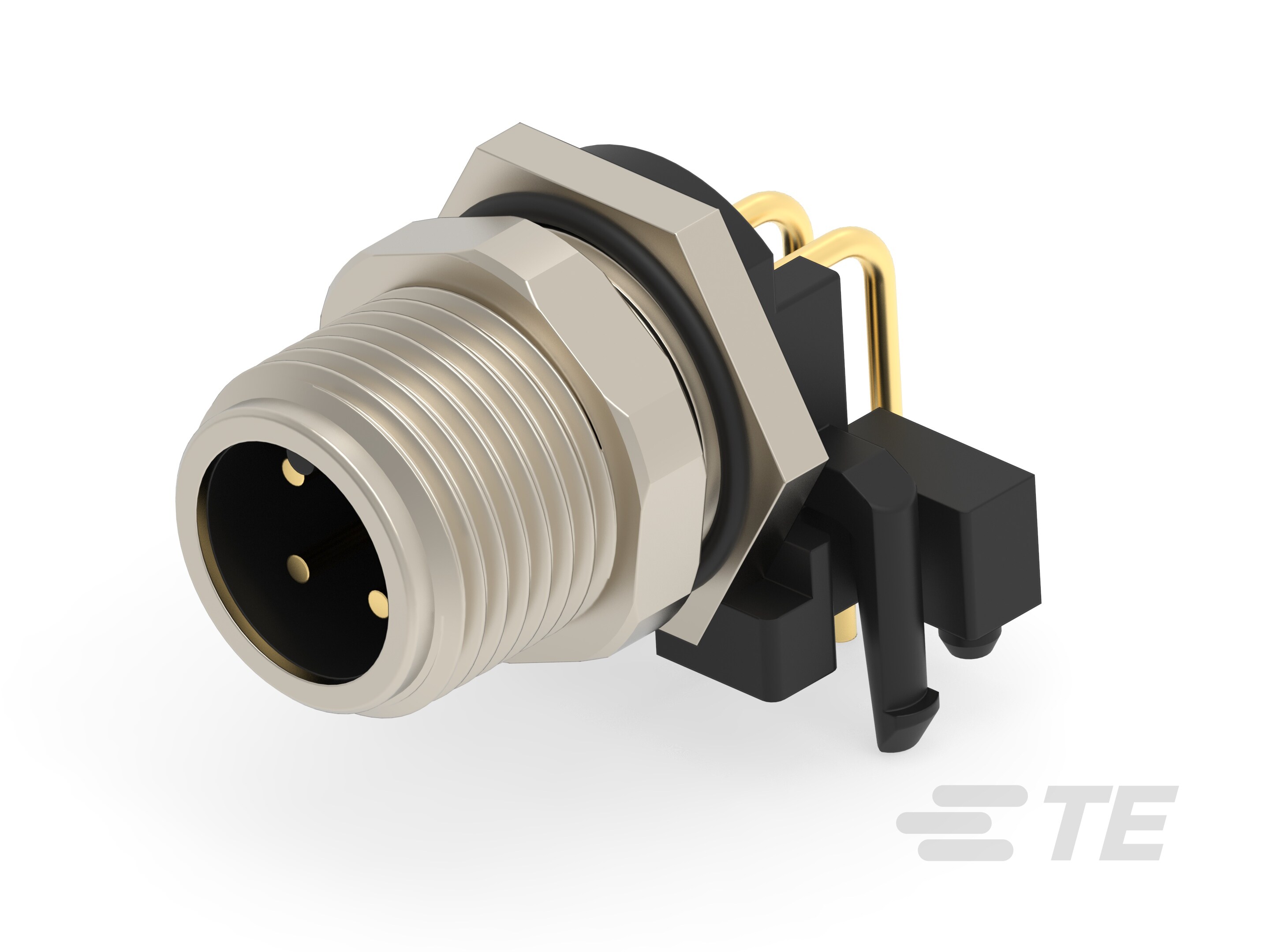

CIRCULAR METRIC CONNECTORS M12 R/A M PNL REAR A CODE 5P PCBSTD SHLD
| Part | Contact Finish Thickness - Mating | Insert Material | Contact Material | Applications | Contact Finish - Mating | Termination | Color | Shell Size - Insert | Features | Mounting Type | Number of Positions | Shell Material | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Primary Material | Orientation | Ingress Protection | Voltage Rating | Fastening Type | Shielding | Current Rating (Amps) | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Flash | Nylon 6/6 Polyamide (PA66) | Copper Alloy | Industrial | Gold | Solder | Silver | M12-5 | Board Guide Board Lock | Panel Mount Right Angle Through Hole | 5 | Copper Alloy | 85 °C | -40 C | Receptacle Male Pins | Metal | A | IP67 - Dust Tight Waterproof | 60 VDC | Threaded | Shielded | 4 A | Bulkhead - Front Side Nut |
 TE Connectivity AMP Connectors | Flash | Nylon 6/6 Polyamide (PA66) | Copper Alloy | Industrial | Gold | Solder | Silver | M12-4 | Board Guide Board Lock | Panel Mount Right Angle Through Hole | 4 | Copper Alloy | 85 °C | -40 C | Receptacle Male Pins | Metal | A | IP67 - Dust Tight Waterproof | 250 V | Threaded | Unshielded | 4 A | Bulkhead - Front Side Nut |
 TE Connectivity AMP Connectors | Flash | Nylon 6/6 Polyamide (PA66) | Copper Alloy | Industrial | Gold | Solder | Silver | M12-4 | Board Guide Board Lock | Panel Mount Right Angle Through Hole | 4 | Copper Alloy | 85 °C | -40 C | Receptacle Male Pins | Metal | A | IP67 - Dust Tight Waterproof | 250 V | Threaded | Shielded | 4 A | Bulkhead - Front Side Nut |
