170179 Series

Catalog

FASTON PREMIER RECPT ST ROHS COMPLIANT: YES

Part	Tab Width	Tab Width	Tab Length	Tab Length	Tab Thickness	Tab Thickness	Mounting Type	Gender	Wire Gauge [Min]	Wire Gauge [Max]	Terminal Type	Contact Material	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Length - Overall [x]	Length - Overall [x]	Contact Finish	Termination	Insulation

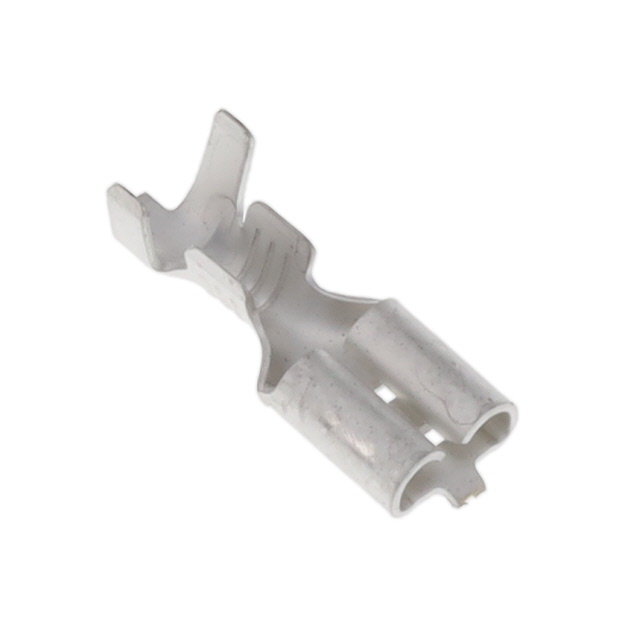

TE Connectivity Raychem Cable Protection 170179-2	5.21 mm	0.205 in	0.252 in	6.4 mm	0.032 in	0.81 mm	Free Hanging (In-Line)	Female	14 AWG	18 AWG	Standard	Brass	0.181 in 4.6 mm	0.13 in 3.3 mm	15.7 mm	0.618 "	Tin	Crimp	Non-Insulated
