A2HM1CS Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
RELAY AUTOMOTIVE SPDT 50A 24V
| Part | Coil Power | Contact Material | Coil Resistance | Contact Rating (Current) | Coil Voltage | Mounting Type | Coil Type | Operating Temperature [Max] | Operating Temperature [Min] | Coil Current | Termination Style | Operate Time | Release Time | Features | Contact Form | Switching Voltage [Max] | Must Release Voltage | Must Operate Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

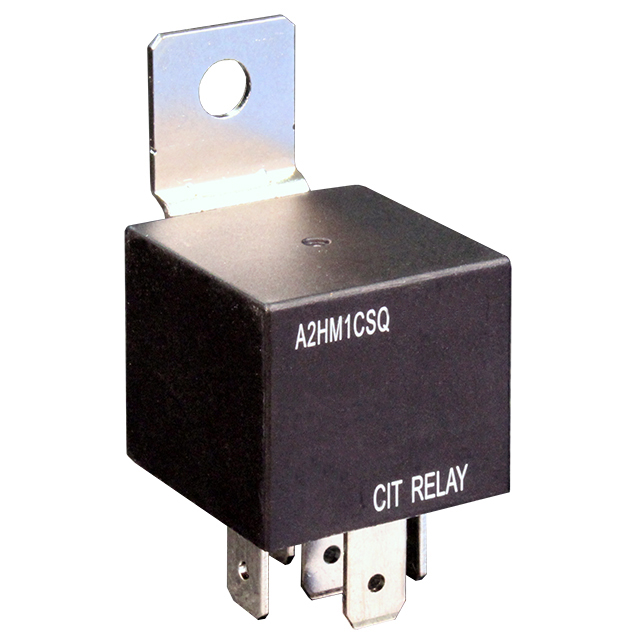

 CIT Relay and Switch | 1.6 W | Silver Tin Oxide (AgSnO) | 320 Ohms | 50 A | 24 VDC | Chassis Mount | Non Latching | 125 °C | -40 C | 0.075 A | Quick Connect - 0.250" (6.3mm) | 10 ms | 10 ms | Resistor Sealed - Fully | SPDT (1 Form C) | 75 VDC | 2.4 VDC | |

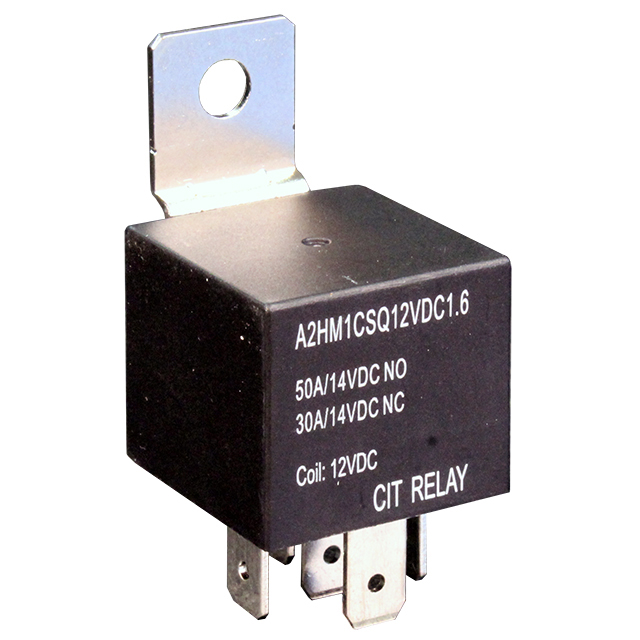

 CIT Relay and Switch | 1.6 W | Silver Tin Oxide (AgSnO) | 80 Ohms | 50 A | 12 VDC | Chassis Mount | Non Latching | 125 °C | -40 C | 0.15 A | Quick Connect - 0.250" (6.3mm) | 10 ms | 10 ms | Resistor Sealed - Fully | SPDT (1 Form C) | 75 VDC | 1.2 VDC | 7.8 VDC |
 CIT Relay and Switch | 1.6 W | Silver Tin Oxide (AgSnO) | 360 Ohms | 50 A | 24 VDC | Chassis Mount | Non Latching | 125 °C | -40 C | 66.7 mA | Quick Connect - 0.250" (6.3mm) | 10 ms | 10 ms | Diode Sealed - Fully | SPDT (1 Form C) | 75 VDC | 2.4 VDC |
