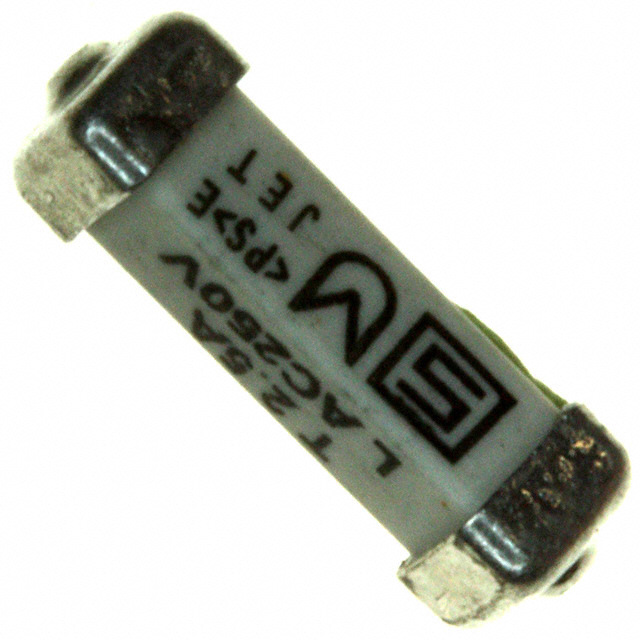

3403.0170 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K
FUSE BRD MNT 2.5A 250VAC 125VDC
| Part | Package / Case | Approval Agency | Fuse Type | Voltage Rating - DC | Breaking Capacity @ Rated Voltage | Voltage Rating - AC | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Melting I²t | Mounting Type | Response Time | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 2-SMD Square End Block | CQC cURus KC PSE/JET UL VDE | Board Mount (Cartridge Style Excluded) | 125 VDC | 35 A 200 A | 250 V | -55 C | 125 °C | 0.118 in | 0.118 in | 0.398 in | 3 mm | 10.1 mm | 3 mm | 7.5 | Surface Mount | Slow Blow | 2.5 A |
