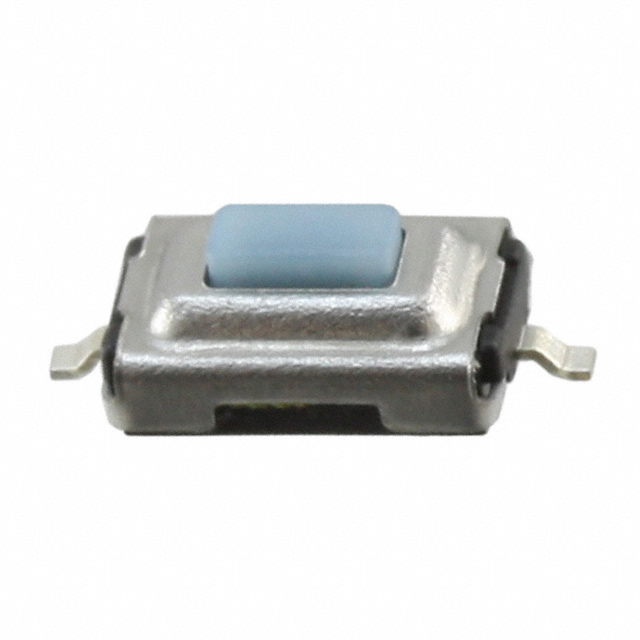

RS-282G05 Series
Manufacturer: Littelfuse/Commercial Vehicle Products
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Actuator Orientation | Actuator Height off PCB, Vertical [z] | Outline [y] | Outline [x] | Actuator Material | Illumination | Contact Rating @ Voltage | Operating Force | Circuit | Mounting Type | Actuator Type | Switch Travel | Switch Function | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Littelfuse/Commercial Vehicle Products | Top Actuated | 2.5 mm | 3.6 mm | 6 mm | Nylon Polyamide (PA) | Non-Illuminated | 0.05 A 12 VDC | 0.25 kgf | SPST-NO | Surface Mount | Rectangular Button | 0.25 mm | Off-Mom | Gull Wing |
