87232 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
07 MODII HDR SRRA UNSHRD .100 ROHS COMPLIANT: YES
| Part | Contact Finish Thickness - Post | Number of Positions | Termination | Contact Material | Contact Length - Mating | Contact Length - Mating | Shrouding | Contact Type | Insulation Material | Connector Type | Contact Finish - Post | Material Flammability Rating | Mounting Type | Style | Number of Rows | Fastening Type | Insulation Color | Insulation Height [z] | Insulation Height [z] | Contact Length - Post [custom] | Contact Length - Post | Contact Finish - Mating | Contact Shape | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Number of Positions Loaded | Pitch - Mating | Pitch - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Flash | 7 | Solder | Phosphor Bronze | 8.08 mm | 0.318 in | Unshrouded | Male Pin | Glass Filled Nylon Polyamide (PA) | Header | Gold | UL94 V-0 | Right Angle Through Hole | Board to Board Cable | 1 | Push-Pull | Black | 3.5 mm | 0.138 " | 0.11 in | 2.79 mm | Gold | Square | 0.76 Ám | 30 Áin | 105 ░C | -65 ░C | 3 A | All | 0.1 " | 2.54 mm |
TE Connectivity AMP Connectors | Flash | 11 | Solder | Phosphor Bronze | 8.08 mm | 0.318 in | Unshrouded | Male Pin | Glass Filled Nylon Polyamide (PA) | Header | Gold | UL94 V-0 | Right Angle Through Hole | Board to Board Cable | 1 | Push-Pull | Black | 3.5 mm | 0.138 " | 0.11 in | 2.79 mm | Gold | Square | 0.76 Ám | 30 Áin | 105 ░C | -65 ░C | 3 A | All | 0.1 " | 2.54 mm |
 TE Connectivity AMP Connectors | Flash | 20 | Solder | Phosphor Bronze | 8.08 mm | 0.318 in | Unshrouded | Male Pin | Glass Filled Nylon Polyamide (PA) | Header | Gold | UL94 V-0 | Right Angle Through Hole | Board to Board Cable | 1 | Push-Pull | Black | 3.5 mm | 0.138 " | 0.11 in | 2.79 mm | Gold | Square | 0.76 Ám | 30 Áin | 105 ░C | -65 ░C | 3 A | All | 0.1 " | 2.54 mm |

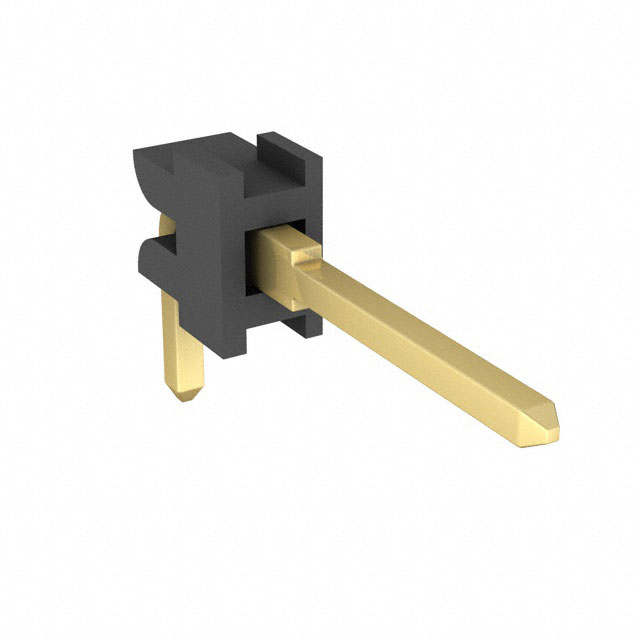

 TE Connectivity AMP Connectors | Flash | 1 | Solder | Phosphor Bronze | 8.08 mm | 0.318 in | Unshrouded | Male Pin | Glass Filled Nylon Polyamide (PA) | Header | Gold | UL94 V-0 | Right Angle Through Hole | Board to Board Cable | 1 | Push-Pull | Black | 3.5 mm | 0.138 " | 0.11 in | 2.79 mm | Gold | Square | 0.76 Ám | 30 Áin | 105 ░C | -65 ░C | 3 A | All | ||
TE Connectivity AMP Connectors | Flash | 18 | Solder | Phosphor Bronze | 8.08 mm | 0.318 in | Unshrouded | Male Pin | Glass Filled Nylon Polyamide (PA) | Header | Gold | UL94 V-0 | Right Angle Through Hole | Board to Board Cable | 1 | Push-Pull | Black | 3.5 mm | 0.138 " | 0.11 in | 2.79 mm | Gold | Square | 0.76 Ám | 30 Áin | 105 ░C | -65 ░C | 3 A | All | 0.1 " | 2.54 mm |
TE Connectivity AMP Connectors | Flash | 6 | Solder | Phosphor Bronze | 8.08 mm | 0.318 in | Unshrouded | Male Pin | Glass Filled Nylon Polyamide (PA) | Header | Gold | UL94 V-0 | Right Angle Through Hole | Board to Board Cable | 1 | Push-Pull | Black | 3.5 mm | 0.138 " | 0.11 in | 2.79 mm | Gold | Square | 0.76 Ám | 30 Áin | 105 ░C | -65 ░C | 3 A | All | 0.1 " | 2.54 mm |
TE Connectivity AMP Connectors | Flash | 5 | Solder | Phosphor Bronze | 8.08 mm | 0.318 in | Unshrouded | Male Pin | Glass Filled Nylon Polyamide (PA) | Header | Gold | UL94 V-0 | Right Angle Through Hole | Board to Board Cable | 1 | Push-Pull | Black | 3.5 mm | 0.138 " | 0.11 in | 2.79 mm | Gold | Square | 0.76 Ám | 30 Áin | 105 ░C | -65 ░C | 3 A | All | 0.1 " | 2.54 mm |

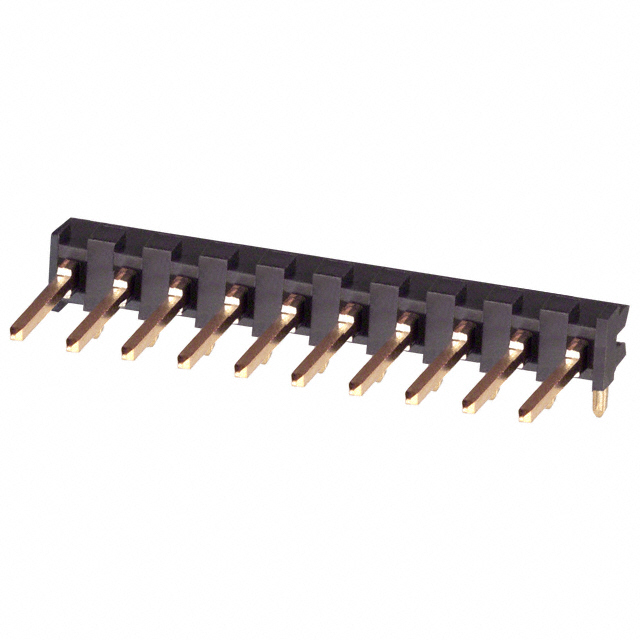

 TE Connectivity AMP Connectors | Flash | 10 | Solder | Phosphor Bronze | 8.08 mm | 0.318 in | Unshrouded | Male Pin | Glass Filled Nylon Polyamide (PA) | Header | Gold | UL94 V-0 | Right Angle Through Hole | Board to Board Cable | 1 | Push-Pull | Black | 3.5 mm | 0.138 " | 0.11 in | 2.79 mm | Gold | Square | 0.76 Ám | 30 Áin | 105 ░C | -65 ░C | 3 A | All | 0.1 " | 2.54 mm |
 TE Connectivity AMP Connectors | Flash | 2 | Solder | Phosphor Bronze | 8.08 mm | 0.318 in | Unshrouded | Male Pin | Glass Filled Nylon Polyamide (PA) | Header | Gold | UL94 V-0 | Right Angle Through Hole | Board to Board Cable | 1 | Push-Pull | Black | 3.5 mm | 0.138 " | 0.11 in | 2.79 mm | Gold | Square | 0.76 Ám | 30 Áin | 105 ░C | -65 ░C | 3 A | All | 0.1 " | 2.54 mm |
