PPTC262 Series

Catalog

CONN HDR 52POS 0.1 TIN PCB R/A

Part	Contact Shape	Insulation Material	Contact Material	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Number of Rows [custom]	Current Rating (Amps)	Contact Type	Material Flammability Rating	Contact Finish - Post	Fastening Type	Number of Positions	Voltage Rating	Insulation Color	Termination	Insulation Height [z]	Insulation Height [z]	Pitch - Mating	Pitch - Mating	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height

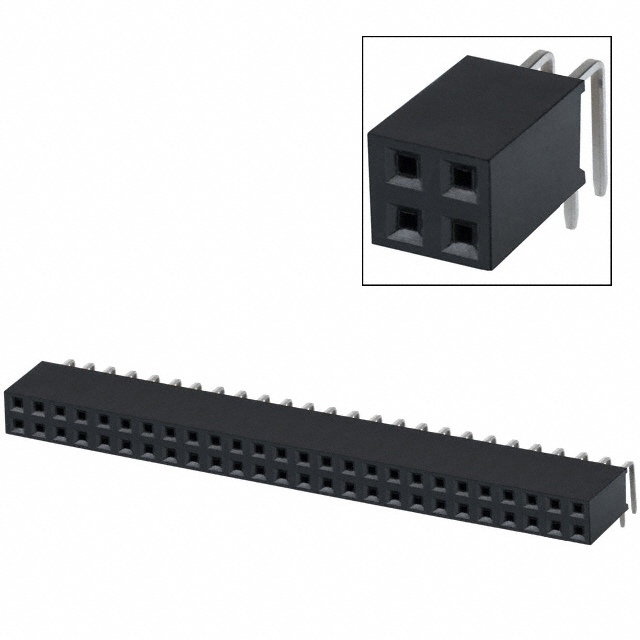

Sullins Connector Solutions PPTC262LJBN-RC	Square	Polyester	Phosphor Bronze	Header	0.1 in	2.54 mm	-40 C	105 ░C	Right Angle Through Hole	All	0.124 in	3.15 mm	2	3 A	Female Socket	UL94 V-0	Tin	Push-Pull	52	250 V	Black	Solder	0.2 in	5.08 mm	0.1 "	2.54 mm

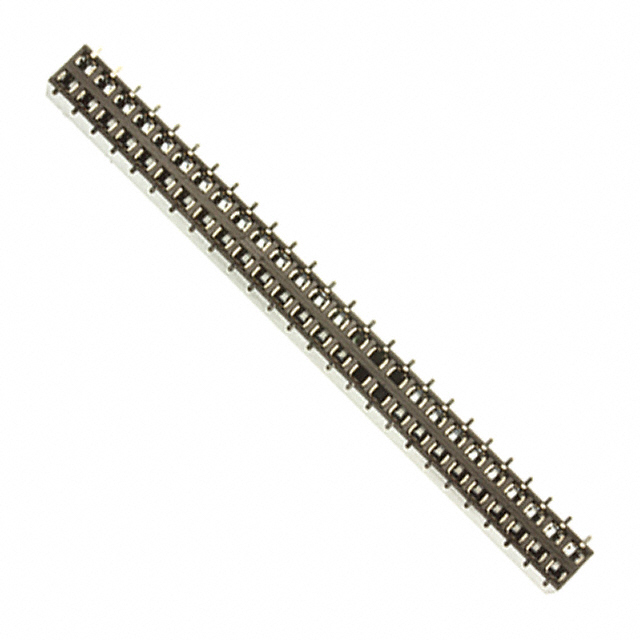

Sullins Connector Solutions PPTC262KFMS	Square	Polyester	Phosphor Bronze	Header	0.1 in	2.54 mm	-40 C	125 °C	Surface Mount	All			2	3 A	Female Socket	UL94 V-0	Tin	Push-Pull	52	250 V	Black	Solder	0.299 "		0.1 "	2.54 mm	7.6 mm

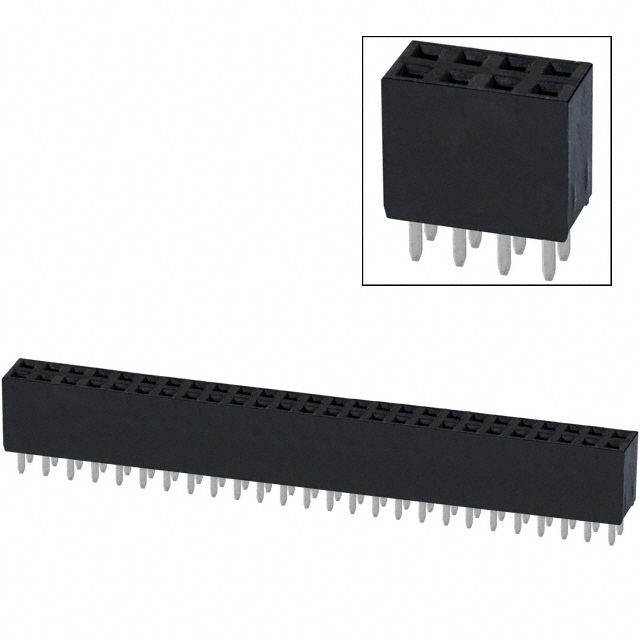

Sullins Connector Solutions PPTC262LFBN	Square	Polyester	Phosphor Bronze	Header	0.1 in	2.54 mm	-40 C	105 ░C	Through Hole	All			2	3 A	Female Socket	UL94 V-0	Tin	Push-Pull	52	250 V	Black	Solder			0.1 "	2.54 mm	8.51 mm	0.126 "	3.2 mm	0.335 "
