7025 Series

Catalog

HOOK UP WIRE, IRRADIATED POLYOLEFIN INSULATION, 7025 WHITE 1000 FT ROHS COMPLIANT: YES

Part	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Voltage	Ratings	Length	Length	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]	Qualification	Length [x]	Length [x]
ALPHA WIRE 7025 WH001	Hook-Up	0.072 in	1.83 mm	19	32 AWG	20 AWG	300 VDC	UL Style 3266	304.8 m	1000 ft	Copper Tinned	0.41 mm	0.016 in	White	Polyethylene (XLPE) Irradiated	-55 C	125 °C	MIL-W-16878E Type C

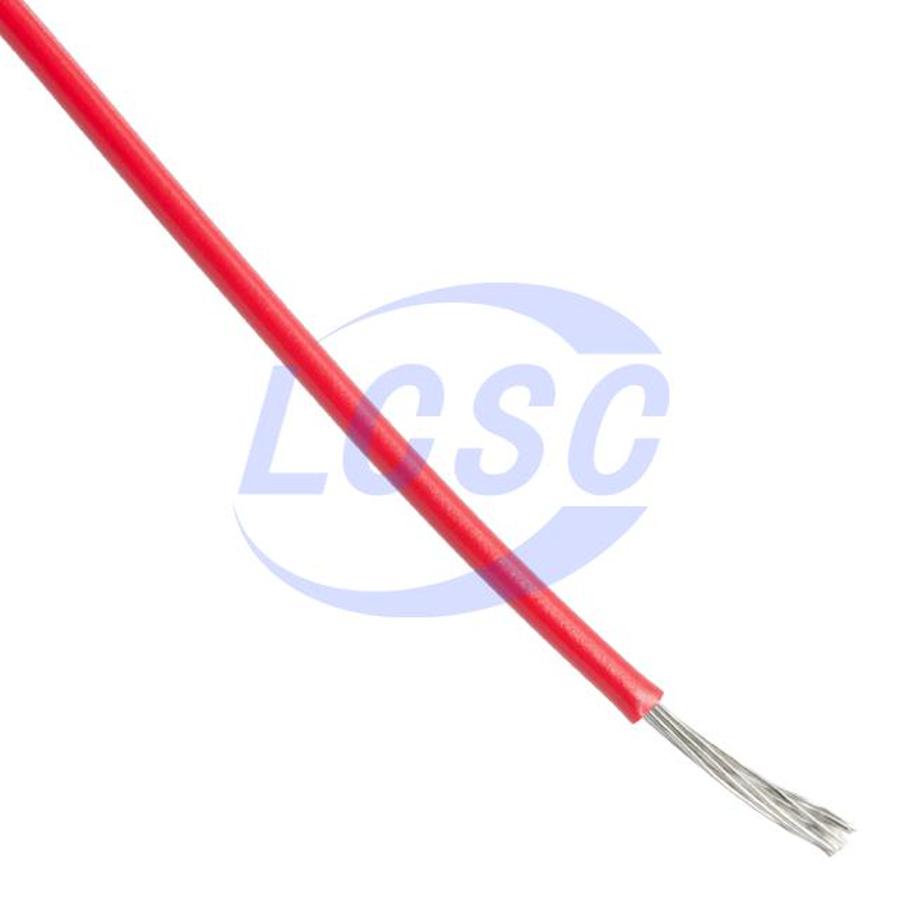

ALPHA WIRE 7025 RD001	Hook-Up	0.072 in	1.83 mm	19	32 AWG	20 AWG	300 VDC	UL Style 3266	304.8 m	1000 ft	Copper Tinned	0.41 mm	0.016 in	Red	Polyethylene (XLPE) Irradiated	-55 C	125 °C	MIL-W-16878E Type C
ALPHA WIRE 7025 BK001	Hook-Up	0.072 in	1.83 mm	19	32 AWG	20 AWG	300 VDC	UL Style 3266	304.8 m	1000 ft	Copper Tinned	0.41 mm	0.016 in	Black	Polyethylene (XLPE) Irradiated	-55 C	125 °C	MIL-W-16878E Type C
ALPHA WIRE 7025 BK005	Hook-Up	0.072 in	1.83 mm	19	32 AWG	20 AWG	300 VDC	UL Style 3266			Copper Tinned	0.41 mm	0.016 in	Black	Polyethylene (XLPE) Irradiated	-55 C	125 °C	MIL-W-16878E Type C	100 ft	30.5 m
ALPHA WIRE 7025 RD005	Hook-Up	0.072 in	1.83 mm	19	32 AWG	20 AWG	300 VDC	UL Style 3266			Copper Tinned	0.41 mm	0.016 in	Red	Polyethylene (XLPE) Irradiated	-55 C	125 °C	MIL-W-16878E Type C	100 ft	30.5 m
ALPHA WIRE 7025 WH005	Hook-Up	0.072 in	1.83 mm	19	32 AWG	20 AWG	300 VDC	UL Style 3266			Copper Tinned	0.41 mm	0.016 in	White	Polyethylene (XLPE) Irradiated	-55 C	125 °C	MIL-W-16878E Type C	100 ft	30.5 m
