M33310 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

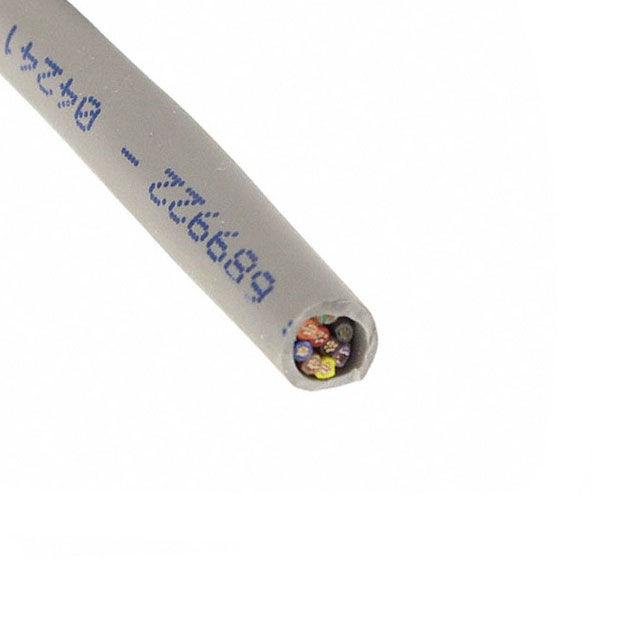

CABLE 10COND 22AWG SLATE 100'
| Part | Ratings | Wire Gauge | Length [x] | Length [x] | Cable Type | Number of Conductors [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Insulation | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | UL Style 2576 | 22 AWG | 100 ft | 30.5 m | Multi-Conductor | 10 | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | 28 AWG | 7 | Copper Tinned | 6.78 mm | 0.267 in | Slate | 300 VDC | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | ||
 ALPHA WIRE | UL Style 2576 | 22 AWG | Multi-Conductor | 10 | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | 28 AWG | 7 | Copper Tinned | 6.78 mm | 0.267 in | Slate | 300 VDC | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft |
