EN3P2F Series

Catalog

CONN RCPT FMALE 2P GOLD SLDR CUP

Part	Contact Material	Current Rating (Amps)	Material Flammability Rating	Contact Finish - Mating	Applications	Ingress Protection	Number of Positions	Shielding	Color	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Voltage Rating	Orientation	Mounting Feature	Fastening Type	Connector Type	Insert Material	Termination	Mounting Type

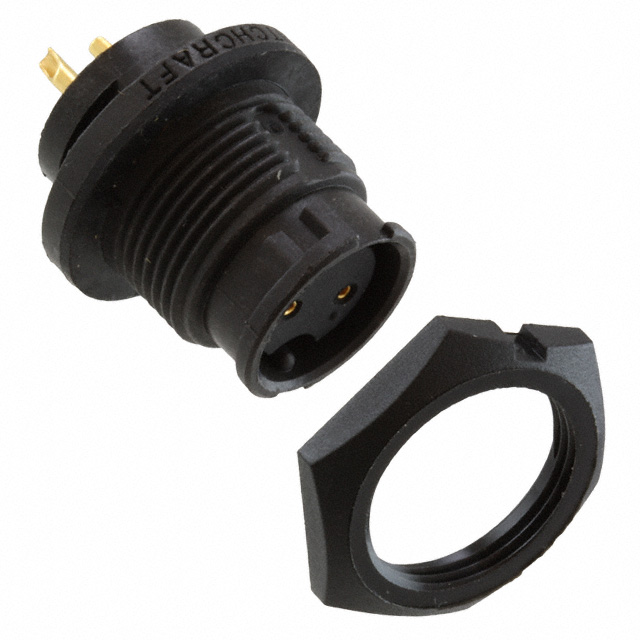

Switchcraft Inc. EN3P2FX	Copper Alloy	7.5 A	UL94 V-0	Gold	General Purpose Instrumentation Marine Medical	IP66/IP68	2	Unshielded	Black	65 °C	-40 °C	Plastic	250 VAC	Keyed	Bulkhead - Front Side Nut	Bayonet Lock	Receptacle Female Sockets	Elastomer
Switchcraft Inc. EN3P2F16PX	Copper Alloy	13 A	UL94 V-0	Gold	General Purpose Instrumentation Marine Medical	IP66/IP68	2	Unshielded	Black	65 °C	-40 °C	Plastic	250 VAC	Keyed	Bulkhead - Front Side Nut	Bayonet Lock	Receptacle Female Sockets	Elastomer	Solder	Panel Mount Through Hole
Switchcraft Inc. EN3P2FPX	Copper Alloy	7.5 A	UL94 V-0	Gold	General Purpose Instrumentation Marine Medical	IP66/IP68	2	Unshielded	Black	65 °C	-40 °C	Plastic	250 VAC	Keyed	Bulkhead - Front Side Nut	Bayonet Lock	Receptacle Female Sockets	Elastomer	Solder	Panel Mount Through Hole
Switchcraft Inc. EN3P2FCX	Copper Alloy	7.5 A	UL94 V-0	Gold	General Purpose Instrumentation Marine Medical	IP66/IP68	2	Unshielded	Black	65 °C	-40 °C	Plastic	250 VAC	Keyed	Bulkhead - Front Side Nut	Bayonet Lock	Receptacle Female Sockets	Elastomer	Crimp
Switchcraft Inc. EN3P2FRAPCX	Copper Alloy	7.5 A	UL94 V-0	Gold	General Purpose Instrumentation Marine Medical	IP66/IP68	2	Unshielded	Black	65 °C	-40 °C	Plastic	250 VAC	Keyed	Bulkhead - Front Side Nut	Bayonet Lock	Receptacle Female Sockets	Elastomer	Solder	Panel Mount Right Angle Through Hole
