09330322 Series
Manufacturer: HARTING
Beta
⌘K

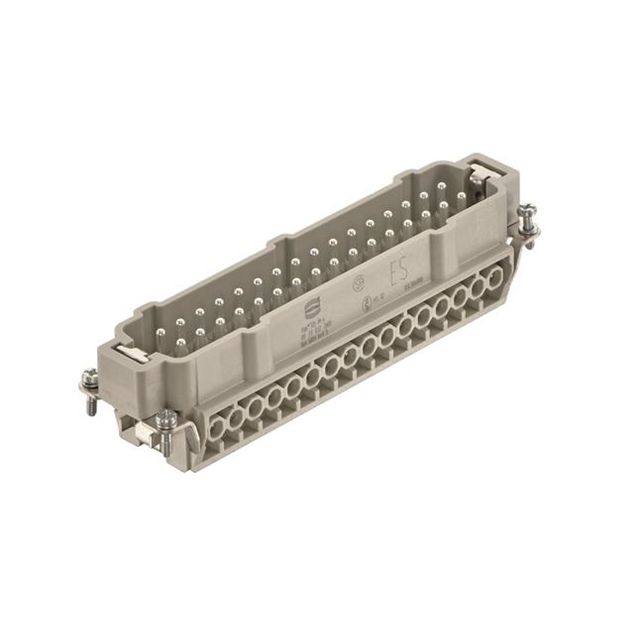

HEAVY DUTY CONNECTOR, HAN E SERIES, INSERT, 32 CONTACTS, 32B, PLUG, SCREW PIN
| Part | Material Flammability Rating | Color | Contact Material | Contact Finish | Housing Material | Current Rating (Amps) | Termination Style | Size | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Connector Type | Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | UL94 V-0 | Gray | Copper Alloy | Silver | Polycarbonate (PC) | 16 A | Screw | L32B | 125 °C | -40 C | 500 V | Insert | Male |
 HARTING | UL94 V-0 | Gray | Copper Alloy | Silver | Polycarbonate (PC) | 16 A | Screw | L32B | 125 °C | -40 C | 500 V | Insert | Female |
