CFS-0400 Series

Catalog

DIP SWITCH, 4PST-NO, 0.1A, 6VDC, SMD ROHS COMPLIANT: YES

Part	Length [custom]	Length	Body Material	Electrical Life	Number of Positions	Features	Contact Finish	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Voltage Rating	Termination Style	Pitch	Pitch	Actuator Level	Height Above Board [z]	Height Above Board [z]	Circuit	Mounting Type	Current Rating (Amps)
Nidec Components Corporation CFS-0400TB	0.457 in	11.61 mm	Polyphenylene Sulfide (PPS)	1000 Cycles	4	Tape Seal	Gold	Slide (Standard)	85 °C	-40 C	Copper Alloy	6 V	Gull Wing	2.54 mm	0.1 "	Flush Recessed	3.7 mm	0.146 in	SPST	Surface Mount	100 mA

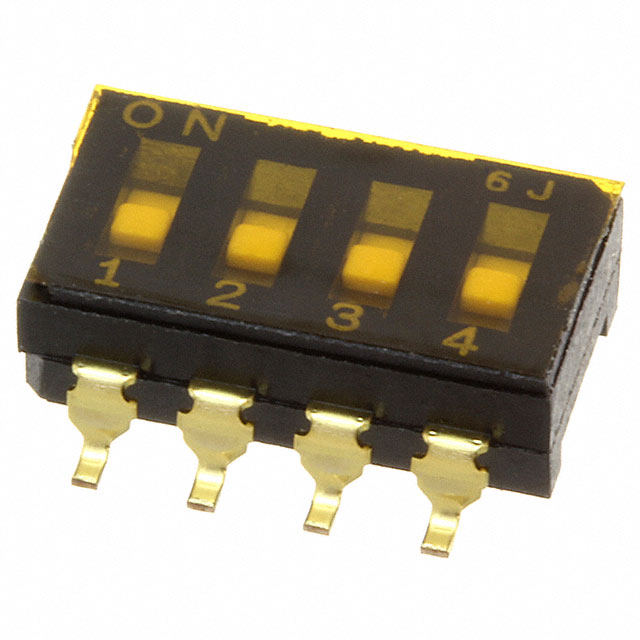

Nidec Components Corporation CFS-0400MB	0.457 in	11.61 mm	Polyphenylene Sulfide (PPS)	1000 Cycles	4	Tape Seal	Gold	Slide (Standard)	85 °C	-40 C	Copper Alloy	6 V	Gull Wing	2.54 mm	0.1 "	Flush Recessed	3.7 mm	0.146 in	SPST	Surface Mount	100 mA
Nidec Components Corporation CFS-0400TA	0.457 in	11.61 mm	Polyphenylene Sulfide (PPS)	1000 Cycles	4	Tape Seal	Gold	Slide (Standard)	85 °C	-40 C	Copper Alloy	6 V	J Lead	2.54 mm	0.1 "	Flush Recessed	3.9 mm	0.154 in	SPST	Surface Mount	100 mA

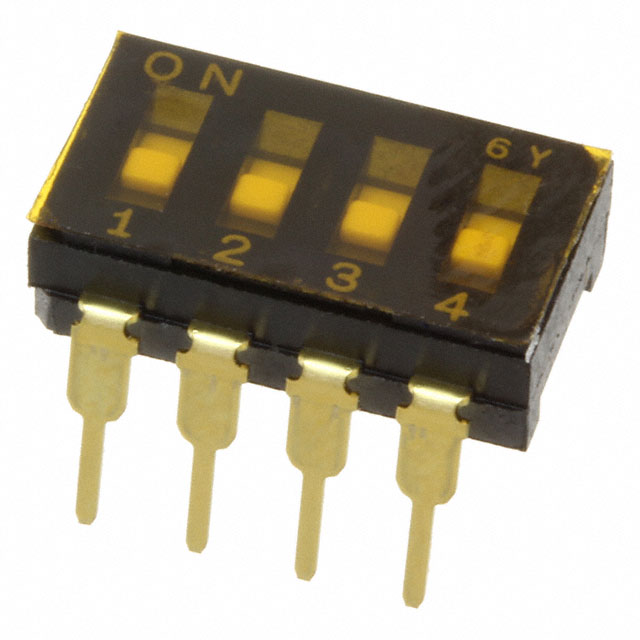

Nidec Components Corporation CFS-0400MC	0.457 in	11.61 mm	Polyphenylene Sulfide (PPS)	1000 Cycles	4	Tape Seal	Gold	Slide (Standard)	85 °C	-40 C	Copper Alloy	6 V	PC Pin	2.54 mm	0.1 "	Flush Recessed	4.5 mm	0.177 in	SPST	Through Hole	100 mA
