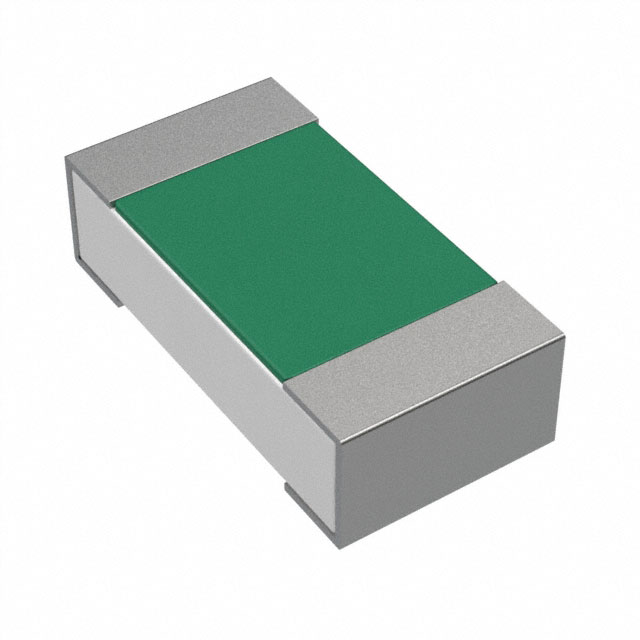

SG73S1 Series

Manufacturer: KOA Speer Electronics, Inc.

Catalog

Catalog

RES 13.7K OHM 0.5% 1/5W 0603

...

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Number of Terminations [custom]	Resistance	Composition	Ratings	Features	Temperature Coefficient	Package / Case	Package / Case	Power (Watts)	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Supplier Device Package	Size / Dimension [y]	Height - Seated (Max)
KOA Speer Electronics, Inc. SG73S1JTTD1372D	0.031 in	1.6 mm	0.8 mm	0.063 "	2	13700 Ohms	Thick Film	AEC-Q200	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	100 ppm/°C	1608 Metric	0603	0.2 W	0.2 W	155 C	-55 C	0.55 mm	0.022 in	0.5 %
KOA Speer Electronics, Inc. SG73S1JTTD28R7D	0.031 in	1.6 mm	0.8 mm	0.063 "	2	28.7 Ohms	Thick Film	AEC-Q200	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	100 ppm/°C	1608 Metric	0603	0.2 W	0.2 W	155 C	-55 C	0.55 mm	0.022 in	0.5 %

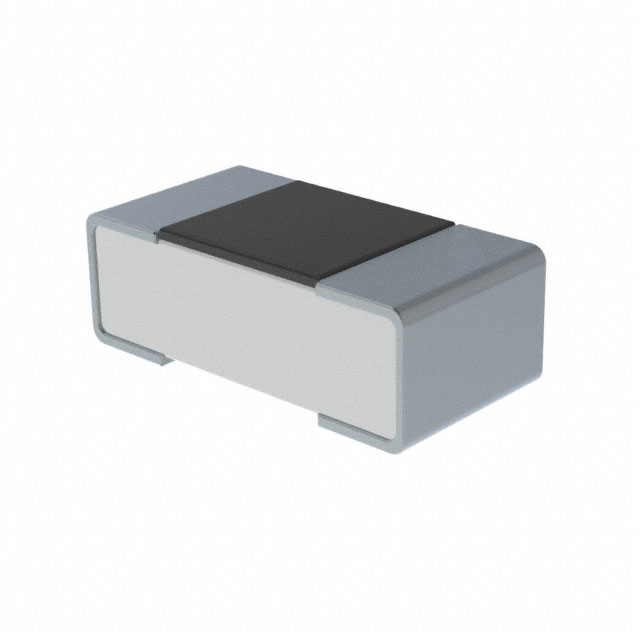

KOA Speer Electronics, Inc. SG73S1ETTP17R4F	0.02 in	1 mm		0.039 "	2	17.4 Ohms	Thick Film	AEC-Q200	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	200 ppm/°C		0402 (1005 Metric)	0.125 W	0.125 W	155 C	-55 C		0.016 in	1 %	0402	0.5 mm	0.4 mm
KOA Speer Electronics, Inc. SG73S1JTTD93R1F	0.031 in	1.6 mm	0.8 mm	0.063 "	2	93.1 Ohms	Thick Film	AEC-Q200	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	100 ppm/°C	1608 Metric	0603	0.2 W	0.2 W	155 C	-55 C	0.55 mm	0.022 in	1 %
KOA Speer Electronics, Inc. SG73S1ETTP6R2J	0.02 in	1 mm		0.039 "	2	6.2 Ohms	Thick Film	AEC-Q200	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	200 ppm/°C		0402 (1005 Metric)	0.125 W	0.125 W	155 C	-55 C		0.016 in	5 %	0402	0.5 mm	0.4 mm
KOA Speer Electronics, Inc. SG73S1ETTP9100F	0.02 in	1 mm		0.039 "	2	910 Ohms	Thick Film	AEC-Q200	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	200 ppm/°C		0402 (1005 Metric)	0.125 W	0.125 W	155 C	-55 C		0.016 in	1 %	0402	0.5 mm	0.4 mm
KOA Speer Electronics, Inc. SG73S1JTTD64R9F	0.031 in	1.6 mm	0.8 mm	0.063 "	2	64.9 Ohms	Thick Film	AEC-Q200	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	100 ppm/°C	1608 Metric	0603	0.2 W	0.2 W	155 C	-55 C	0.55 mm	0.022 in	1 %
KOA Speer Electronics, Inc. SG73S1JTTD3243D	0.031 in	1.6 mm	0.8 mm	0.063 "	2		Thick Film	AEC-Q200	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	100 ppm/°C	1608 Metric	0603	0.2 W	0.2 W	155 C	-55 C	0.55 mm	0.022 in	0.5 %
KOA Speer Electronics, Inc. SG73S1JTTD623J	0.031 in	1.6 mm	0.8 mm	0.063 "	2	62 kOhms	Thick Film	AEC-Q200	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	100 ppm/°C	1608 Metric	0603	0.2 W	0.2 W	155 C	-55 C	0.55 mm	0.022 in	5 %
KOA Speer Electronics, Inc. SG73S1JTTD2872F	0.031 in	1.6 mm	0.8 mm	0.063 "	2	28.7 kOhms	Thick Film	AEC-Q200	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	100 ppm/°C	1608 Metric	0603	0.2 W	0.2 W	155 C	-55 C	0.55 mm	0.022 in	1 %
