LP5912-Q1 Series

Automotive, 500-mA low-noise low-IQ low-dropout voltage regulator with reverse current protection

Catalog

Automotive, 500-mA low-noise low-IQ low-dropout voltage regulator with reverse current protection

Part	Mounting Type	Voltage Dropout (Max) [Max]	Output Type	Current - Quiescent (Iq)	Supplier Device Package	Current - Supply (Max) [Max]	Number of Regulators	Voltage - Input (Max) [Max]	Output Configuration	Protection Features	PSRR [Min]	PSRR [Max]	Control Features	Current - Output	Operating Temperature [Min]	Operating Temperature [Max]	Regulator Type	Supplied Contents	Channels per IC	Voltage - Output	Voltage - Input [Max]	Voltage - Input [Min]	Utilized IC / Part	Board Type	Grade	Voltage - Output (Min/Fixed)	Qualification
Texas Instruments LP5912-3.0DRVR	Surface Mount	0.25 V	1.81 mOhm	55 µA	6-WSON (2x2)	600 µA	1	6.5 V	Positive	Over Temperature Reverse Polarity Short Circuit	40 dB	80 dB	Enable Power Good Soft Start	500 mA	-40 °C	125 ¯C

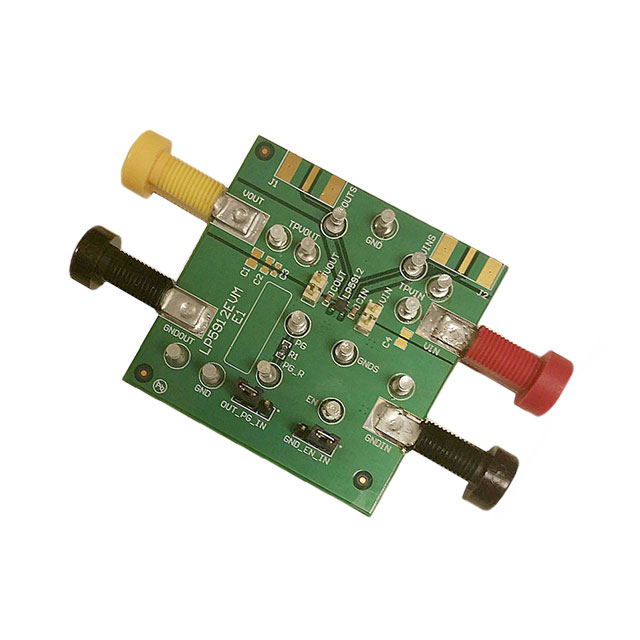

Texas Instruments LP5912DRV18EVM														500 mA			Positive Fixed	Board(s)	1 - Single	1.8 V	6.5 V	1.6 V	LP5912	Fully Populated
Texas Instruments LP5912Q1.2DRVTQ1	Surface Mount		1.81 mOhm	55 µA	6-WSON (2x2)	600 µA	1	6.5 V	Positive	Over Temperature Reverse Polarity Short Circuit	40 dB	80 dB	Enable Power Good Soft Start	500 mA	-40 °C	125 ¯C									Automotive	1.2 V	AEC-Q100
Texas Instruments LP5912-1.5DRVT	Surface Mount		1.81 mOhm	55 µA	6-WSON (2x2)	600 µA	1	6.5 V	Positive	Over Temperature Reverse Polarity Short Circuit	40 dB	80 dB	Enable Power Good Soft Start	500 mA	-40 °C	125 ¯C										1.5 V
Texas Instruments LP5912-5.0DRVR	Surface Mount	0.18 V	1.81 mOhm	55 µA	6-WSON (2x2)	600 µA	1	6.5 V	Positive	Over Temperature Reverse Polarity Short Circuit	40 dB	80 dB	Enable Power Good Soft Start	500 mA	-40 °C	125 ¯C										5 V
Texas Instruments LP5912Q3.0DRVTQ1	Surface Mount	0.25 V	1.81 mOhm	55 µA	6-WSON (2x2)	600 µA	1	6.5 V	Positive	Over Temperature Reverse Polarity Short Circuit	40 dB	80 dB	Enable Power Good Soft Start	500 mA	-40 °C	125 ¯C									Automotive		AEC-Q100
Texas Instruments LP5912-2.8DRVT	Surface Mount	0.25 V	1.81 mOhm	55 µA	6-WSON (2x2)	600 µA	1	6.5 V	Positive	Over Temperature Reverse Polarity Short Circuit	40 dB	80 dB	Enable Power Good Soft Start	500 mA	-40 °C	125 ¯C										2.8 V
Texas Instruments LP5912Q1.1DRVTQ1	Surface Mount		1.81 mOhm	55 µA	6-WSON (2x2)	600 µA	1	6.5 V	Positive	Over Temperature Reverse Polarity Short Circuit	40 dB	80 dB	Enable Power Good Soft Start	500 mA	-40 °C	125 ¯C									Automotive	1.1 V	AEC-Q100
Texas Instruments LP5912Q2.8DRVTQ1	Surface Mount	0.25 V	1.81 mOhm	55 µA	6-WSON (2x2)	600 µA	1	6.5 V	Positive	Over Temperature Reverse Polarity Short Circuit	40 dB	80 dB	Enable Power Good Soft Start	500 mA	-40 °C	125 ¯C									Automotive	2.8 V	AEC-Q100
Texas Instruments LP5912-2.8DRVR	Surface Mount	0.25 V	1.81 mOhm	55 µA	6-WSON (2x2)	600 µA	1	6.5 V	Positive	Over Temperature Reverse Polarity Short Circuit	40 dB	80 dB	Enable Power Good Soft Start	500 mA	-40 °C	125 ¯C										2.8 V

Catalog

Automotive, 500-mA low-noise low-IQ low-dropout voltage regulator with reverse current protection

Key Features

• Qualified for Automotive ApplicationsAEC Q100-Qualified With the Following ResultsDevice Temperature Grade 1: –40°C to +125°C Ambient Operating Temperature RangeDevice HBM Classification Level 2Device CDM Classification Level C6Input Voltage Range: 1.6 V to 6.5 VOutput Voltage Range: 0.8 V to 5.5 VOutput Current up to 500 mALow Output-Voltage Noise: 12 µVRMSTypicalPSRR at 1 kHz: 75 dB TypicalOutput Voltage Tolerance (VOUT≥ 3.3 V): ±2%Low IQ(Enabled, No Load): 30 µA TypicalLow Dropout (VOUT≥ 3.3 V): 95 mV Typical at 500-mA LoadStable With 1-µF Ceramic Input and Output CapacitorsThermal-Overload and Short-Circuit ProtectionReverse Current ProtectionNo Noise Bypass Capacitor RequiredOutput Automatic Discharge for Fast TurnoffPower-Good Output With 140-µs Typical DelayInternal Soft-Start to Limit the In-rush Current–40°C to +125°C Operating Junction Temperature RangeQualified for Automotive ApplicationsAEC Q100-Qualified With the Following ResultsDevice Temperature Grade 1: –40°C to +125°C Ambient Operating Temperature RangeDevice HBM Classification Level 2Device CDM Classification Level C6Input Voltage Range: 1.6 V to 6.5 VOutput Voltage Range: 0.8 V to 5.5 VOutput Current up to 500 mALow Output-Voltage Noise: 12 µVRMSTypicalPSRR at 1 kHz: 75 dB TypicalOutput Voltage Tolerance (VOUT≥ 3.3 V): ±2%Low IQ(Enabled, No Load): 30 µA TypicalLow Dropout (VOUT≥ 3.3 V): 95 mV Typical at 500-mA LoadStable With 1-µF Ceramic Input and Output CapacitorsThermal-Overload and Short-Circuit ProtectionReverse Current ProtectionNo Noise Bypass Capacitor RequiredOutput Automatic Discharge for Fast TurnoffPower-Good Output With 140-µs Typical DelayInternal Soft-Start to Limit the In-rush Current–40°C to +125°C Operating Junction Temperature Range

Description

The LP5912-Q1 is low-noise LDO that can supply up to 500 mA of output current. Designed to meet the requirements of RF and analog circuits, the LP5912-Q1 device provides low noise, high PSRR, low quiescent current, and low line and load transient response. The LP5912-Q1 offers class-leading noise performance without a noise bypass capacitor and with the ability for remote output capacitance placement. The device is designed to work with a 1-µF input and a 1-µF output ceramic capacitor (no separate noise bypass capacitor required). This device is available with fixed output voltages from 0.8 V to 5.5 V in 25-mV steps. Contact Texas Instruments Sales for specific voltage option needs. The LP5912-Q1 is low-noise LDO that can supply up to 500 mA of output current. Designed to meet the requirements of RF and analog circuits, the LP5912-Q1 device provides low noise, high PSRR, low quiescent current, and low line and load transient response. The LP5912-Q1 offers class-leading noise performance without a noise bypass capacitor and with the ability for remote output capacitance placement. The device is designed to work with a 1-µF input and a 1-µF output ceramic capacitor (no separate noise bypass capacitor required). This device is available with fixed output voltages from 0.8 V to 5.5 V in 25-mV steps. Contact Texas Instruments Sales for specific voltage option needs.
