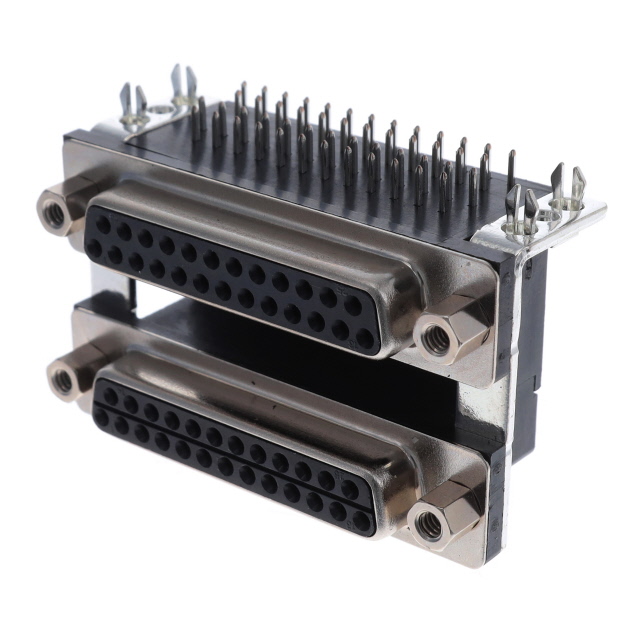

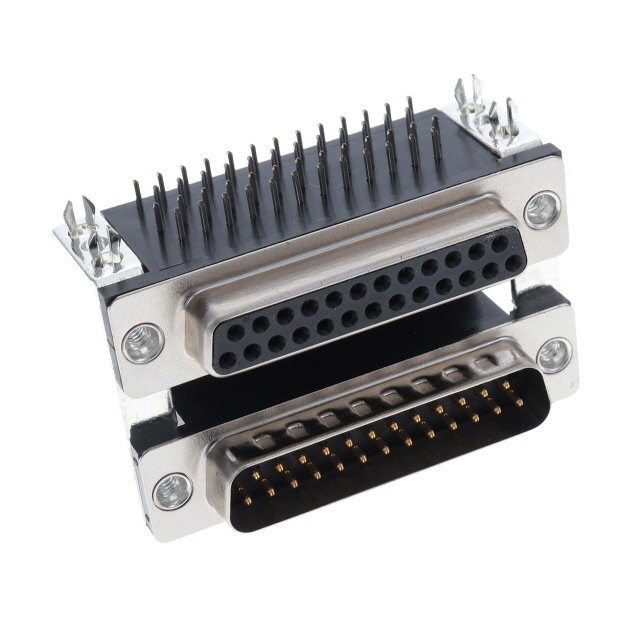

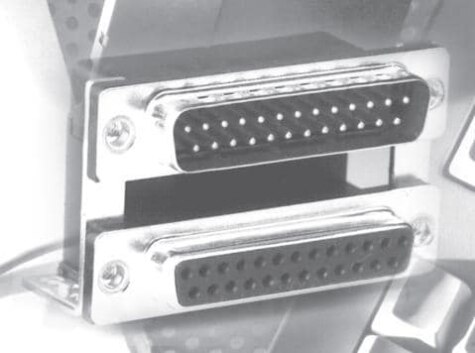

K42X-B25 Series
Manufacturer: Kycon, Inc.
Beta
⌘K
CONN D-SUB PLG/RCPT 25P R/A SLDR
| Part | Dielectric Material | Color | Voltage Rating | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Flange Feature | Number of Positions | Material Flammability Rating | Features | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Backset Spacing | Backset Spacing | Number of Rows [custom] | Shell Size, Connector Layout | Contact Finish | Contact Type | Termination | Connector Type | Current Rating (Amps) | Connector Style | Shell Material, Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Kycon, Inc. | Polybutylene Terephthalate (PBT) Glass Filled | Black | 30 VDC | Brass Phosphor Bronze | -55 C | 105 ░C | Housing/Shell | 4-40 | 25 | UL94 V-0 | Board Lock Grounding Indents Mounting Brackets | 30 Áin | 0.76 Ám | Right Angle Through Hole | 8.08 mm | 0.318 " | 2 | 3 (DB B) | Gold | Signal | Solder | Plug Male Pins Receptacle Female Sockets | 1.2 A | D-Sub - Stacked | Nickel Plated Steel | |
Kycon, Inc. | Polybutylene Terephthalate (PBT) Glass Filled | Black | 30 VDC | Phosphor Bronze | -55 C | 105 ░C | Housing/Shell | 4-40 | 25 | UL94 V-0 | Board Lock Mounting Brackets | 30 Áin | 0.76 Ám | Right Angle Through Hole | 8.08 mm | 0.318 " | 2 | 3 (DB B) | Gold | Signal | Solder | Receptacle Female Sockets | 1.2 A | D-Sub - Stacked | Nickel Plated Steel | |
 Kycon, Inc. | Polybutylene Terephthalate (PBT) Glass Filled | Black | 30 VDC | Brass Phosphor Bronze | -55 C | 105 ░C | Housing/Shell | 4-40 | 25 | UL94 V-0 | Board Lock Grounding Indents Mounting Brackets | Right Angle Through Hole | 8.08 mm | 0.318 " | 2 | 3 (DB B) | Gold | Signal | Solder | Plug Male Pins Receptacle Female Sockets | 1.2 A | D-Sub - Stacked | Nickel Plated Steel | Flash | ||
Kycon, Inc. | Polybutylene Terephthalate (PBT) Glass Filled | Black | 30 VDC | Brass Phosphor Bronze | -55 C | 105 ░C | 4-40 Mating Side Female Screwlock | 25 | UL94 V-0 | Board Lock Grounding Indents Mounting Brackets | Right Angle Through Hole | 8.08 mm | 0.318 " | 2 | 3 (DB B) | Gold | Signal | Solder | Plug Male Pins Receptacle Female Sockets | 1.2 A | D-Sub - Stacked | Nickel Plated Steel | Flash | |||
 Kycon, Inc. | Polybutylene Terephthalate (PBT) Glass Filled | Black | 30 VDC | Phosphor Bronze | -55 C | 105 ░C | 4-40 Mating Side Female Screwlock | 25 | UL94 V-0 | Board Lock Mounting Brackets | Right Angle Through Hole | 8.08 mm | 0.318 " | 2 | 3 (DB B) | Gold | Signal | Solder | Receptacle Female Sockets | 2 A | D-Sub - Stacked | Nickel Plated Steel | Flash |
