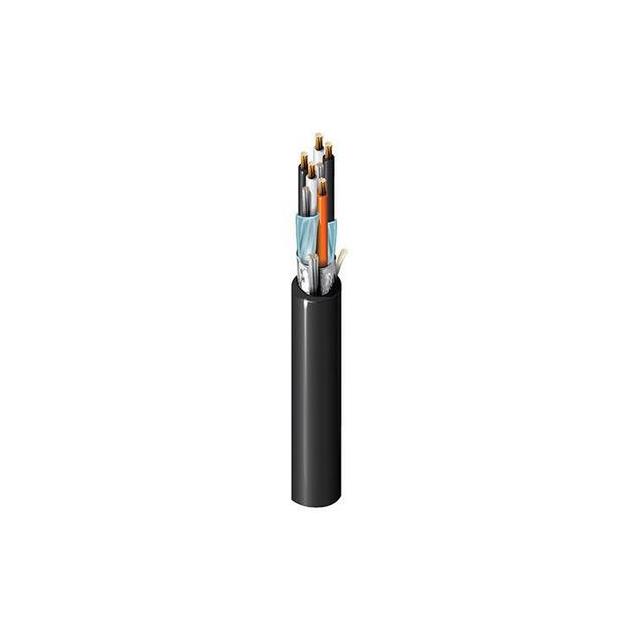

1492A Series
Manufacturer: Belden Inc.
Beta
⌘K
MULTI-PAIR 5COND 16/22AWG
| Part | Shield Material | Shield Coverage | Usage | Shield Type | Jacket Color | Conductor Strand [y] | Conductor Strand [x] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Length | Length [x] | Wire Gauge | Cable Type | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Ratings | Conductor Insulation | Number of Conductors | Jacket (Insulation) Material | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Instrumentation | Foil | Black | 24 AWG 30 AWG | 7 | 11.48 mm | 0.452 in | -30 ░C | 105 ░C | 2286 m | 7500 ft | 16 AWG 22 AWG | Multi-Pair | 300 VDC | 0.053 " | 1.346 mm | Copper Bare | UL Style 2464 | Poly-Vinyl Chloride (PVC) | 5 Conductors | Poly-Vinyl Chloride (PVC) | Drain Wire Rip Cord |
