QTLP610 Series

Manufacturer: Everlight Electronics Co Ltd

Catalog

LED RED CLEAR SMD R/A

Part	Lens Size [y]	Lens Size [x]	Lens Style	Current - Test	Lens Color	Wavelength - Dominant	Size / Dimension [x]	Size / Dimension [y]	Lens Transparency	Configuration	Supplier Device Package	Height (Max) [z]	Wavelength - Peak	Mounting Type	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Color	Viewing Angle	Package / Case
Everlight Electronics Co Ltd QTLP610CRAGTR	1 mm	2 mm	Rectangle with Domed Top	20 mA	Colorless	624 nm	3 mm	2 mm	Clear	Standard	SMD	1.1 mm	630 nm	Right Angle Surface Mount	2 V	45 mcd	Red	120 °	2-SMD No Lead
Everlight Electronics Co Ltd QTLP610C3TR	1 mm	2 mm	Rectangle with Domed Top	20 mA	Colorless	590 nm	3 mm	2 mm	Clear	Standard	SMD	1.1 mm	585 nm	Right Angle Surface Mount	2 V	7 mcd	Yellow	120 °	2-SMD No Lead
Everlight Electronics Co Ltd QTLP610CRYTR							3 mm	2 mm			SMD	1.1 mm		Right Angle Surface Mount					2-SMD No Lead
Everlight Electronics Co Ltd QTLP610C7TR	1 mm	2 mm	Rectangle with Domed Top	20 mA	Colorless	645 nm	3 mm	2 mm	Clear	Standard	SMD	1.1 mm	660 nm	Right Angle Surface Mount	1.9 V	20 mcd	Red	120 °	2-SMD No Lead
Everlight Electronics Co Ltd QTLP610CIGTR	1 mm	2 mm	Rectangle with Domed Top	20 mA	Colorless	525 nm	3 mm	2 mm	Clear	Standard	SMD	1.1 mm	520 nm	Right Angle Surface Mount	3.5 V	100 mcd	Green	120 °	2-SMD No Lead

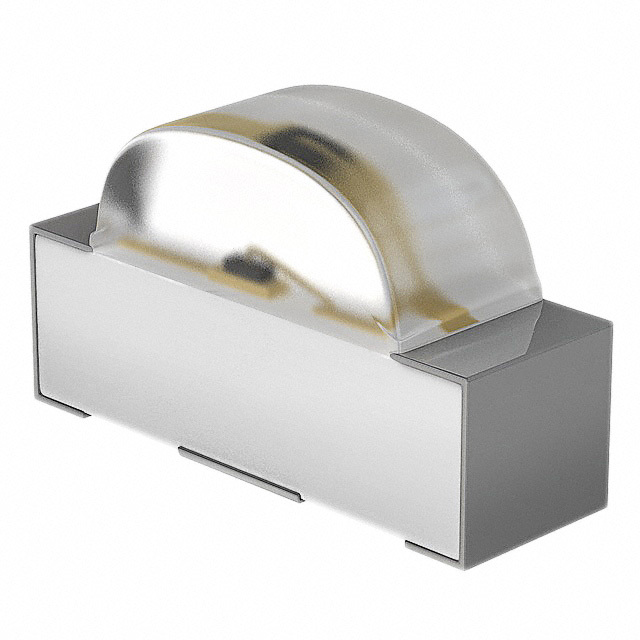

Everlight Electronics Co Ltd QTLP610CEBTR	1 mm	2 mm	Rectangle with Domed Top	20 mA	Colorless	475 nm	3 mm	2 mm	Clear	Standard	SMD	1.1 mm		Right Angle Surface Mount	2.95 V	17 mcd	Blue	120 °	2-SMD No Lead
Everlight Electronics Co Ltd QTLP610C2TR	1 mm	2 mm	Rectangle with Domed Top	20 mA	Colorless	630 nm	3 mm	2 mm	Clear	Standard	SMD	1.1 mm	635 nm	Right Angle Surface Mount	2 V	7 mcd	Red	120 °	2-SMD No Lead
Everlight Electronics Co Ltd QTLP610CYTR	1 mm	2 mm	Rectangle with Domed Top	20 mA	Colorless	589 nm	3 mm	2 mm	Clear	Standard	SMD	1.1 mm	590 nm	Right Angle Surface Mount	2 V	45 mcd	Yellow	120 °	2-SMD No Lead
Everlight Electronics Co Ltd QTLP610CETR	1 mm	2 mm	Rectangle with Domed Top	20 mA	Colorless	615 nm	3 mm	2 mm	Clear	Standard	SMD	1.1 mm	620 nm	Right Angle Surface Mount	2 V	45 mcd		120 °	2-SMD No Lead
