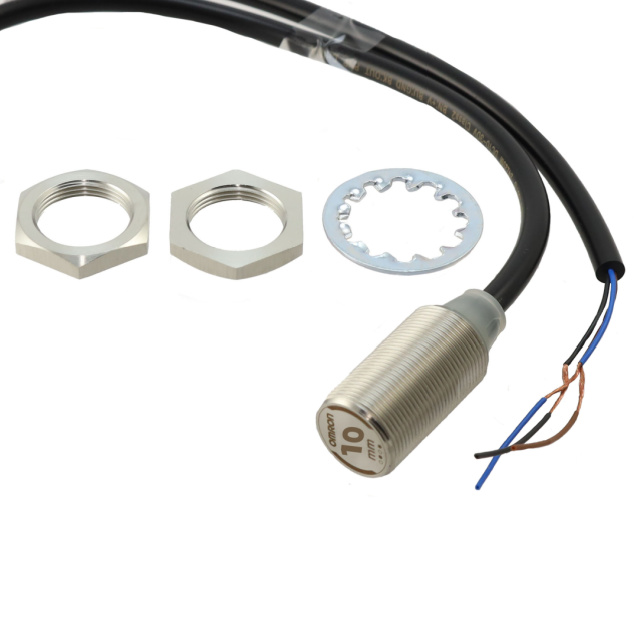

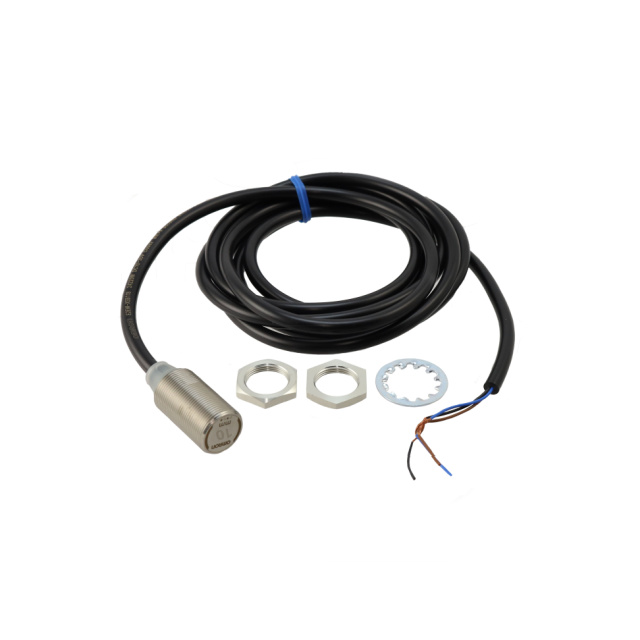

E2EW-X10 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
SENSOR PROX INDUCTIVE 10MM CYL
| Part | Shielding | Indicator [custom] | Termination Style | Output Type | Material - Body | Sensor Type | Ingress Protection | Package / Case | Voltage - Supply [Max] | Voltage - Supply [Min] | Sensing Distance | Sensing Distance | Operating Temperature [Min] | Operating Temperature [Max] | Response Frequency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div | Shielded | LED | Cable with Connector | PNP-NC 3-Wire | Stainless Steel | Inductive | IP67 | Cylinder Threaded - M30 | 30 VDC | 10 VDC | 0.394 in | 10 mm | 0 °C | 85 °C | 40 Hz |
Omron Electronics Inc-EMC Div | Shielded | LED | Cable Leads | 3-Wire NPN-NC/NO | Stainless Steel | Inductive | IP67 | Cylinder Threaded - M30 | 30 VDC | 10 VDC | 0.394 in | 10 mm | 0 °C | 85 °C | 40 Hz |
Omron Electronics Inc-EMC Div | Shielded | LED | Cable Leads | NPN-NO 3-Wire | Stainless Steel | Inductive | IP67 | Cylinder Threaded - M30 | 30 VDC | 10 VDC | 0.394 in | 10 mm | 0 °C | 85 °C | 40 Hz |
 Omron Electronics Inc-EMC Div | Shielded | LED | Cable Leads | PNP-NO 3-Wire | Stainless Steel | Inductive | IP67 | Cylinder Threaded - M18 | 30 VDC | 10 VDC | 0.394 in | 10 mm | 0 °C | 85 °C | 2 Hz |
Omron Electronics Inc-EMC Div | Shielded | LED | Cable Leads | PNP-NC/NO 3-Wire | Stainless Steel | Inductive | IP67 | Cylinder Threaded - M18 | 30 VDC | 10 VDC | 0.394 in | 10 mm | 0 °C | 85 °C | 2 Hz |
 Omron Electronics Inc-EMC Div | Shielded | LED | Cable Leads | PNP-NO 3-Wire | Stainless Steel | Inductive | IP67 | Cylinder Threaded - M18 | 30 VDC | 10 VDC | 0.394 in | 10 mm | 0 °C | 85 °C | 2 Hz |
Omron Electronics Inc-EMC Div | Shielded | LED | Cable Leads | PNP-NO 3-Wire | Stainless Steel | Inductive | IP67 | Cylinder Threaded - M18 | 30 VDC | 10 VDC | 0.394 in | 10 mm | 0 °C | 85 °C | 2 Hz |
Omron Electronics Inc-EMC Div | Shielded | LED | Cable with Connector | NPN-NC 3-Wire | Stainless Steel | Inductive | IP67 | Cylinder Threaded - M18 | 30 VDC | 10 VDC | 0.394 in | 10 mm | 0 °C | 85 °C | 2 Hz |
Omron Electronics Inc-EMC Div | Shielded | LED | Cable with Connector | PNP-NC/NO 3-Wire | Stainless Steel | Inductive | IP67 | Cylinder Threaded - M18 | 30 VDC | 10 VDC | 0.394 in | 10 mm | 0 °C | 85 °C | |
Omron Electronics Inc-EMC Div | Shielded | LED | Cable with Connector | PNP-NC/NO 3-Wire | Stainless Steel | Inductive | IP67 | Cylinder Threaded - M18 | 30 VDC | 10 VDC | 0.394 in | 10 mm | 0 °C | 85 °C | 2 Hz |
