Q5-2X-3/4 Series

Manufacturer: Qualtek

Catalog

HEATSHRINK 0.752" X 4' BLK 1=1PC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Shelf Life	Shrink Temperature	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Color	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Length [x]	Length [x]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Features	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Recovered Wall Thickness	Recovered Wall Thickness	Type	Material	Length	Length

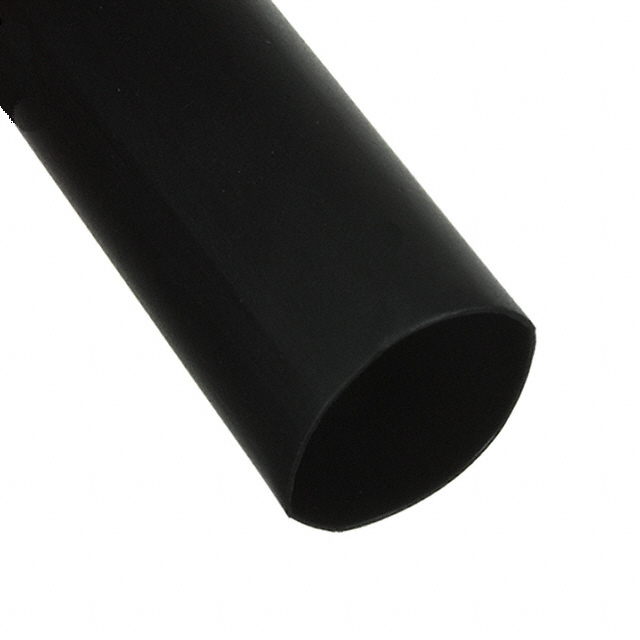

Qualtek Q5-2X-3/4-01-QB48IN-5	-45 °C	125 °C	60 Months	100 °C	40 °C	14 °F	-50 °F	40 °C	Black	9.53 mm	0.375 in	4 ft	1.22 m	19.1 mm	0.752 in	Adhesive Lined Self Extinguishing	1	2	0.9 mm	0.036 in	Tubing Flexible	Polyolefin (PO)

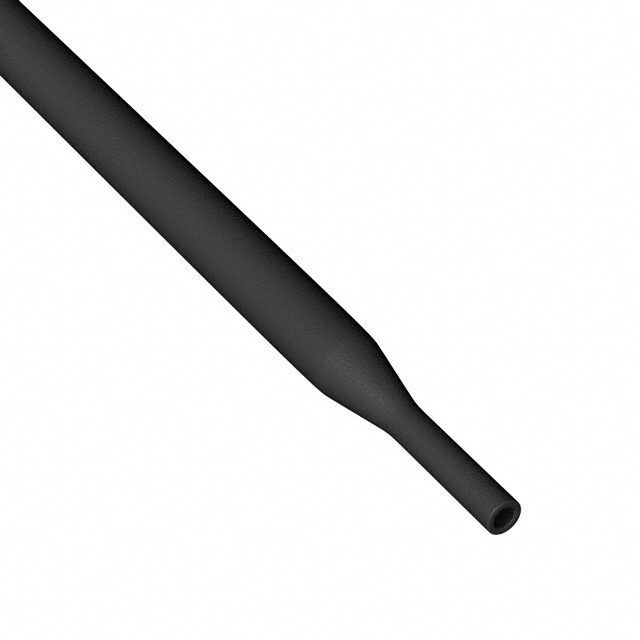

Qualtek Q5-2X-3/4-01-SS25M	-45 °C	125 °C	60 Months	100 °C	40 °C	14 °F	-50 °F	40 °C	Black	9.53 mm	0.375 in			19.1 mm	0.752 in	Adhesive Lined Self Extinguishing	1	2	0.9 mm	0.036 in	Tubing Flexible	Polyolefin (PO)	82 ft	25 m
