102978 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER R/A 12POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Number of Positions	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Contact Material	Insulation Color	Style	Number of Positions Loaded	Contact Length - Post [custom]	Contact Length - Post	Termination	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Insulation Height [z]	Insulation Height [z]	Connector Type	Contact Finish - Post	Shrouding	Contact Shape	Contact Length - Mating	Contact Length - Mating	Mounting Type	Material Flammability Rating	Contact Type	Insulation Material	Number of Positions [custom]
TE Connectivity AMP Connectors 4-102978-0-12	2.54 µm	100 µin	3 A	12	1	0.76 Ám	30 Áin	0.1 "	2.54 mm	Copper Alloy	Black	Board to Board Cable	All	0.11 in	2.79 mm	Solder	Gold	105 ░C	-65 ░C	Push-Pull	3.5 mm	0.138 "	Header Breakaway	Tin-Lead	Unshrouded	Square	8.08 mm	0.318 in	Right Angle Through Hole	UL94 V-0	Male Pin	Thermoplastic
TE Connectivity AMP Connectors 4-102978-0-09	2.54 µm	100 µin	3 A	9	1	0.76 Ám	30 Áin	0.1 "	2.54 mm	Copper Alloy	Black	Board to Board Cable	All	0.11 in	2.79 mm	Solder	Gold	105 ░C	-65 ░C	Push-Pull	3.5 mm	0.138 "	Header Breakaway	Tin-Lead	Unshrouded	Square	8.08 mm	0.318 in	Right Angle Through Hole	UL94 V-0	Male Pin	Thermoplastic
TE Connectivity AMP Connectors 4-102978-0-33	2.54 µm	100 µin	3 A		1	0.76 Ám	30 Áin	0.1 "	2.54 mm	Copper Alloy	Black	Board to Board Cable	All	0.11 in	2.79 mm	Solder	Gold	105 ░C	-65 ░C	Push-Pull	3.5 mm	0.138 "	Header Breakaway	Tin-Lead	Unshrouded	Square	8.08 mm	0.318 in	Right Angle Through Hole	UL94 V-0	Male Pin	Thermoplastic	33
TE Connectivity AMP Connectors 4-102978-0-29	2.54 µm	100 µin	3 A	29	1	0.76 Ám	30 Áin	0.1 "	2.54 mm	Copper Alloy	Black	Board to Board Cable	All	0.11 in	2.79 mm	Solder	Gold	105 ░C	-65 ░C	Push-Pull	3.5 mm	0.138 "	Header Breakaway	Tin-Lead	Unshrouded	Square	8.08 mm	0.318 in	Right Angle Through Hole	UL94 V-0	Male Pin	Thermoplastic
TE Connectivity AMP Connectors 4-102978-0-34	2.54 µm	100 µin	3 A		1	0.76 Ám	30 Áin	0.1 "	2.54 mm	Copper Alloy	Black	Board to Board Cable	All	0.11 in	2.79 mm	Solder	Gold	105 ░C	-65 ░C	Push-Pull	3.5 mm	0.138 "	Header Breakaway	Tin-Lead	Unshrouded	Square	8.08 mm	0.318 in	Right Angle Through Hole	UL94 V-0	Male Pin	Thermoplastic	34
TE Connectivity AMP Connectors 4-102978-0-19	2.54 µm	100 µin	3 A	19	1	0.76 Ám	30 Áin	0.1 "	2.54 mm	Copper Alloy	Black	Board to Board Cable	All	0.11 in	2.79 mm	Solder	Gold	105 ░C	-65 ░C	Push-Pull	3.5 mm	0.138 "	Header Breakaway	Tin-Lead	Unshrouded	Square	8.08 mm	0.318 in	Right Angle Through Hole	UL94 V-0	Male Pin	Thermoplastic
TE Connectivity AMP Connectors 4-102978-0-32	2.54 µm	100 µin	3 A		1	0.76 Ám	30 Áin	0.1 "	2.54 mm	Copper Alloy	Black	Board to Board Cable	All	0.11 in	2.79 mm	Solder	Gold	105 ░C	-65 ░C	Push-Pull	3.5 mm	0.138 "	Header Breakaway	Tin-Lead	Unshrouded	Square	8.08 mm	0.318 in	Right Angle Through Hole	UL94 V-0	Male Pin	Thermoplastic

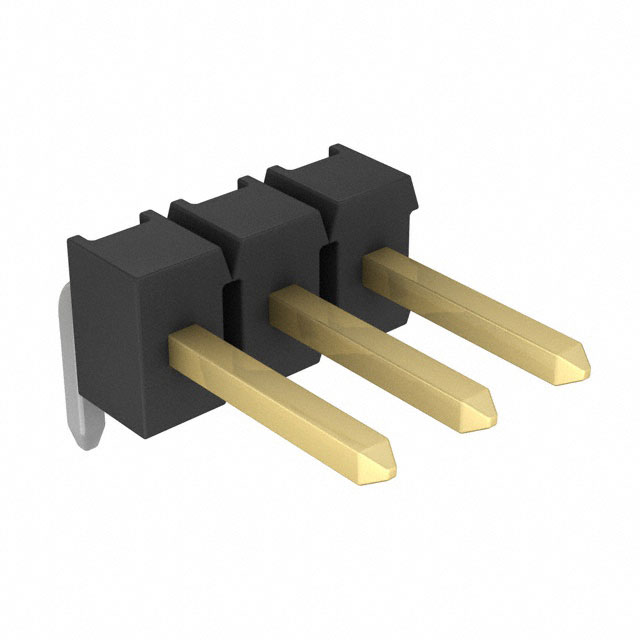

TE Connectivity AMP Connectors 4-102978-0-03	2.54 µm	100 µin	3 A		1	0.76 Ám	30 Áin	0.1 "	2.54 mm	Copper Alloy	Black	Board to Board Cable	All	0.11 in	2.79 mm	Solder	Gold	105 ░C	-65 ░C	Push-Pull	3.5 mm	0.138 "	Header Breakaway	Tin-Lead	Unshrouded	Square	8.08 mm	0.318 in	Right Angle Through Hole	UL94 V-0	Male Pin	Thermoplastic
TE Connectivity AMP Connectors 4-102978-0-13	2.54 µm	100 µin	3 A	13	1	0.76 Ám	30 Áin	0.1 "	2.54 mm	Copper Alloy	Black	Board to Board Cable	All	0.11 in	2.79 mm	Solder	Gold	105 ░C	-65 ░C	Push-Pull	3.5 mm	0.138 "	Header Breakaway	Tin-Lead	Unshrouded	Square	8.08 mm	0.318 in	Right Angle Through Hole	UL94 V-0	Male Pin	Thermoplastic
TE Connectivity AMP Connectors 4-102978-0-28	2.54 µm	100 µin	3 A	28	1	0.76 Ám	30 Áin	0.1 "	2.54 mm	Copper Alloy	Black	Board to Board Cable	All	0.11 in	2.79 mm	Solder	Gold	105 ░C	-65 ░C	Push-Pull	3.5 mm	0.138 "	Header Breakaway	Tin-Lead	Unshrouded	Square	8.08 mm	0.318 in	Right Angle Through Hole	UL94 V-0	Male Pin	Thermoplastic
