SM02B-GH Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

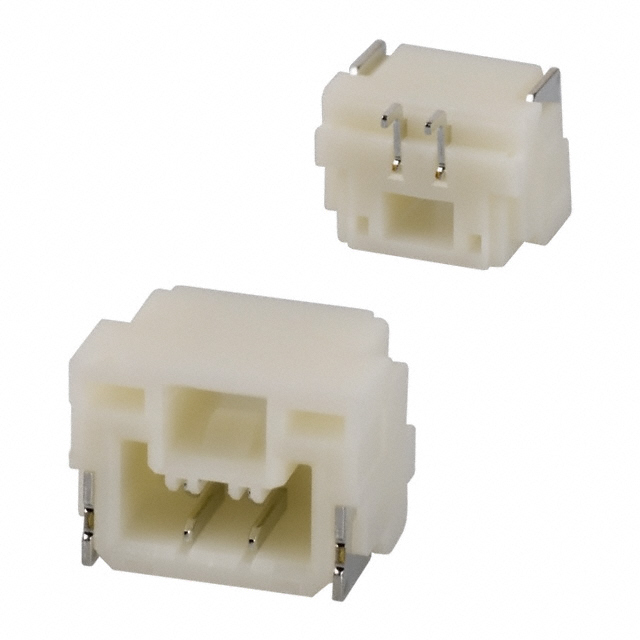

CONN HEADER SMD R/A 2POS 1.25MM
| Part | Voltage Rating | Contact Finish - Post | Contact Shape | Pitch - Mating | Pitch - Mating | Mounting Type | Fastening Type | Number of Positions | Style | Insulation Material | Insulation Color | Number of Positions Loaded | Features | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Shrouding | Material Flammability Rating | Contact Material | Termination | Contact Type | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 50 V | Tin | Rectangular | 0.049 in | 1.25 mm | Right Angle Surface Mount | Locking Ramp | 2 | Board to Cable/Wire | Nylon 9T Polyamide (PA9T) | Natural | All | Solder Retention | Header | 85 °C | -25 °C | 1 | Shrouded - 4 Wall | UL94 V-0 | Phosphor Bronze | Solder | Outer Shroud Contact | 4.25 mm | 0.167 " |
