BHR-40 Series
Manufacturer: Adam Tech
Beta
⌘K
CONN HEADER R/A 40POS 2.54MM
| Part | Contact Finish Thickness - Post | Current Rating (Amps) | Material Flammability Rating | Features | Number of Positions | Connector Type | Pitch - Mating | Pitch - Mating | Fastening Type | Number of Positions Loaded | Mounting Type | Contact Shape | Contact Finish Thickness - Mating | Contact Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Insulation Height | Insulation Height | Contact Material | Contact Length - Post [x] | Contact Length - Post [x] | Insulation Color | Insulation Material | Voltage Rating | Contact Finish - Post | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Style | Contact Finish - Mating | Number of Rows [custom] | Shrouding | Contact Length - Post | Contact Length - Post | Insulation Height [z] | Insulation Height [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

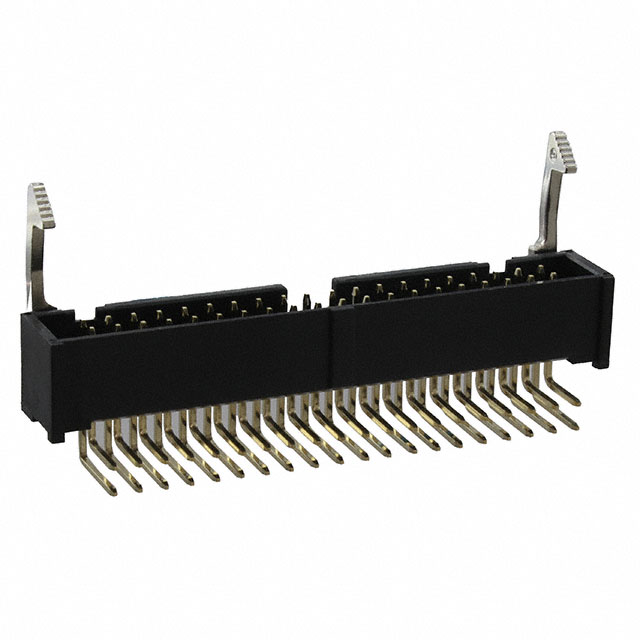

 Adam Tech | Flash | 3 A | UL94 V-0 | Keying Slot | 40 | Header | 0.1 " | 2.54 mm | Latch Lock/Eject Hooks Long | All | Right Angle Through Hole | Square | Flash | Male Pin | 0.1 in | 2.54 mm | 0.354 in | 9 mm | Brass | 0.126 " | 3.2 mm | Black | Polybutylene Terephthalate (PBT) Glass Filled | 350 VAC | Gold | Solder | -40 C | 105 ░C | Board to Board Cable | Gold | 2 | Shrouded - 4 Wall | ||||

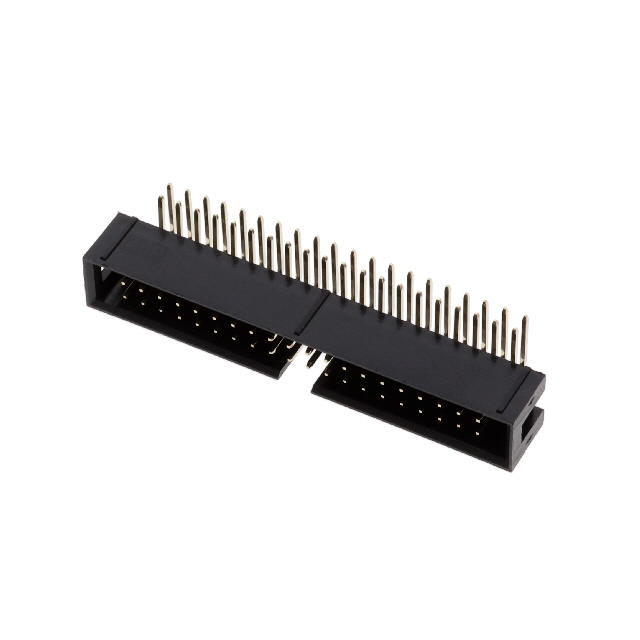

 Adam Tech | Flash | UL94 V-0 | Keying Slot | 40 | Header | 0.1 " | 2.54 mm | Push-Pull | All | Right Angle Through Hole | Square | Flash | Male Pin | 0.1 in | 2.54 mm | 0.356 " | 9.05 mm | Brass | 0.134 " | Black | Polybutylene Terephthalate (PBT) Glass Filled | 250 VAC | Gold | Solder | -40 C | 105 ░C | Board to Board Cable | Gold | 2 | Shrouded - 4 Wall | 3.4 mm | |||||

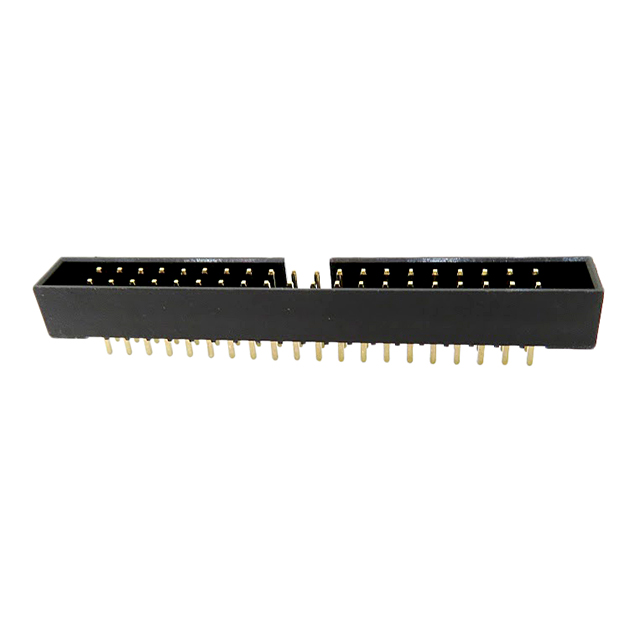

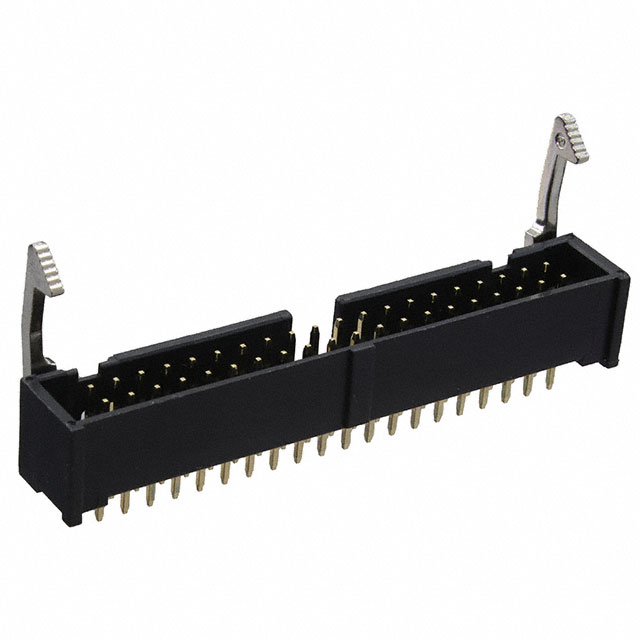

 Adam Tech | Flash | 3 A | UL94 V-0 | Keying Slot Polarizing Key | 40 | Header | 0.1 " | 2.54 mm | Push-Pull | All | Through Hole | Square | Flash | Male Pin | 0.1 in | 2.54 mm | 0.358 " | 9.1 mm | Brass | Black | Polybutylene Terephthalate (PBT) Glass Filled | 250 VAC | Gold | Solder | -40 C | 105 ░C | Board to Board Cable | Gold | 2 | Shrouded - 4 Wall | 3.3 mm | 0.13 " | ||||
 Adam Tech | Flash | 3 A | UL94 V-0 | Keying Slot Polarizing Key | 40 | Header | 0.1 " | 2.54 mm | Push-Pull | All | Through Hole | Square | Flash | Male Pin | 0.1 in | 2.54 mm | 0.358 " | 9.1 mm | Brass | Black | Polybutylene Terephthalate (PBT) | 250 VAC | Gold | Solder | -55 C | 105 ░C | Board to Board Cable | Gold | 2 | Shrouded - 4 Wall | 3.3 mm | 0.13 " | 8.8 mm | 0.346 in | ||
 Adam Tech | 3 A | UL94 V-0 | Keying Slot | 40 | Header | 0.1 " | 2.54 mm | Push-Pull | All | Surface Mount | Square | Flash | Male Pin | 0.1 in | 2.54 mm | 0.413 in | 10.49 mm | Brass | Black | Thermoplastic | 250 VAC | Tin | Solder | -40 C | 105 ░C | Board to Board Cable | Gold | 2 | Shrouded - 4 Wall |
