858-003 Series
Manufacturer: NorComp Inc.
Beta
⌘K

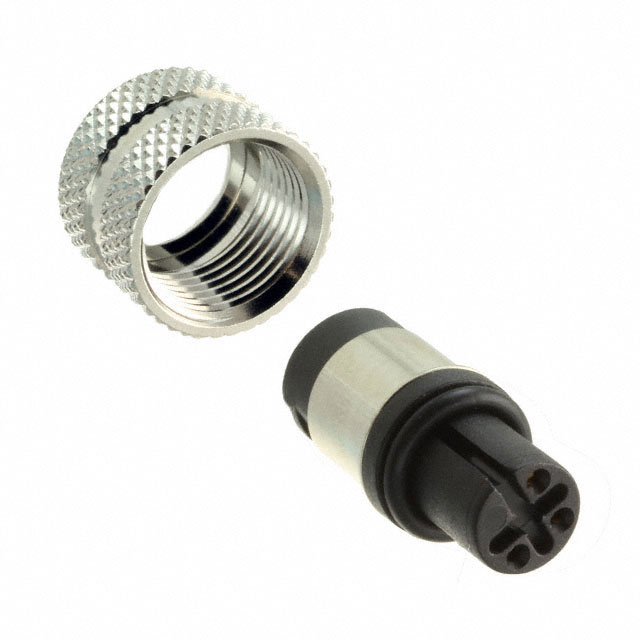

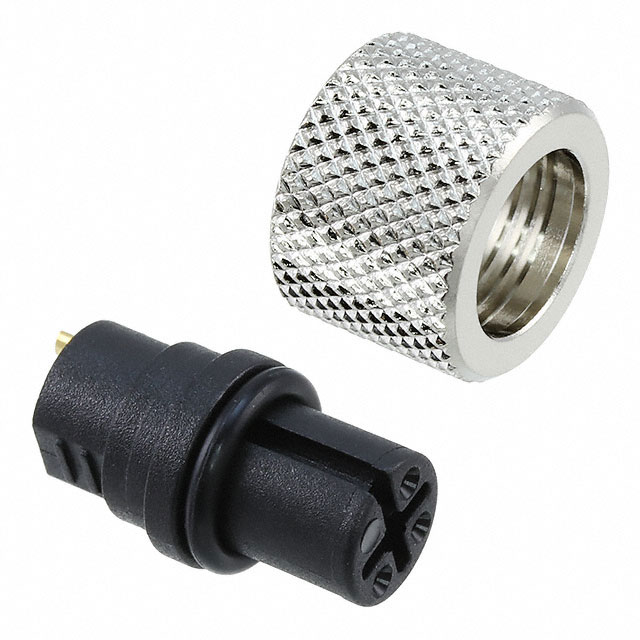

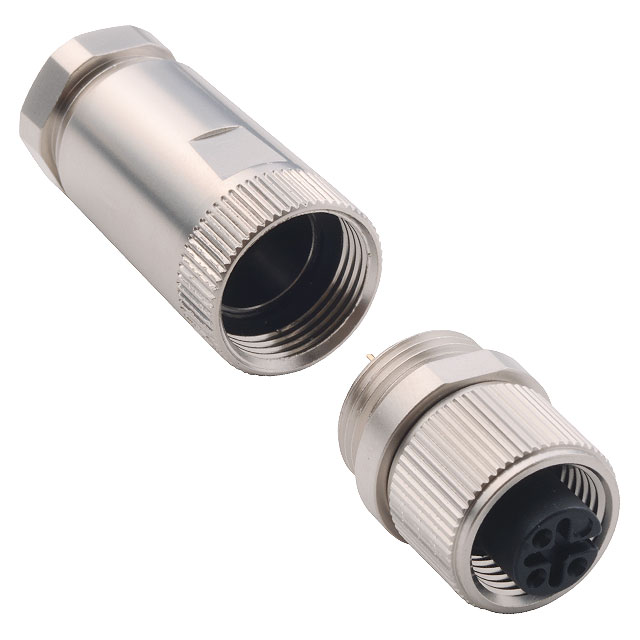

CONN PLUG FMALE 3POS SOLDER CUP
| Part | Features | Orientation | Contact Material | Current Rating (Amps) | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish - Mating | Connector Type | Color | Voltage Rating | Shielding | Material Flammability Rating | Insert Material | Shell Size - Insert | Mounting Type | Shell Finish | Applications | Contact Finish Thickness - Mating | Shell Material | Primary Material | Ingress Protection | Backshell Material, Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Coupling Nut | A | Brass | 4 A | Threaded | 85 °C | -40 C | Gold | Plug Female Sockets | Black Silver | 250 V | Shielded | UL94 V-0 | Polybutylene Terephthalate (PBT) | M12-3 | Free Hanging (In-Line) | Nickel | Industrial Medical | Flash | Brass | Metal | IP67 - Dust Tight Waterproof | |
 NorComp Inc. | Coupling Nut | A | Brass | 4 A | Threaded | 85 °C | -40 C | Gold | Plug Female Sockets | Black Silver | 250 V | Unshielded | UL94 V-0 | Polybutylene Terephthalate (PBT) | M12-3 | Free Hanging (In-Line) | Nickel | Industrial Medical | Flash | Brass | Metal | IP67 - Dust Tight Waterproof | |
 NorComp Inc. | Backshell Coupling Nut Strain Relief | A | Brass | 4 A | Threaded | 85 °C | -40 C | Gold | Plug Female Sockets | Silver | 250 V | UL94 V-0 | Polybutylene Terephthalate (PBT) | M12-3 | Free Hanging (In-Line) | Nickel | Industrial Medical | Flash | Aluminum Alloy | Metal | IP67 - Dust Tight Waterproof | Aluminum Alloy Nickel |
