EBG Series
Manufacturer: Adam Tech
Beta
⌘K

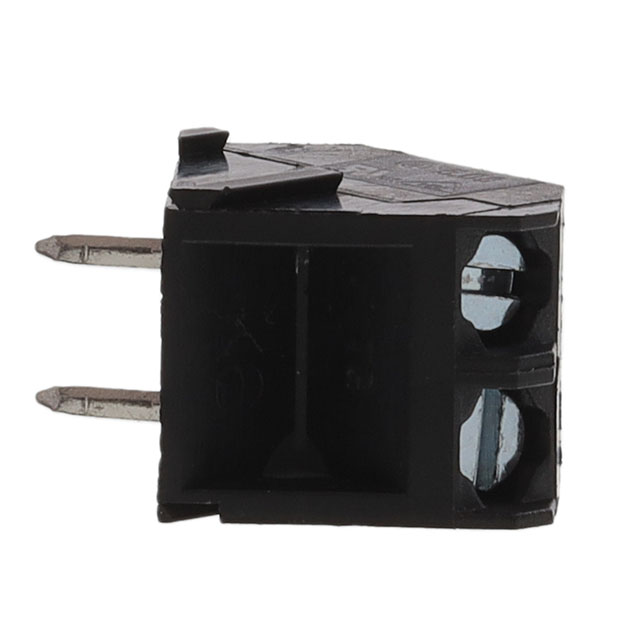

EUROBLOCK 2POS
| Part | Torque - Screw | Torque - Screw | Operating Temperature [Max] | Operating Temperature [Min] | Screw Thread | Clamp Material - Plating | Housing Material | Screw Material - Plating | Number of Levels | Voltage | Mounting Type | Color | Features | Pitch | Pitch | Positions Per Level | Current | Wire Termination | Mating Orientation | Mating Orientation | Wire Gauge [Max] | Wire Gauge [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | 3.5 Lb-In | 0.4 Nm | 115 °C | -40 C | M2.5 | Brass - Nickel Plated | Thermoplastic | Steel - Zinc Plated | 1 | 300 VDC | Through Hole | Black | Interlocking (Side) | 5.08 mm | 0.2 in | 2 | 15 A | Screw - Leaf Spring Wire Guard | 135 ° | 45 ° | 24 AWG | 12 AWG |
