2314844 Series

Catalog

CONN RCPT 4 POS 0.079" GOLD SMD

Part	Current Rating (Amps)	Connector Type	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Row Spacing - Mating	Row Spacing - Mating	Voltage Rating	Contact Shape	Mounting Type	Contact Finish - Mating	Number of Positions Loaded	Insulation Material	Contact Finish - Post	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Color	Number of Positions	Termination	Number of Rows	Features	Insulation Height	Insulation Height	Fastening Type	Number of Positions

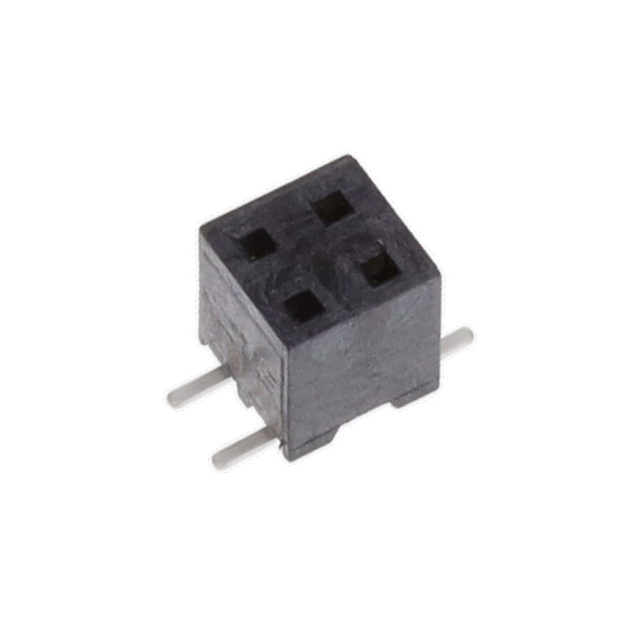

TE Connectivity Raychem Cable Protection 2314844-4	2 A	Receptacle Bottom or Top Entry	Female Socket	125 °C	-40 °C	Phosphor Bronze	0.079 in	2 mm	125 VDC	Square	Surface Mount	Gold	All	Liquid Crystal Polymer (LCP)	Tin	UL94 V-0	3.94 µin	0.1 µm	0.3 µm	12 µin	0.079 in	2 mm	Black	4	Solder	2	Pick and Place	0.177 in	4.5 mm	Push-Pull

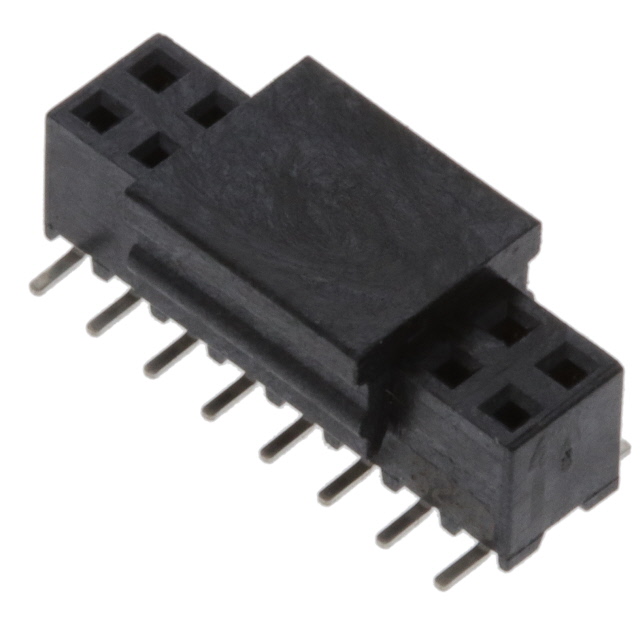

TE Connectivity Raychem Cable Protection 1-2314844-6	2 A	Receptacle Bottom or Top Entry	Female Socket	125 °C	-40 °C	Phosphor Bronze	0.079 in	2 mm	125 VDC	Square	Surface Mount	Gold	All	Liquid Crystal Polymer (LCP)	Tin	UL94 V-0	3.94 µin	0.1 µm	0.3 µm	12 µin	0.079 in	2 mm	Black		Solder	2	Pick and Place	0.177 in	4.5 mm	Push-Pull	16
