UC15 Series

Manufacturer: Quectel

Catalog

RF TXRX MODULE CELL SMD

Part	Serial Interfaces	Operating Temperature [Max]	Operating Temperature [Min]	Protocol	Current - Transmitting	Current - Receiving	Sensitivity	Mounting Type	Antenna Type	RF Family/Standard	Voltage - Supply [Max]	Voltage - Supply [Min]	Frequency	Data Rate	Power - Output	Package / Case
Quectel UC15EC-128-BT	ADC PCM UART USB	85 °C	-40 C	EDGE GPRS GSM UMTS WCDMA	1.8 mA	1.8 mA	-110 dBm	Surface Mount	Antenna Not Included	Cellular	4.3 V	3.3 V	1.8 GHz 2.1 GHz 900 MHz	3.6 Mbps	33 dBm	Module

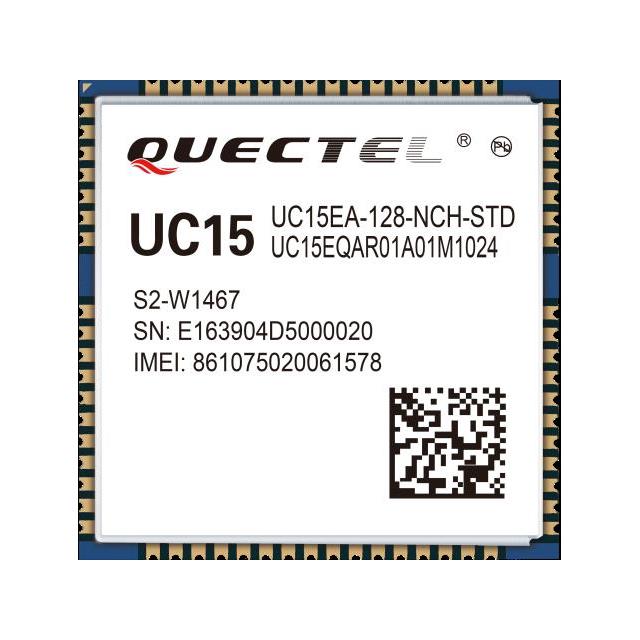

Quectel UC15ABTEA-128-STD	ADC PCM UART USB	85 °C	-40 C	EDGE GPRS GSM UMTS WCDMA	1.8 mA	1.8 mA	-110 dBm	Surface Mount	Antenna Not Included	Cellular	4.3 V	3.3 V	1.8 GHz 1.9 GHz 850 MHz 900 MHz	3.6 Mbps	33 dBm	Module
Quectel UC15EBTEA-128-STD	ADC PCM UART USB	85 °C	-40 C	EDGE GPRS GSM UMTS WCDMA	1.8 mA	1.8 mA	-110 dBm	Surface Mount	Antenna Not Included	Cellular	4.3 V	3.3 V	1.8 GHz 2.1 GHz 900 MHz	3.6 Mbps	33 dBm	Module

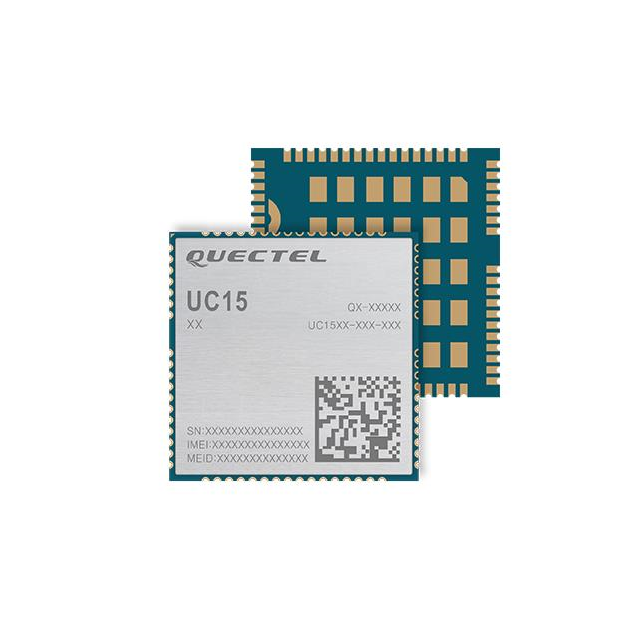

Quectel UC15AB-128-STD	ADC PCM UART USB	85 °C	-40 C	EDGE GPRS GSM UMTS WCDMA	1.8 mA	1.8 mA	-110 dBm	Surface Mount	Antenna Not Included	Cellular	4.3 V	3.3 V	1.8 GHz 1.9 GHz 850 MHz 900 MHz	3.6 Mbps	33 dBm	Module
