RGW40TS65D Series
High-Speed Fast Switching Type, 650V 20A, FRD Built-in, TO-247N, Field Stop Trench IGBT
Manufacturer: Rohm Semiconductor
Catalog
High-Speed Fast Switching Type, 650V 20A, FRD Built-in, TO-247N, Field Stop Trench IGBT
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Td (on/off) @ 25°C | Current - Collector Pulsed (Icm) | Power - Max [Max] | Vce(on) (Max) @ Vge, Ic | Package / Case | IGBT Type | Reverse Recovery Time (trr) | Test Condition | Voltage - Collector Emitter Breakdown (Max) | Mounting Type | Supplier Device Package | Gate Charge | Switching Energy | Current - Collector (Ic) (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

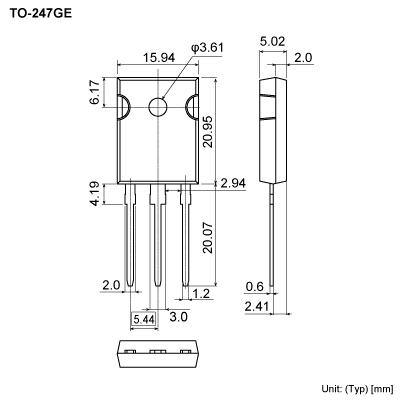

 Rohm Semiconductor | -40 C | 175 °C | 33 ns 76 ns | 80 A | 136 W | 1.9 V | TO-247-3 | Trench Field Stop | 92 ns | 10 Ohm 15 V 20 A 400 V | 650 V | Through Hole | TO-247GE | 59 nC | 300 µJ 330 µJ | 40 A |
Key Features
• Low Collector - Emitter Saturation Voltage, High Speed Switching, Low Switching Loss & Soft Switching, Built in Very Fast & Soft Recovery FRD, Pb - free Lead Plating ; RoHS Compliant
Description
AI
The RGW40TS65D is a fast switching speed IGBT, suitable for PFC, solar inverter, UPS, welding and IH. The RGTV/RGW series is a highly efficient series that is optimized the trade-off relationship between conduction loss and switching speed. In addition, optimizing the internal design allowed to achieve smooth switching characteristics that decrease voltage overshoot. It contributes to reduce the number of parts required along with design load.
