857-076 Series
Manufacturer: EDAC Inc.
Beta
⌘K

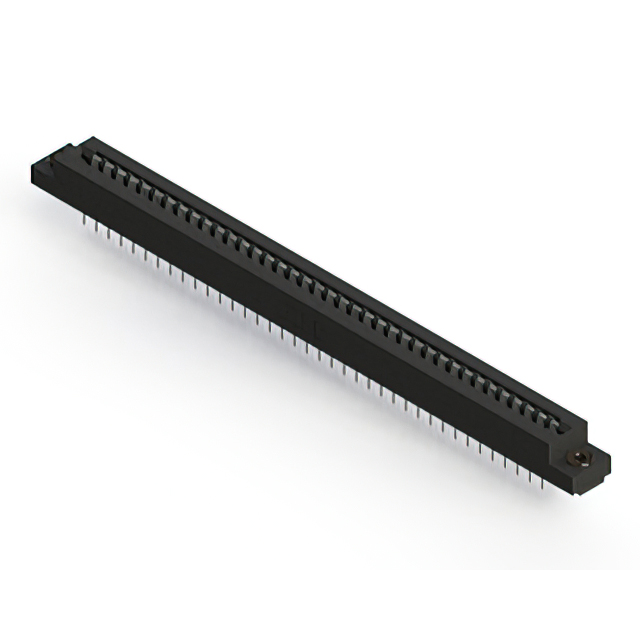

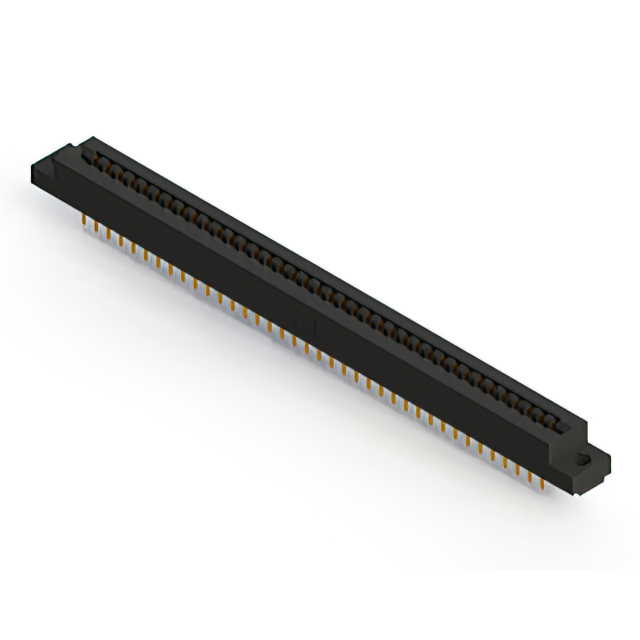

CONN EDGE DUAL FMALE 76POS 0.156
| Part | Termination Rows [custom] | Material - Insulation | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Read Out | Contact Material | Number of Positions | Card Type | Operating Temperature [Max] | Operating Temperature [Min] | Card Thickness [Max] | Card Thickness [Min] | Contact Finish | Mounting Type | Gender | Termination | Number of Rows [custom] | Contact Finish Thickness | Contact Finish Thickness | Pitch | Pitch | Number of Positions/Bay/Row [custom] | Contact Type | Color | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Dual | Copper Alloy | 76 | Non Specified - Dual Edge | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Through Hole | Female | Solder | 2 | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | 38 | Semi Bellows | Black | |
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Dual | Copper Alloy | 76 | Non Specified - Dual Edge | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Through Hole | Female | Solder | 2 | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | 38 | Semi Bellows | Black | ||||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Dual | Copper Alloy | 76 | Non Specified - Dual Edge | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Tin | Board Edge Straddle Mount | Female | Solder | 2 | 3.96 mm | 0.156 in | 38 | Semi Bellows | Black | Card Extender | |||||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Dual | Copper Alloy | 76 | Non Specified - Dual Edge | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Tin | Board Edge Straddle Mount | Female | Solder | 2 | 3.96 mm | 0.156 in | 38 | Semi Bellows | Black | Card Extender | ||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Dual | Copper Alloy | 76 | Non Specified - Dual Edge | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Tin | Through Hole | Female | Solder | 2 | 3.96 mm | 0.156 in | 38 | Semi Bellows | Black | |||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Dual | Copper Alloy | 76 | Non Specified - Dual Edge | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Through Hole | Female | Solder | 2 | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | 38 | Semi Bellows | Black | |
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Dual | Copper Alloy | 76 | Non Specified - Dual Edge | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Tin | Through Hole | Female | Solder | 2 | 3.96 mm | 0.156 in | 38 | Semi Bellows | Black | |||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Dual | Copper Alloy | 76 | Non Specified - Dual Edge | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Through Hole | Female | Solder | 2 | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | 38 | Semi Bellows | Black | |
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Dual | Copper Alloy | 76 | Non Specified - Dual Edge | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Tin | Through Hole | Female | Wire Wrap | 2 | 3.96 mm | 0.156 in | 38 | Semi Bellows | Black | |||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Flush Mount M3 Threaded Insert Top Opening | Dual | Copper Alloy | 76 | Non Specified - Dual Edge | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Tin | Board Edge Straddle Mount | Female | Solder | 2 | 3.96 mm | 0.156 in | 38 | Semi Bellows | Black | Card Extender |
