5905C Series

Catalog

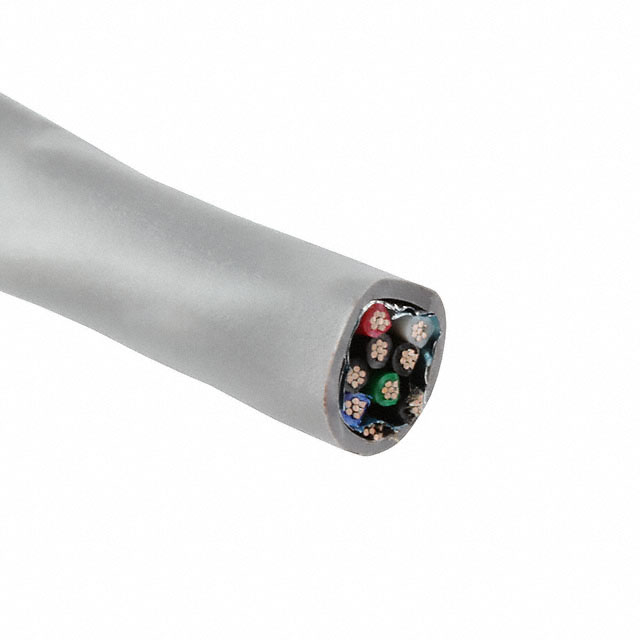

MULTIPAIR CABLE, COMMUNICATION, SHIELDED, 4 PAIR, 22 AWG, 0.23 MM², 500 FT, 152.4 M

Part	Shield Material	Shield Coverage	Number of Conductors	Voltage	Ratings	Conductor Material	Features	Conductor Strand	Jacket (Insulation) Material	Operating Temperature [Max]	Operating Temperature [Min]	Wire Gauge	Shield Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length	Jacket Color	Cable Type	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
ALPHA WIRE 5905C SL002	Aluminum	100 %	8	300 VDC	UL Style 2464	Copper Tinned	Drain Wire	Solid	Poly-Vinyl Chloride (PVC)	80 °C	-20 ░C	22 AWG	Foil	0.813 mm	0.032 in	152.4 m	500 ft	Slate	Multi-Pair	Poly-Vinyl Chloride (PVC)	6.93 mm	0.273 "
ALPHA WIRE 5905C SL001	Aluminum	100 %	8	300 VDC	UL Style 2464	Copper Tinned	Drain Wire	Solid	Poly-Vinyl Chloride (PVC)	80 °C	-20 ░C	22 AWG	Foil	0.813 mm	0.032 in	304.8 m	1000 ft	Slate	Multi-Pair	Poly-Vinyl Chloride (PVC)	6.93 mm	0.273 "
