LCM-H01601 Series

Catalog

LCD MOD 16DIG 16X1 TRANSFLECTIVE

Part	Dot Size [z]	Dot Size [y]	Backlight	Number of Characters	Character Size [z]	Character Size [y]	Display Format [x]	Display Format [y]	Display Mode	Voltage - Supply [Min]	Voltage - Supply [Max]	Outline L x W x H [z]	Outline L x W x H [y]	Outline L x W x H [x]	Operating Temperature [Min]	Operating Temperature [Max]	Character Format [x]	Character Format [y]	Viewing Area [y]	Viewing Area [x]	Display Type	Interface

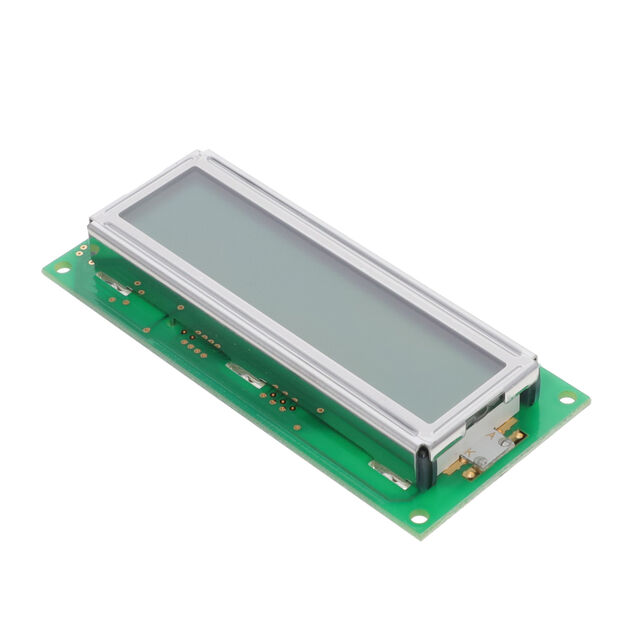

Lumex Opto/Components Inc. LCM-H01601DSF	0.75 mm	0.55 mm	LED	16	6.56 mm	3.07 mm	16	1	Transflective	4.7 V	5.3 V	12.7 mm	36 mm	80 mm	-20 ░C	70 °C	5 Dots	8 Dots	16 mm	66 mm	STN - Super-Twisted Nematic	8-Bit Parallel

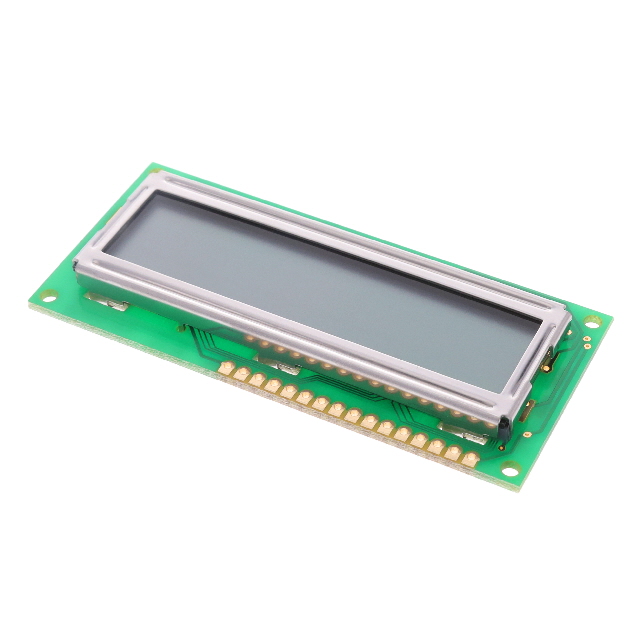

Lumex Opto/Components Inc. LCM-H01601DTR	0.75 mm	0.55 mm		16	6.56 mm	3.07 mm	16	1	Reflective	4.7 V	5.3 V	12.7 mm	36 mm	80 mm	-20 ░C	70 °C	5 Dots	8 Dots	16 mm	66 mm	TN - Twisted Nematic	8-Bit Parallel
Lumex Opto/Components Inc. LCM-H01601DSR	0.75 mm	0.55 mm		16	6.56 mm	3.07 mm	16	1	Reflective	4.7 V	5.3 V	12.7 mm	36 mm	80 mm	-20 ░C	70 °C	5 Dots	8 Dots	16 mm	66 mm	STN - Super-Twisted Nematic	8-Bit Parallel
