R0603 Series

Manufacturer: OptiFuse

Catalog

PTC RESET FUSE 15V 100MA 0603

Part	Approval Agency	Package / Case	Time to Trip	Current - Max [Max]	Thickness (Max) [Max]	Thickness (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Mounting Type	Resistance - Initial (Ri) (Min) [Min]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Resistance - Post Trip (R1) (Max) [Max]	Voltage - Max [Max]	Current - Trip (It)	Current - Hold (Ih) (Max) [Max]

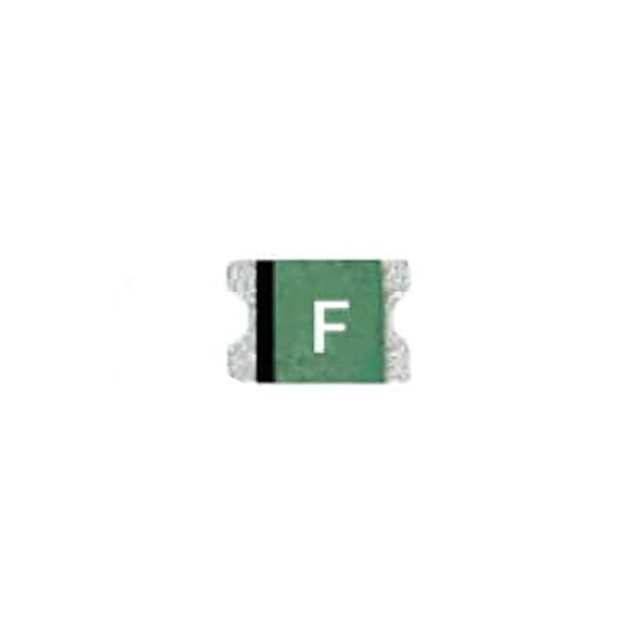

OptiFuse R0603-010-R	cULus TUV	0603 (1608 Metric) Concave	100 ms	40 A	0.75 mm	0.03 in	85 °C	-40 C	Polymeric	Surface Mount	900 mOhms	0.73 mm	0.029 in	1.6 mm	0.063 "	8 Ohms	15 V	250 mA	100 mA

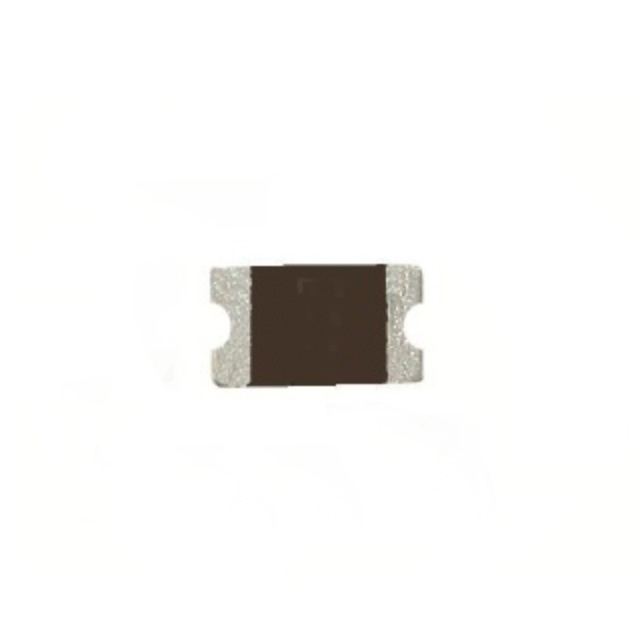

OptiFuse R0603LR-035-R	TUV UL	0603 (1608 Metric) Concave	100 ms	100 A	0.75 mm	0.03 in	85 °C	-40 C	Polymeric	Surface Mount	200 mOhms	0.73 mm	0.029 in	1.6 mm	0.063 "	1 Ohms	6 V	750 mA	350 mA
