BZ-3RW Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SWITCH SNAP ACTION SPDT 15A 125V

Part	Current Rating (Amps)	Voltage Rating - AC	Voltage Rating - DC	Features	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Overtravel	Overtravel	Termination Style	Mechanical Life	Operating Position	Operating Position	Pretravel	Pretravel	Release Force	Mounting Type	Circuit	Actuator Type	Operating Force [Max]	Operating Force [Min]	Differential Travel	Differential Travel	Operating Force	Ingress Protection	Current Rating (Amps)	Overtravel

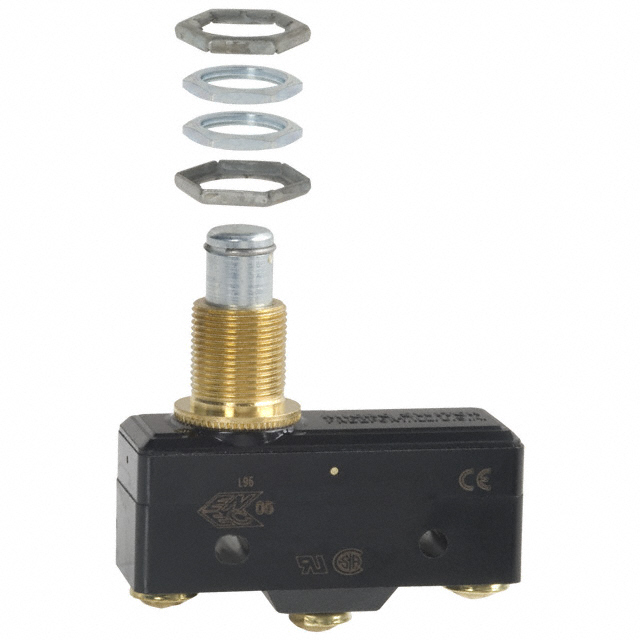

Honeywell Sensing and Productivity Solutions BZ-3RQ1-A2	15 A 500 mA	125 V	125 VDC	Steel Plunger	On-Mom	85 °C	-55 °C	5.6 mm	0.219 in	Screw Terminal	20000000 Cycles	0.859 in	21.8 mm	0.02 in	0.5 mm	113 gf	Chassis Mount	SPDT	Overtravel Plunger
Honeywell Sensing and Productivity Solutions BZ-3RDS152T-S	10 A 500 mA	125 V	125 VDC	Steel Plunger	On-Mom	85 °C	-55 °C	1.5 mm	0.06 "	Screw Terminal	20000000 Cycles	1.11 in	28.2 mm			113 gf	Chassis Mount	SPDT	Round (Pin Plunger)	567 gf	340 gf

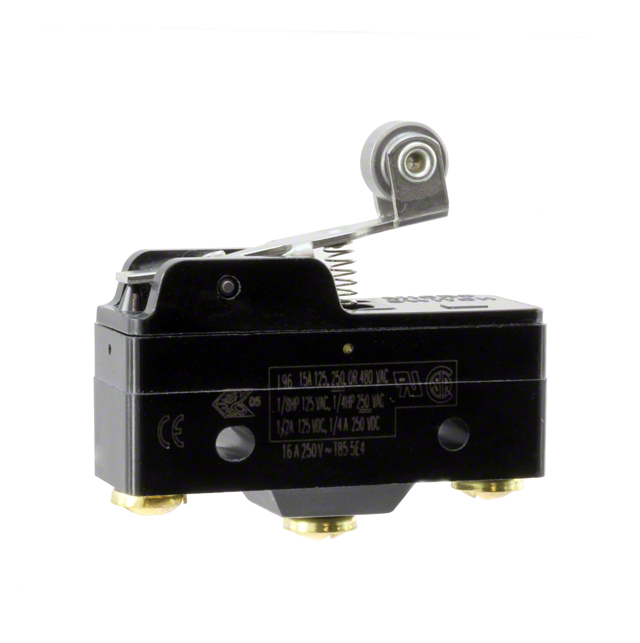

Honeywell Sensing and Productivity Solutions BZ-3RW822-A2	15 A 500 mA	125 V	125 VDC		On-Mom	85 °C	-55 °C	2.4 mm	0.094 in	Screw Terminal	20000000 Cycles	1.188 in	30.2 mm				Chassis Mount	SPDT	Lever Roller			0.03 in	0.76 mm	184 gf

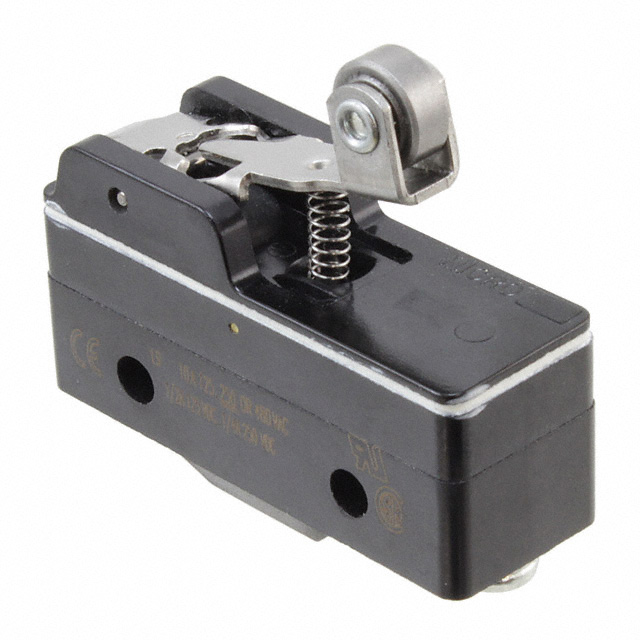

Honeywell Sensing and Productivity Solutions BZ-3RW8221555513T	10 A 500 mA	125 V	125 VDC		On-Mom	85 °C	-55 °C	2.4 mm	0.094 in	Screw Terminal	20000000 Cycles	1.188 in	30.2 mm				Chassis Mount	SPDT	Lever Roller			0.03 in	0.76 mm	184 gf	IP64 - Dust Tight Water Resistant
Honeywell Sensing and Productivity Solutions BZ-3AT		125 V	125 VDC		On-Mom	85 °C	-55 °C	0.13 mm	0.005 in	Screw Terminal	20000000 Cycles	0.625 in	15.9 mm	0.03 in	0.8 mm	113 gf	Chassis Mount	SPDT	Round (Pin Plunger)	737 gf	454 gf	0.005 in	0.13 mm			15A 1A
Honeywell Sensing and Productivity Solutions BZ-3R208
Honeywell Sensing and Productivity Solutions BZ-3RW80552-A2-S	15 A 500 mA	125 V	125 VDC		On-Mom	85 °C	-55 °C	0.172 in		Screw Terminal	20000000 Cycles	1.188 in	30.2 mm			21 gf	Chassis Mount	SPDT	Lever Roller			0.06 "	1.5 mm	113 gf	Splash Proof		4.4 mm
Honeywell Sensing and Productivity Solutions BZ-3YDT	5 A	250 V		Steel Plunger	On-Mom	85 °C	-55 °C	1.6 mm	0.062 in	Screw Terminal	20000000 Cycles	0.835 in	21.2 mm	0.03 in	0.8 mm	113 gf	Chassis Mount	SPDT	Round (Pin Plunger)	737 gf	454 gf	0.006 in	0.15 mm
Honeywell Sensing and Productivity Solutions BZ-3RDS15T-S	10 A 500 mA	125 V	125 VDC	Steel Plunger	On-Mom	85 °C	-55 °C	1.5 mm	0.06 "	Screw Terminal	20000000 Cycles	1.11 in	28.2 mm			113 gf	Chassis Mount	SPDT	Round (Pin Plunger)	567 gf	340 gf
Honeywell Sensing and Productivity Solutions BZ-3RW82134-A2	15 A 500 mA	125 V	125 VDC		On-Mom	85 °C	-55 °C	3.96 mm	0.156 in	Screw Terminal	20000000 Cycles	1.188 in	30.2 mm			21 gf	Chassis Mount	SPDT	Lever Roller					99 gf
