FUSB301A Series

Autonomous USB Type-C Controller with Configurable I2C Address

Catalog

Autonomous USB Type-C Controller with Configurable I2C Address

Part	Protocol	Interface	Package / Case	Supplier Device Package [x]	Supplier Device Package	Supplier Device Package [y]	Standards	Function	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Type	Utilized IC / Part	Supplied Contents	Current - Supply

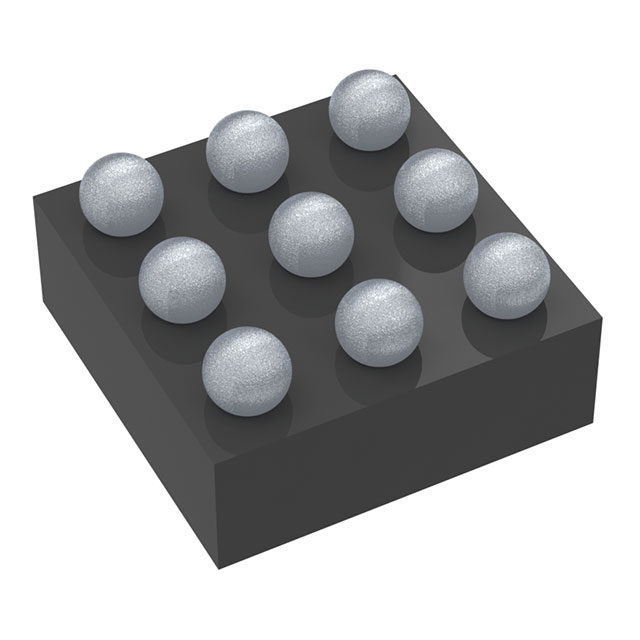

ON Semiconductor FUSB300CUCX	USB	USB	9-UFBGA WLCSP	1.22	9-WLCSP	1.22	USB 3.1	Controller	3 V	3.5 V	-40 °C	80 C
ON Semiconductor FUSB301AGEVB								USB Type-C®					Interface	FUSB301A	Board(s)
ON Semiconductor FUSB301ATMX	USB	I2C USB	12-XFQFN		12-UTMLP (1.6x1.6)			Controller			-40 °C	85 °C
ON Semiconductor FUSB301TMX	USB	I2C USB	10-XFQFN				USB 2.0	Controller			-40 °C	85 °C				356 µA

Catalog

Autonomous USB Type-C Controller with Configurable I2C Address

Key Features

• Fully Autonomous Type-C Controller Supports Type-C Version 1.1

• VDDOperating Range, 3.0 V- 5.5 V

• Low Disable Power: ICC= 2.0 µA (Max.)

• Low Standby Power: ICC= 7.0 µA (Max.)

• DRP Mode with Optional Accessory Support

• Configurable I2C Address

• Capable of Supporting Try.SNK and Try.SRC

• Dead Battery Support (UFP Support when No Power Applied)

• 2 kV HBM ESD Protection

• Small Packaging, 12 Lead TMLP (1.6 mm x 1.6 mm x 0.375 mm)

Description

The FUSB301A is a fully autonomous Type-C controller optimized for <15 W applications. The FUSB301A offers CC logic detection for Source Mode, Sink Mode, DRP, accessory detection support, and dead battery support. The FUSB301A features configurable I2C address to support multiple ports per system. The FUSB301A features an extremely low power disable mode as well as low power during normal operation. It is available in an ultra thin, 12-Lead TMLP package.
