54202 Series

Catalog

CONN HEADER SMD 28POS 2.54MM

...

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Material Flammability Rating	Contact Material	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating [x]	Contact Length - Mating	Termination	Shrouding	Features	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Contact Type	Current Rating (Amps)	Mounting Type	Contact Shape	Connector Type	Number of Rows	Fastening Type	Insulation Color	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating [x]	Contact Finish - Mating	Number of Positions	Number of Positions Loaded
Amphenol ICC (FCI) 54202-T0814ALF	2.54 çm	100 çin	Tin	UL94 V-0	Phosphor Bronze	All	-65 ░C	130 °C	0.23 in	5.84 mm	Solder	Unshrouded	Pick and Place	28	2.54 µm	100 µin	0.1 in	2.54 mm	Male Pin	3 A	Surface Mount	Square	Header	2	Push-Pull	Black	0.1 in	2.54 mm	2.54 mm	0.1 in
Amphenol ICC (FCI) 54202-G3018LF	0.76 Ám	30 Áin	Tin	UL94 V-0	Phosphor Bronze	All	-65 ░C	130 °C	0.318 "		Solder	Unshrouded		36	2.54 µm	100 µin	0.1 in	2.54 mm	Male Pin	3 A	Surface Mount	Square	Header	2	Push-Pull	Black	0.1 in	2.54 mm	2.54 mm	0.1 in	8.08 mm	Gold or Gold GXT™
Amphenol ICC (FCI) 54202-S3010LF	0.38 µm	15 µin	Tin	UL94 V-0	Phosphor Bronze	All	-65 ░C	130 °C	0.318 "		Solder	Unshrouded		20	2.54 µm	100 µin	0.1 in	2.54 mm	Male Pin	3 A	Surface Mount	Square	Header	2	Push-Pull	Black	0.1 in	2.54 mm	2.54 mm	0.1 in	8.08 mm	Gold or Gold GXT™

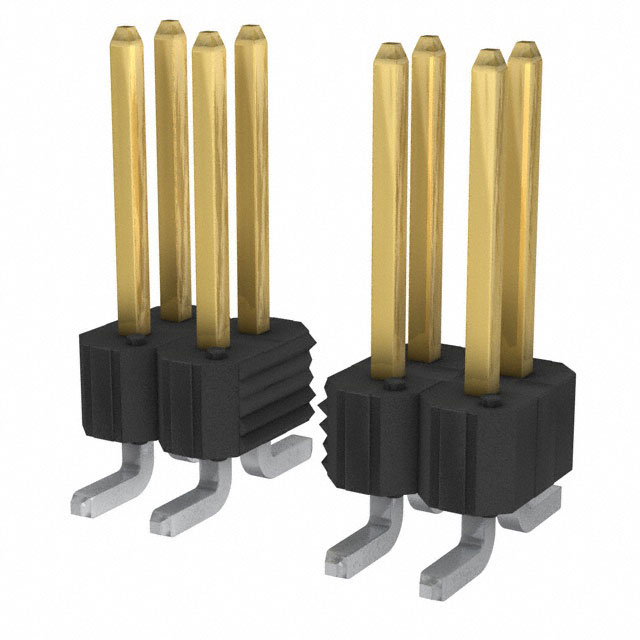

Amphenol ICC (FCI) 54202-T30-08	2.54 çm	100 çin		UL94 V-0	Phosphor Bronze	All			0.318 "		Solder	Unshrouded					0.1 in	2.54 mm	Male Pin		Surface Mount	Square	Header	2	Push-Pull	Black	0.1 in	2.54 mm	2.54 mm	0.1 in	8.08 mm		16

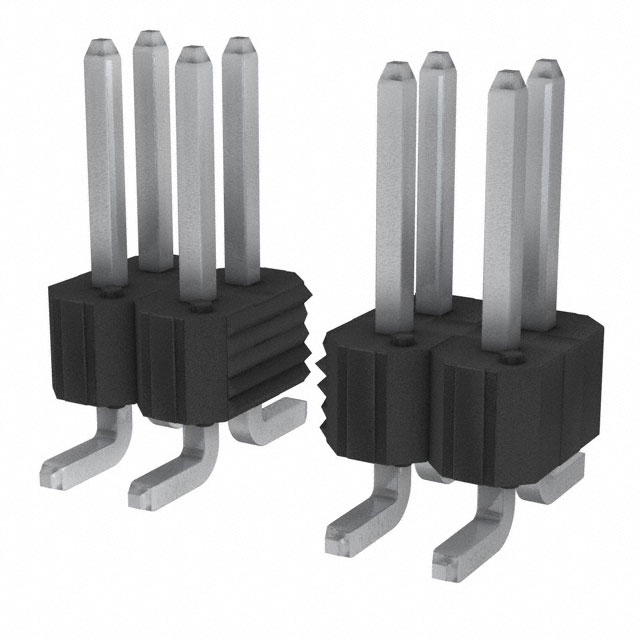

Amphenol ICC (FCI) 54202-T08-18	2.54 çm	100 çin		UL94 V-0	Phosphor Bronze	All			0.23 in	5.84 mm	Solder	Unshrouded		36			0.1 in	2.54 mm	Male Pin		Surface Mount	Square	Header	2	Push-Pull	Black	0.1 in	2.54 mm	2.54 mm	0.1 in
Amphenol ICC (FCI) 54202-T08-06A	2.54 çm	100 çin		UL94 V-0	Phosphor Bronze	All	-65 ░C	130 °C	0.23 in	5.84 mm	Solder	Unshrouded	Pick and Place	12			0.1 in	2.54 mm	Male Pin	3 A	Surface Mount	Square	Header	2	Push-Pull	Black	0.1 in	2.54 mm	2.54 mm	0.1 in
Amphenol ICC (FCI) 54202-T0814LF	2.54 çm	100 çin	Tin	UL94 V-0	Phosphor Bronze	All	-65 ░C	130 °C	0.23 in	5.84 mm	Solder	Unshrouded		14	2.54 µm	100 µin	0.1 in	2.54 mm	Male Pin	3 A	Surface Mount	Square	Header	2	Push-Pull	Black	0.1 in	2.54 mm	2.54 mm	0.1 in
Amphenol ICC (FCI) 54202-S0806LF	0.38 µm	15 µin	Tin	UL94 V-0	Phosphor Bronze	All	-65 ░C	130 °C	0.23 in	5.84 mm	Solder	Unshrouded		12	2.54 µm	100 µin	0.1 in	2.54 mm	Male Pin	3 A	Surface Mount	Square	Header	2	Push-Pull	Black	0.1 in	2.54 mm	2.54 mm	0.1 in		Gold or Gold GXT™
Amphenol ICC (FCI) 54202-T0808AB07LF	2.54 çm	100 çin	Tin	UL94 V-0	Phosphor Bronze		-65 ░C	130 °C	0.23 in	5.84 mm	Solder	Unshrouded	Pick and Place		2.54 µm	100 µin	0.1 in	2.54 mm	Male Pin	3 A	Surface Mount	Square	Header	2	Push-Pull	Black	0.1 in	2.54 mm	2.54 mm	0.1 in			16	7
Amphenol ICC (FCI) 54202-G0804TLF	0.76 Ám	30 Áin	Tin	UL94 V-0	Phosphor Bronze	All	-65 ░C	130 °C	0.23 in	5.84 mm	Solder	Unshrouded		8	2.54 µm	100 µin	0.1 in	2.54 mm	Male Pin	3 A	Surface Mount	Square	Header	2	Push-Pull	Black	0.1 in	2.54 mm	2.54 mm	0.1 in		Gold or Gold GXT™
