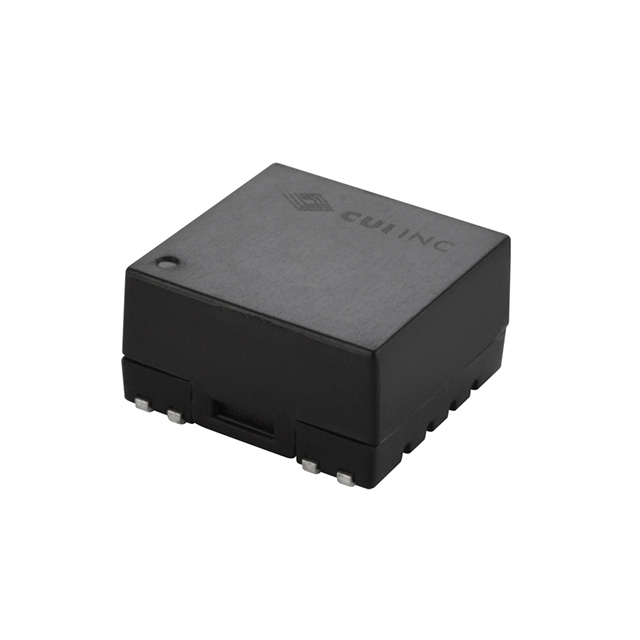

PQME3 Series

Manufacturer: CUI Inc.

Catalog

DC DC CONVERTER 24V 3W

Part	Approval Agency	Voltage - Input (Max) [Max]	Power (Watts)	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage - Input (Min) [Min]	Voltage - Output 1	Voltage - Isolation	Current - Output (Max) [Max]	Number of Outputs	Standard Number	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Type	Efficiency
CUI Inc. PQME3-D24-S24-M	EN UL	36 V	3 W	ITE (Commercial)	-40 °C	85 °C	Surface Mount	9 V	24 V	1.5 kV	125 mA	1	55024 55032 Class A 60950-1	14-SMD Module 7 Leads	0.76 "	0.71 in	0.4 "	10.2 mm	19.2 mm	18.1 mm	Isolated Module
CUI Inc. PQME3-D24-S9-M	UL	36 V	3 W	ITE (Commercial)	-40 °C	85 °C	Surface Mount	9 V	9 V	1.5 kV	333 mA	1	60950-1	14-SMD Module 7 Leads	0.76 "	0.71 in	0.4 "	10.2 mm	19.2 mm	18.1 mm	Isolated Module	80 %
CUI Inc. PQME3-D24-S12-M	EN UL	36 V	3 W	ITE (Commercial)	-40 °C	85 °C	Surface Mount	9 V	12 V	1.5 kV	250 mA	1	55024 55032 Class A 60950-1	14-SMD Module 7 Leads	0.76 "	0.71 in	0.4 "	10.2 mm	19.2 mm	18.1 mm	Isolated Module
CUI Inc. PQME3-D48-S3-M		75 V	2.4 W	ITE (Commercial)	-40 °C	85 °C	Surface Mount	18 V	3.3 V	1.5 kV	728 mA	1		14-SMD Module 7 Leads	0.76 "	0.71 in	0.4 "	10.2 mm	19.2 mm	18.1 mm	Isolated Module	75 %
CUI Inc. PQME3-D24-S9-M-TR	UL	36 V	3 W	ITE (Commercial)	-40 °C	85 °C	Surface Mount	9 V	9 V	1.5 kV	333 mA	1	60950-1	14-SMD Module 7 Leads	0.76 "	0.71 in	0.4 "	10.2 mm	19.2 mm	18.1 mm	Isolated Module	80 %
CUI Inc. PQME3-D24-S5-M-TR	EN UL	36 V	3 W	ITE (Commercial)	-40 °C	85 °C	Surface Mount	9 V	5 V	1.5 kV	600 mA	1	55024 55032 Class A 60950-1	14-SMD Module 7 Leads	0.76 "	0.71 in	0.4 "	10.2 mm	19.2 mm	18.1 mm	Isolated Module	80 %
CUI Inc. PQME3-D24-S24-M-TR	EN UL	36 V	3 W	ITE (Commercial)	-40 °C	85 °C	Surface Mount	9 V	24 V	1.5 kV	125 mA	1	55024 55032 Class A 60950-1	14-SMD Module 7 Leads	0.76 "	0.71 in	0.4 "	10.2 mm	19.2 mm	18.1 mm	Isolated Module
CUI Inc. PQME3-D24-S3-M		36 V	2.4 W	ITE (Commercial)	-40 °C	85 °C	Surface Mount	9 V	3.3 V	1.5 kV	728 mA	1		14-SMD Module 7 Leads	0.76 "	0.71 in	0.4 "	10.2 mm	19.2 mm	18.1 mm	Isolated Module	75 %
CUI Inc. PQME3-D24-S12-M-TR	EN UL	36 V	3 W	ITE (Commercial)	-40 °C	85 °C	Surface Mount	9 V	12 V	1.5 kV	250 mA	1	55024 55032 Class A 60950-1	14-SMD Module 7 Leads	0.76 "	0.71 in	0.4 "	10.2 mm	19.2 mm	18.1 mm	Isolated Module
CUI Inc. PQME3-D24-S5-M	EN UL	36 V	3 W	ITE (Commercial)	-40 °C	85 °C	Surface Mount	9 V	5 V	1.5 kV	600 mA	1	55024 55032 Class A 60950-1	14-SMD Module 7 Leads	0.76 "	0.71 in	0.4 "	10.2 mm	19.2 mm	18.1 mm	Isolated Module	80 %
