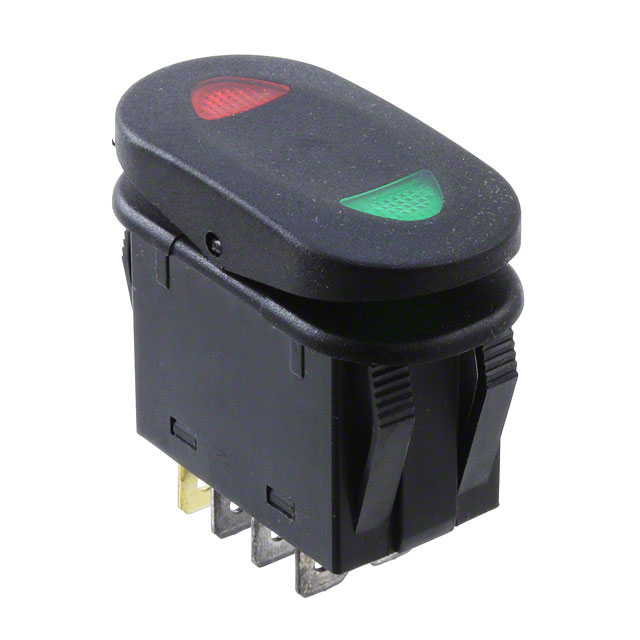

KMD3CMB8 Series
Manufacturer: ZF Electronics
Beta
⌘K
SWITCH ROCKER DPDT 20A 125V
| Part | Mechanical Life | Electrical Life | Ingress Protection | Circuit | Actuator Marking | Current Rating (Amps) | Mounting Type | Illumination Type, Color | Switch Function | Termination Style | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Voltage Rating - AC | Actuator Type | Illumination Voltage (Nominal) | Operating Temperature [Max] | Operating Temperature [Min] | Color - Actuator/Cap |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ZF Electronics | 100000 Cycles | 6000 Cycles | IP56 - Dust Protected Water Resistant | DPDT | No Marking | 20 A | Panel Mount Snap-In | Green/Red LED | On-Off-On | Quick Connect - 0.250" (6.3mm) | 21.2 mm | 36.6 mm | 125 V | Flat - Illuminated | 14 VDC | 85 °C | -20 ░C | Black |
