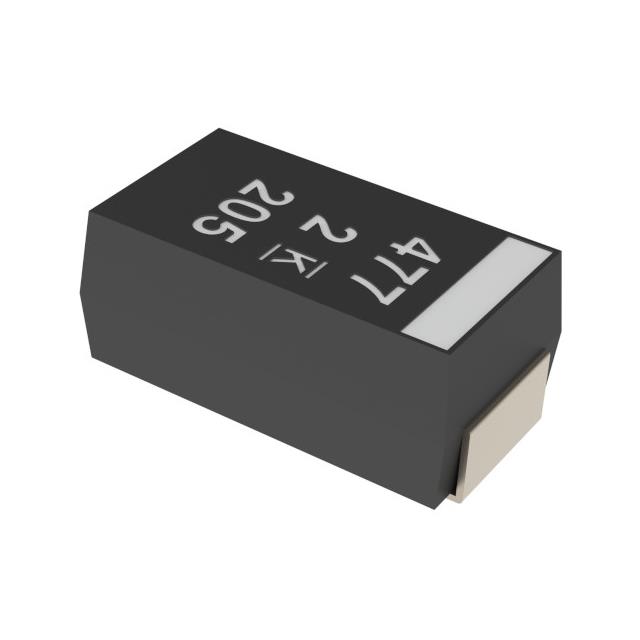

A798D477M Series

Manufacturer: KEMET

Catalog

CAP ALUM POLY 470UF 20% 2.5V SMD

Part	Operating Temperature [Min]	Operating Temperature [Max]	Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Capacitance	Mounting Type	Tolerance	Applications	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Lifetime @ Temp.	Voltage - Rated	Package / Case	Ripple Current @ High Frequency	ESR (Equivalent Series Resistance)
KEMET A798D477M2R5PTE009	-55 C	125 °C	Polymer	0.122 in	3.1 mm	470 µF	Surface Mount	20 %	General Purpose	0.169 "	7.3 mm	0.287 "	4.3 mm	3000 Hrs	2.5 V	2917 (7343 Metric)	5.27 A	9 mOhms
KEMET A798D477M2R5PTE006	-55 C	125 °C	Polymer	0.122 in	3.1 mm	470 µF	Surface Mount	20 %	General Purpose	0.169 "	7.3 mm	0.287 "	4.3 mm	3000 Hrs	2.5 V	2917 (7343 Metric)	6.46 A	6 mOhms
KEMET A798D477M002PTE006	-55 C	125 °C	Polymer	0.122 in	3.1 mm	470 µF	Surface Mount	20 %	General Purpose	0.169 "	7.3 mm	0.287 "	4.3 mm	3000 Hrs	2 VDC	2917 (7343 Metric)	6.46 A	6 mOhms
KEMET A798D477M2R5ATE006	-55 C	125 °C	Polymer	0.122 in	3.1 mm	470 µF	Surface Mount	20 %	General Purpose	0.169 "	7.3 mm	0.287 "	4.3 mm	2000 Hrs	2.5 V	2917 (7343 Metric)	6.46 A	6 mOhms
KEMET A798D477M002PTE009	-55 C	125 °C	Polymer	0.122 in	3.1 mm	470 µF	Surface Mount	20 %	General Purpose	0.169 "	7.3 mm	0.287 "	4.3 mm	3000 Hrs	2 VDC	2917 (7343 Metric)	5.27 A	9 mOhms
KEMET A798D477M002ATE006	-55 C	125 °C	Polymer	0.122 in	3.1 mm	470 µF	Surface Mount	20 %	General Purpose	0.169 "	7.3 mm	0.287 "	4.3 mm	2000 Hrs	2 VDC	2917 (7343 Metric)	6.46 A	6 mOhms
